Ubiquiti Access UA-Intercom

Beschreibung

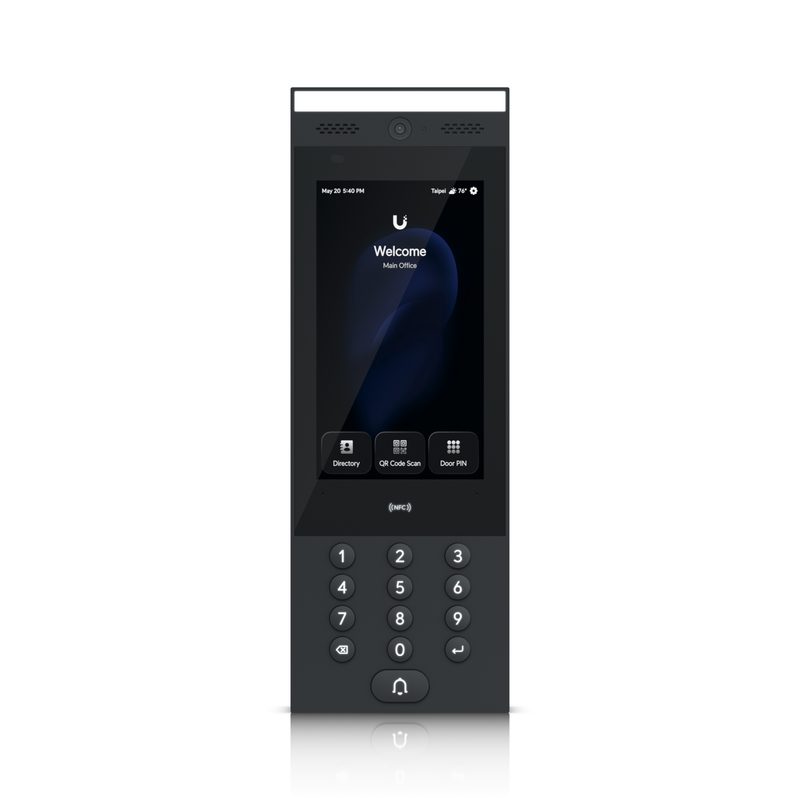

Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.

Technische Daten

Höhe

11,0 cm

Tiefe

38,2 cm

Breite

14,2 cm

Weight

180 g (6.3 oz)

Gewicht

2,002 kg

Mounting

Gooseneck mount, wall mount

Dimensions

324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Hardware: LEDs

Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>

Hardware: Size

177 mm (7") diagonal

Weatherproofing

IP65

Hardware: Buttons

(1) Factory reset

Hardware: Sensors

Proximity sensor ALS sensor

Mounting Material

Powder-coated galvanized steel

Enclosure Material

UV-stabilized polycarbonate with PU coating

Mechanical: Weight

Device: 965 g (2.1 lb) Bracket: 445 g (1 lb)

Hardware: Luminance

Max. 1000 nits (Typical)

Grid overview: Apple

Touch Pass

Grid overview: Sound

Two-Way Audio

Hardware: Resolution

2MP 1200 x 1600 (3:4)

Mechanical: Mounting

Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional)

Grid overview: Display

Touch Display

Hardware: Connectivity

BLE 4.2 NFC

Hardware: Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Hardware: Field of View

H: 79.4°, V: 97.5°, D: 118.2°

Hardware: NFC Frequency

13.56 MHz

UniFi Application Suite

Access

Hardware: Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Hardware: NFC Read Range

< 30 mm (1.18'')

Hardware: NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0

Grid overview: Livestream

Live View

Hardware: Max. Frame Rate

30 FPS

Ambient Operating Humidity

5 to 90% noncondensing

Hardware: UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power

Mechanical: Mount Material

Powder-coated stainless steel

Ambient Storage Temperature

-40 to 70° C (-40 to 158° F)

Grid overview: Weatherproof

Outdoor Exposed

Hardware: Screen Technology

Capacitive multi-touch

Hardware: Screen Orientation

Portrait

Ambient Operating Temperature

-30 to 60° C (-22 to 140° F)

Grid overview: Physical Unlock

Keypad Unlock

Hardware: Networking Interface

(1) GbE RJ45 port

Mechanical: Enclosure Material

Aluminum alloy, UV-stabilized polycarbonate, glass

Software: Software Information

The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Hardware: Indoor and Outdoor Use

Yes

Hardware: Max. Power Consumption

13W

Software: Management Application

Access

Hardware: Supported Voltage Range

48V DC

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: I

Hardware: PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per

Hardware: Ambient Operating Humidity

5 to 90% noncondensing

Hardware: Ambient Operating Temperature

Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F)

Hardware: Document number, and issue date and/or revision le

UA-G3-Intercom, V01
