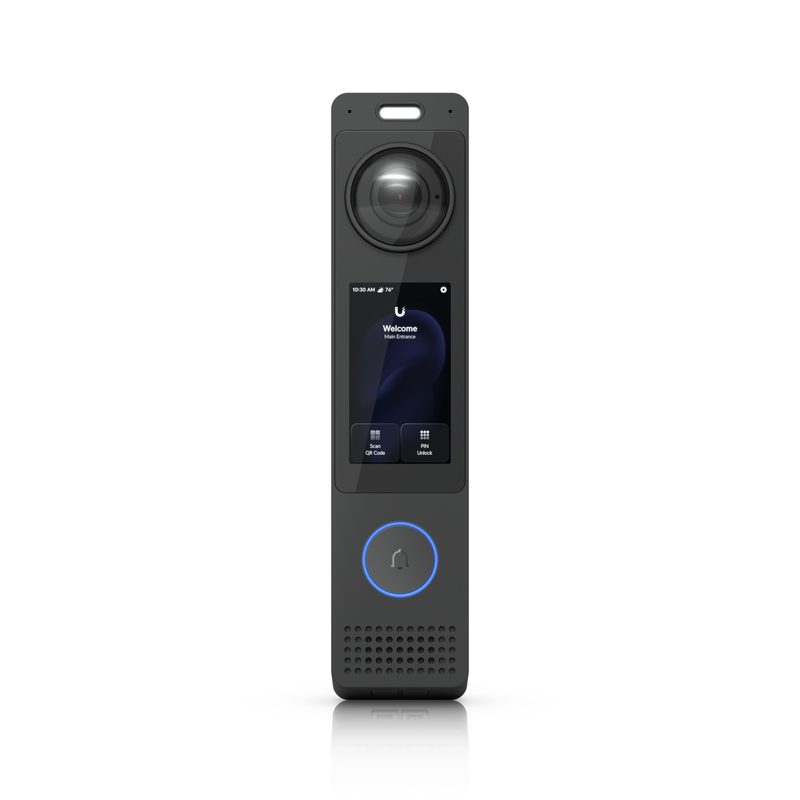

Ubiquiti Access Door Hub Mini

Beschreibung

An intelligent door entry system with native UniFi Protect and UniFi Access integration with a 12MP camera, two-way audio, and a 3" touch display.

Technische Daten

Type

Dry contact

Audio

Two-way audio

Höhe

6,0 cm

Logic

Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short

Tiefe

13,5 cm

Breite

8,0 cm

Rating

Max. 30V DC, 0.1A

Weight

Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz)

Wiring

(1) Lock 12V/NO (red) (1) Lock 12V/COM (black)

Gewicht

0,300 kg

Mounting

Door frame recess mount

Lock Type

Fail secure

Dimensions

220 x 49.3 x 29.6 mm (8.7 x 1.9 x 1.2")

Resolution

Main camera: 12MP Package camera: 8MP

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Current Power

400mA ±10%

Holding Force

1,200 kg (2,645 lb)

Certifications

FCC, IC, CE

Hardware: LEDs

R/G/B/W/Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-Understanding-UniFi-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>

Hardware: Lens

Fixed focal length

Hardware: Size

75 mm (3") diagonal

IR Night Vision

5 m (16 ft)

Input Terminals

(1) Door exit request (1) Door position

Supported Doors

1

Weatherproofing

IP55

Hardware: Button

(1) Ring button (1) Factory reset (1) Tamper switch

Hardware: Sensor

Main camera: 12MP CMOS Package camera: 8MP CMOS

Grid overview: AI

AI Detections

Grid overview: IR

5 m (16 ft)

Hardware: Buttons

(1) Factory reset (1) Dry/Wet switch

Support Door Type

Single door (Wooden/metal)

Tamper Resistance

IK07 LCM IK04

Enclosure Material

Lock body: zinc alloy Front plate/latches: stainless steel

Grid overview: PoE

2 PoE Ports

Maximum User Count

3,000

Mechanical: Weight

360 g (12.7 oz)

Hardware: Luminance

Max. 1000 nits (Typical)

Hardware: Processor

Quad-core Arm® Cortex®-A53 based chip

Grid overview: Apple

Touch Pass

Grid overview: Sound

Two-Way Audio

Hardware: Night Mode

Built-in IR LED illumination and IR cut filter

Hardware: Resolution

Main camera: 12MP, 3024 x 4096 (3:4) or 8MP, 2160 x 3840 (9:16) Package camera: 8MP, 3264 x 2448 (4:3)

Mechanical: Mounting

Wall mount, Gangbox mount plate, 20° wedge mount (Included) Junction box (Optional)

Support Voltage Range

12V DC ±10%

Grid overview: Display

Touch display

Hardware: Connectivity

BLE 4.1 NFC

Hardware: Power Method

PoE+ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Hardware: Field of View

Main camera: H: 100°, V: 136.3°, D: 176.4° (12MP) H: 70.9°, V: 127.5°, D: 147.4° (8MP) Package camera: H: 66°, V: 51.7°, D: 78°

Hardware: PoE Interface

(1) PoE++ input, 50V DC, 1A (2) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)

UniFi Application Suite

Protect Access

Hardware: Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Hardware: Image Settings

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Grid overview: Livestream

Live View

Hardware: Max. Frame Rate

Main camera: 12MP, 20 FPS or 8MP, 30 FPS Package camera: 3 FPS

Ambient Operating Humidity

5 to 90% noncondensing

Hardware: Dry Output Relay

30V DC, 1A

Hardware: Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Hardware: UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power

Hardware: Wet Output Relay

12V DC, 1A

Mechanical: Mount Material

Wall mount: Stainless steel Gangbox mount plate: SGCC steel Gangbox mount cover: Polycarbonate Wedge mount: Aluminum

Ambient Storage Temperature

-20 to 70° C (-4 to 158° F)

Grid overview: Weatherproof

Outdoor Covered

Hardware: Screen Technology

Capacitive multi-touch

Hardware: Screen Orientation

Portrait

Ambient Operating Temperature

-10 to 60° C (14 to 140° F)

Grid overview: Lock Terminals

1 Lock Terminal

Grid overview: Lens Resolution

12 MP Camera

Hardware: Networking Interface

GbE RJ45 port

Mechanical: Enclosure Material

Aluminum

Software: Software Information

The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Grid overview: Additional Inputs

2 Additional Inputs

Hardware: Indoor and Outdoor Use

Yes

Hardware: Max. Power Consumption

18W

Software: Management Application

Access

Hardware: Supported Voltage Range

42—57V DC

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: I

Hardware: PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per

Hardware: UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

Hardware: Ambient Operating Humidity

5 to 90% noncondensing

Hardware: Ambient Operating Temperature

Device: -30 to 50° C (-22 to 122° F) Display: -25 to 50° C (-13 to 122° F)

Hardware: UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: Document number, and issue date and/or revision le

UVC-G6-Pro-Entry, V01
