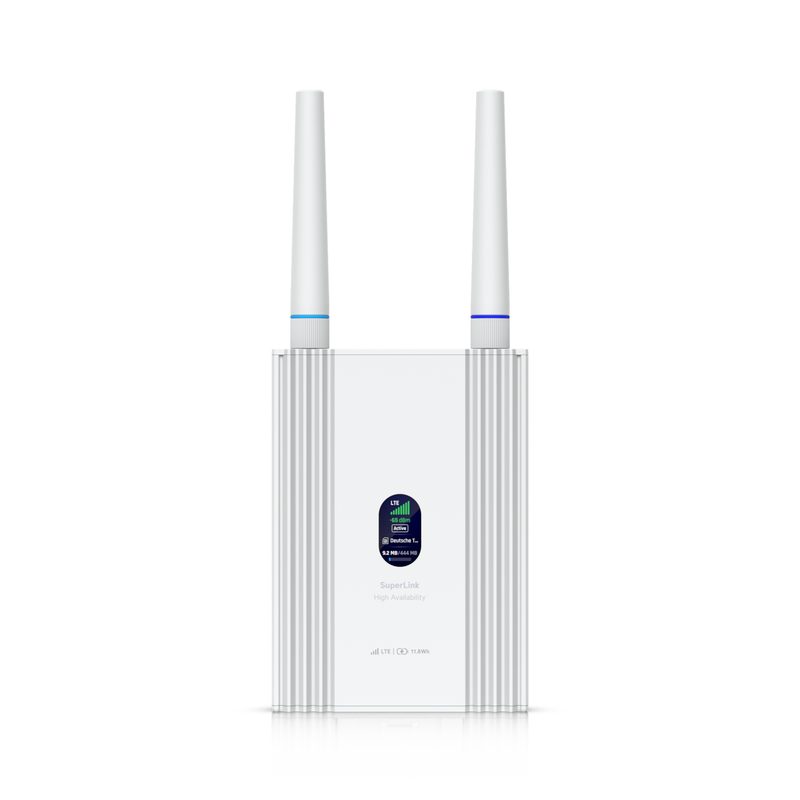

Ubiquiti SuperLink Gateway
Ubiquiti · USL-Gateway · EAN 0810084696347
Lieferzeit auf Anfrage
157,94 €inkl. MwSt., zzgl. Versand
Beschreibung
A SuperLink gateway and Thread border router designed for long-range SuperLink sensors and Thread devices, with LTE connectivity and built-in battery for power backup.
Technische Daten
- Höhe
- 5,0 cm
- Tiefe
- 19,0 cm
- Breite
- 11,0 cm
- Gewicht
- 0,340 kg
- Mounting
- Wall and DIN rail mount
- Dimensions
- With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2")
- Wind Loading
- 25.4 N at 200 km/h (5.7 lbf at 125 mph)
- Hardware: LEDs
- (1) Status: B/W
- Performance: EU
- 860–930 MHz
- Performance: US
- 860–930 MHz
- Weatherproofing
- IP67
- Hardware: Weight
- 179 g (6.3 oz)
- Hardware: Buttons
- (1) Factory reset
- Hardware: Display
- 1.14" status display
- Performance: Thread
- 2400–2480 MHz
- Pole Mount Diameter
- 1–2.17" (25–55 mm)
- Software: Mobile App
- UniFi Protect iOS™ and Android™
- Hardware: Battery Life
- 2.2 h
- Hardware: Power Method
- PoE USB Type-C, 5V, 1A (Optional)
- Performance: Bluetooth
- 2400–2480 MHz
- Performance: SuperLink
- US: 915.6–927.6 MHz EU: 865.1–869.5 MHz JP: 920.5–922.3 MHz
- Hardware: Antenna Cable
- (1) RP-SMA Male (1) RP-N Male
- UniFi Application Suite
- Protect
- Hardware: Certifications
- CE, FCC, IC
- Hardware: Mount Material
- Polycarbonate
- Performance: Connectivity
- Bluetooth® 5.2 SuperLink (Proprietary)
- Software: Web Application
- UniFi Protect
- Hardware: Antenna Connector
- (1) RP-SMA female
- Hardware: Enclosure Material
- Polycarbonate, aluminum alloy
- Hardware: Max. Power Consumption
- 3.4W
- Performance: Networking Interface
- (1) 10/100 MbE RJ45 port
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
