Ubiquiti Video Camera UVC-G6-Pro-360-B
Ubiquiti · UVC-G6-Pro-360-B
sofort lieferbar
637,77 €inkl. MwSt., zzgl. Versand
Beschreibung

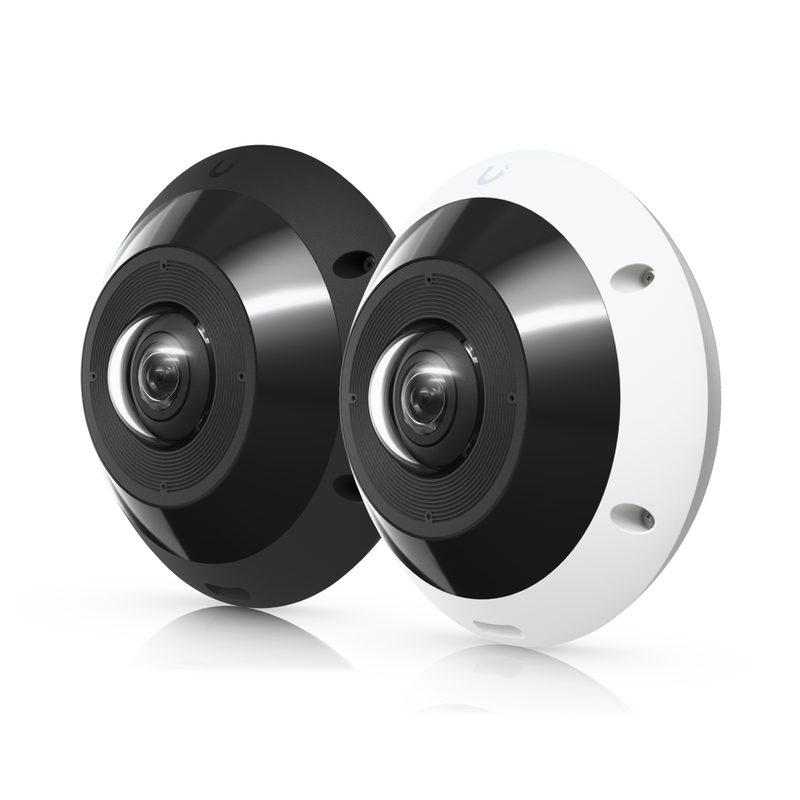

All-weather, vandal-resistant 12MP PoE camera with panoramic 360° coverage, digital pan-tilt-zoom functionality, and smart IR functionality.
Technische Daten
- Audio
- Two-way audio
- Weight
- 245 g (8.6 oz)
- Capacity
- 128/256/512 GB/1 TB
- Mounting
- Surface Mount (Included) AI 360 Junction Box, Camera Dual Mount, Arm Mount (Optional)
- Connector
- (2) Shielding RJ45
- Standards
- TIA/EIA-568-B.2 ISO/IEC 11801
- Dimensions
- ⌀147 x 65.5 (⌀5.8 x 2.6")
- Resistance
- IK08
- Resolution
- 12MP
- Bend Radius
- Min. 50.4 mm (1.98'')
- Form Factor
- microSDXC™
- Speed Class
- Class 10, UHS-I (U1), V10
- Flame Rating
- VW-1 (UL1581)
- Pack Options
- Single Unit
- Compatibility
- UVC-G6-Pro-360
- Field of View
- H: 180°, V: 180°, D: 180°
- UV Resistance
- ASTM G 151/154
- Conductor Type
- Stranded copper
- Shielding Type
- S/FTP
- Endurance (TBW)
- 128 GB: 64 256 GB: 128 512 GB: 500 1 TB: 1,000
- IR Night Vision
- 15m (50 ft) Smart IR (4x controllable zones)
- Jacket Diameter
- 6.3 mm (0.25")
- Jacket Material
- Thermoplastic elastomer (TPE)
- Weatherproofing
- IP66
- Available Colors
- Black White
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- 610 g (1.3 lb)
- Threaded Outlets
- 1 1/2” NPS
- Available Lengths
- 1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)
- Grid overview: AI
- AI Detections
- Grid overview: IR
- 15 m (50 ft)
- Mounting Material
- Aluminum alloy
- Performance: Lens
- Fisheye lens
- Tamper Resistance
- IK10
- Enclosure Material
- Polycarbonate
- Mechanical: Weight
- 80 g (2.8 oz)
- Supported PoE Type
- Up to PoE+++
- Conductor Wire Gage
- 24 AWG
- Hardware: Processor
- Quad-core Arm® Cortex®-A53 based chip
- Performance: Sensor
- 1/1.6" 12MP
- Pole Mount Diameter
- 1.5–2" (38–50 mm)
- Supported Data Rate
- GbE
- Grid overview: Sound
- Two-Way Audio
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Management Interface
- SDA 6.0
- Operating Environment
- Outdoor
- Hardware: Power Method
- PoE+
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Performance: Night Mode
- Built-in IR LED illumination and IR cut filter
- Performance: Resolution
- 12MP 3504 x 3504 (1:1)
- UniFi Application Suite
- Protect
- Hardware: Certifications
- CE, FCC, IC
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Expansion Slot
- MicroSD card
- Hardware: Mount Material
- Polycarbonate
- Installation Temperature
- -20 to 60°C (-4 to 140°F)
- Grid overview: Resistance
- IK10
- Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Ambient Storage Temperature
- -40 to 80°C (-40 to 176°F)
- Grid overview: Weatherproof
- Outdoor Exposed
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IPX5
- Performance: Image Settings
- Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
- Sequential Read Performance
- 128 GB: 100 MB/s 256 GB: 100 MB/s 512 GB: 160 MB/s 1 TB: 160 MB/s
- Hardware: Enclosure Material
- Aluminum alloy, polycarbonate
- Performance: Max. Frame Rate
- 24 FPS
- Ambient Operating Temperature
- -30 to 75°C (-22 to 167°F)
- Grid overview: Lens Resolution
- 12MP
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (2) RJ45 female connectors
- Mechanical: Enclosure Material
- Polycarbonate
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Hardware: Max. Power Consumption
- 13.5W
- Hardware: Supported Voltage Range
- 37—57V DC
- Performance: Networking Interface
- 10/100 MbE RJ45 port
- Hardware: Ambient Operating Humidity
- 0 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 50º C (-22 to 122º F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
