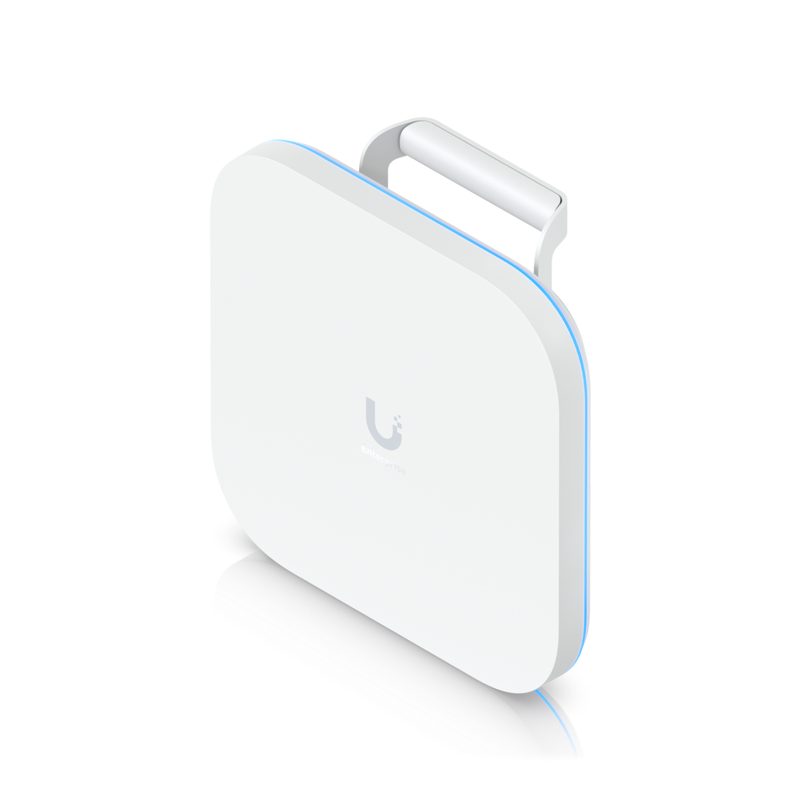

Ubiquiti UICARE-E7-Campus

Beschreibung

Enterprise-grade indoor/outdoor access point with 10-stream dual-band WiFi 7 performance, PRISM™ active RF filtering technology, integrated directional antennas, a 10 GbE uplink, and a redundant GbE port for high availability.

Technische Daten

Uplink

10 GbE 1 GbE

Weight

210 g (7.4 oz)

Mounting

Wall, Pole (Mounts Included) VESA (Optional)

Dimensions

Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8") Articulating mount: ⌀104 x 149.4 (⌀4.1 x 5.9")

Efficiency

>88%

Power Cable

Included

Power Method

PoE++

Coverage Area

465 m² (5,000 ft²)

Data In / PoE

RJ45 Shielded Socket

Input Current

1.5A Max.

Output Ripple

1% Max.

Rated Voltage

100–240V AC at 50/60Hz

Response Time

<1 ns

WiFi Standard

WiFi 7

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Inrush Current

<150A peak at 230V AC

Output Voltage

54V DC at 1.12A

4-pair Powering

Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Hardware: 5 GHz

100° x 55°

Line Regulation

≤ 2%

Load Regulation

≤ 5%

Spatial Streams

10

Weatherproofing

IPX6 IP67 with Waterproof Door Kit (Included)

Hardware: System

R/G/B

Hardware: Weight

Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb)

Surge Protection

Difference and common mode

Hardware: 2.4 GHz

90° x 80°

Max. Client Count

1000+

Shunt Capacitance

<5 pF data

Hardware: Antennas

(1) Internal with directional patterns

Mechanical: Weight

80 g (2.8 oz)

Peak Pulse Current

36A (10/1000 μs) data

Performance: 5 GHz

Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO)

Clamping Protection

11V Data, 60V power

Switching Frequency

65 kHz

Grid overview: WiFi7

WiFi 7

Hardware: Insulation

Max. Resistance: 1G ohm @ 50V

Hardware: Management

Ethernet

Max. Surge Discharge

1500A (8/20 μs) power

Performance: 2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Performance: 802.11n

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Software: Mobile App

iOS™ version 10.20.0 and later Android™ version 10.21.3 and later

Grid overview: Uplink

10 GbE

Hardware: Wind Loading

164.75 N at 200 km/h (37 lbf at 125 mph)

Mechanical: Dimensions

91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")

Software: UniFi Network

Version 9.0.114 and later

Hardware: Certifications

CE, Anatel: 02724-25-08356

Hardware: ESD Protection

Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs

Hardware: Mount Material

Stainless steel, aluminum alloy

Performance: Max. BSSIDs

8 per Radio

Ambient Operating Humidity

10 to 95% noncondensing

Hardware: Max. Capacitance

1.0 pF @ 1 MHz

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Hardware: Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Hardware: Discharge Current

10kA+

Mechanical: Weatherproofing

IPX5

Hardware: Enclosure Material

UV-stabilized polycarbonate, aluminum alloy

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Hardware: Operating Frequency

US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz Worldwide: 2400 - 24

Hardware: Pole Mount Diameter

1–2.5" (25–63.5 mm)

Hardware: Data Line Protection

Up to 2.5 Gbps

Hardware: Networking Interface

(1) 10 GbE RJ45 port (1) GbE RJ45 port

Mechanical: Enclosure Material

Polycarbonate

Performance: 802.11ac (WiFi 5)

6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

Performance: 802.11ax (WiFi 6)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Performance: 802.11be (WiFi 7)

7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

Hardware: DC Spark-Over Voltage

90V @ 100V/s

Grid overview: Max. Client Count

1,000

Hardware: Max. Power Consumption

44W

Hardware: Supported Voltage Range

42.5–57V DC

Max. PoE+ Wattage per Port by PSE

60W

Hardware: Ambient Operating Humidity

5 to 95% noncondensing

Hardware: Ambient Operating Temperature

-30 to 60° C (-22 to 140° F)

Hardware: Max. Impulse Spark-Over Voltage

700V @ 1kV/µs

Hardware: Shock and Vibration Certification

ETSI300-019-1.4 Standard
