Beschreibung

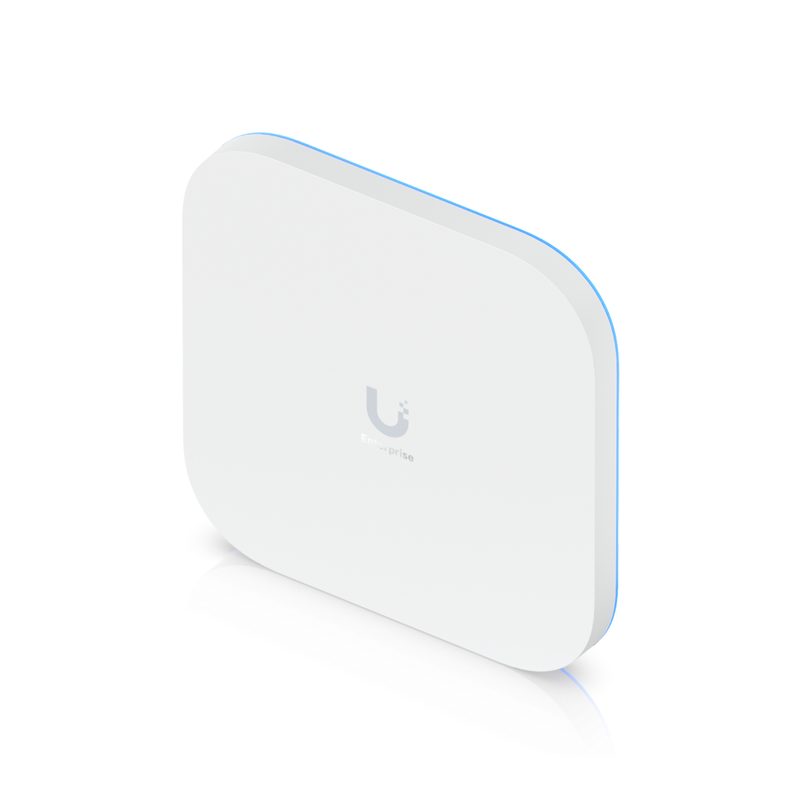

Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
Technische Daten
- Uplink
- 10 GbE 1 GbE
- Weight
- 210 g (7.4 oz)
- Mounting
- Ceiling, Wall, VESA (Pro Mount Included)
- Dimensions
- 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7")
- Efficiency
- >88%
- Power Cable
- Included
- Power Method
- PoE++
- Coverage Area
- 185 m² (2,000 ft²)
- Data In / PoE
- RJ45 Shielded Socket
- Input Current
- 1.5A Max.
- Output Ripple
- 1% Max.
- Rated Voltage
- 100–240V AC at 50/60Hz
- Response Time
- <1 ns
- WiFi Standard
- WiFi 7
- Certifications
- CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
- Inrush Current
- <150A peak at 230V AC
- Output Voltage
- 54V DC at 1.12A
- 4-pair Powering
- Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- Line Regulation
- ≤ 2%
- Load Regulation
- ≤ 5%
- Spatial Streams
- 10
- Hardware: System
- R/G/B
- Hardware: Weight
- 1.8 kg (4 lb)
- Surge Protection
- Difference and common mode
- Max. Client Count
- 1000+
- Shunt Capacitance
- <5 pF data
- Peak Pulse Current
- 36A (10/1000 μs) data
- Performance: 5 GHz
- 4 x 4 (DL/UL MU-MIMO)
- Performance: 6 GHz
- 4 x 4 (DL/UL MU-MIMO)
- Clamping Protection
- 11V Data, 60V power
- Switching Frequency
- 65 kHz
- Grid overview: WiFi7
- WiFi 7
- Hardware: Management
- Ethernet
- Max. Surge Discharge
- 1500A (8/20 μs) power
- Performance: 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 802.11n
- 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
- Software: Mobile App
- iOS™ version 10.24.1 and later Android™ version 10.25.2 and later
- Grid overview: Uplink
- 10 GbE
- Software: UniFi Network
- Version 9.2.87 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 06372-24-08356
- Hardware: Mount Material
- Stainless steel (SUS304), galvanized steel (SGCC)
- Performance: Max. BSSIDs
- 8 per Radio
- Ambient Operating Humidity
- 10 to 95% noncondensing
- Ambient Storage Temperature
- -30 to 70°C (-22 to 158° F)
- Hardware: Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- Grid overview: Radio/Antenna
- 6 GHz Radio
- Hardware: Enclosure Material
- UV-stabilized polycarbonate, aluminum alloy
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Hardware: Operating Frequency
- US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 58
- Hardware: Networking Interface
- (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- Performance: 802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
- Performance: 802.11be (WiFi 7)
- 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
- Grid overview: Max. Client Count
- 1,000
- Hardware: Max. Power Consumption
- 43W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Max. PoE+ Wattage per Port by PSE
- 60W
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 50° C (-22 to 122° F)
