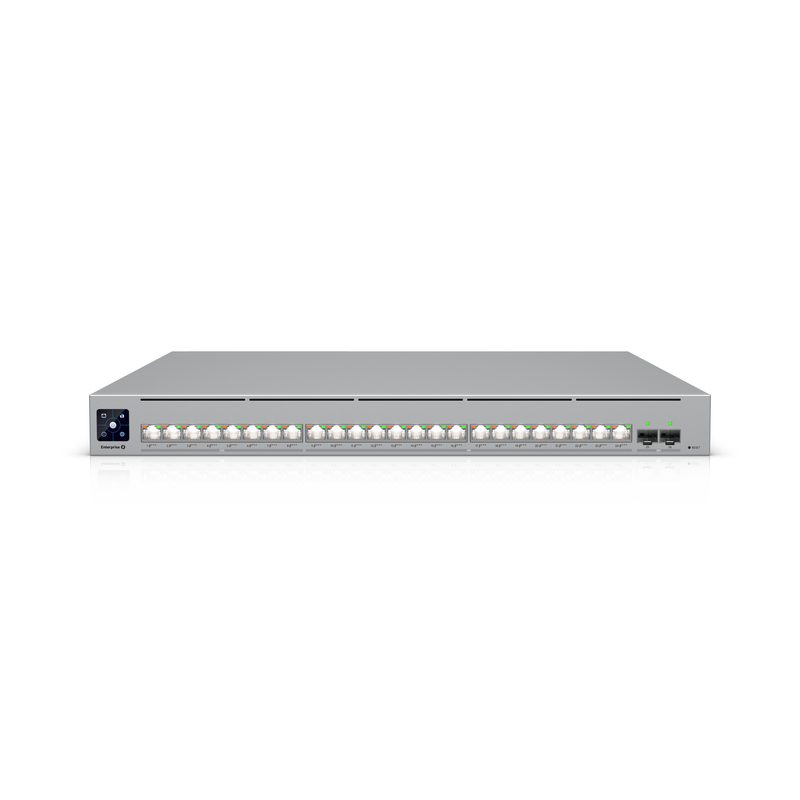

Ubiquiti UICARE-ECS-24-PoE-EU
Ubiquiti · UICARE-ECS-24-PoE-EU-D
Lieferzeit auf Anfrage
551,49 €inkl. MwSt., zzgl. Versand
Beschreibung
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Technische Daten
- Wire
- Copper
- Weight
- 750 g (1.65 lb)
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- 25G SFP28
- 2 (25G/10G/1G)
- Connector
- Duplex LC UPC
- Dimensions
- 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
- Redundancy
- (2) Hot-Swappable PSUs (4) Hot-Swappable Fans
- 10 GbE RJ45
- 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
- Bend Radius
- 0.5 / 1 m: Min. 24 mm (0.94") 3 m: Min. 31 mm (1.22")
- Form Factor
- Rack Mount (1U, Full-Depth)
- Wave Length
- 850 nm
- 2.5 GbE RJ45
- 8 (All PoE+++) (2.5G/1G/100M/10M)
- Jacket Color
- Black
- Pack Options
- Single Unit
- Hardware: PoE
- 15.4W
- RX Wavelength
- 850 nm
- TX Wavelength
- 850 nm
- Certifications
- CE, FCC, IC
- Connector Type
- SFP28 to SFP28
- Hardware: PoE+
- 30W
- Output Current
- 11A
- Output Voltage
- 54.5V
- Hardware: PoE++
- 60W
- Hardware: Speed
- 18,000 ±10% RPM
- Input Connector
- C14
- Input Frequency
- 50/60 Hz
- Jacket Material
- PVC
- Max. PoE Output
- Up to PoE+++
- Supported Media
- Multi-Mode Fiber
- Hardware: PoE+++
- 24
- Hardware: Weight
- Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb)
- Performance: MAC
- 256
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Hardware: Airflow
- Front-to-back
- Performance: IPv4
- 256
- Enclosure Material
- SGCC steel
- Mechanical: Weight
- 150 g (5.3 oz)
- Total Output Power
- 600W
- Input Voltage Range
- 100–240V AC
- Supported Data Rate
- 25 / 10 / 1 Gbps
- Hardware: Fan Method
- (4) hot-swappable fan modules
- Hardware: Management
- Ethernet AR
- Hardware: LCM Display
- 1.3" touchscreen
- Jacket Outer Diameter
- 0.5/ 1m: 4.5 mm (0.18") 3 m: 5.6 mm (0.22")
- Hardware: Power Method
- (2) Universal input, 100–240V AC, 50/60 Hz
- Hardware: Power Supply
- (2) Hot-swappable AC/DC 600W power modules
- Max. Power Consumption
- 0.8 W
- Mechanical: Dimensions
- 79.9 x 47.5 x 41.3 mm (3.1 x 1.9 x 1.6")
- Total PoE Availability
- 100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W wi
- Software: UniFi Network
- Version 9.0.114 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 06181-25-08356
- Hardware: ESD Protection
- Air: ± 30kV, contact: ± 30kV
- Hardware: Mount Material
- SGCC steel
- Supported Cable Distance
- OM4 - 100 m (328 ft) OM3 - 70 m (229 ft)
- Hardware: Heat Dissipation
- 444 BTU/hr (Excluding PoE Output)
- Hardware: Enclosure Material
- SGCC steel
- Hardware: Power Input Method
- (2) AC input, Hot-swappable power modules
- Performance: Forwarding Rate
- 342 Mpps
- Performance: Supported VLANs
- 1,000
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Hardware: Supported Rack Depth
- 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
- Performance: IPv4 Static Routes
- 512
- Performance: Packet Buffer Size
- 8 MB
- Performance: Switching Capacity
- 460 Gbps
- Hardware: Max. Power Consumption
- 150W (Excluding PoE Output) 2,400W (Including PoE Output)
- Hardware: Supported Voltage Range
- 100–240V AC
- Performance: MAC Address Table Size
- 32,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -5 to 40° C (23 to 104° F)
- Performance: Total Non-Blocking Throughput
- 230 Gbps
