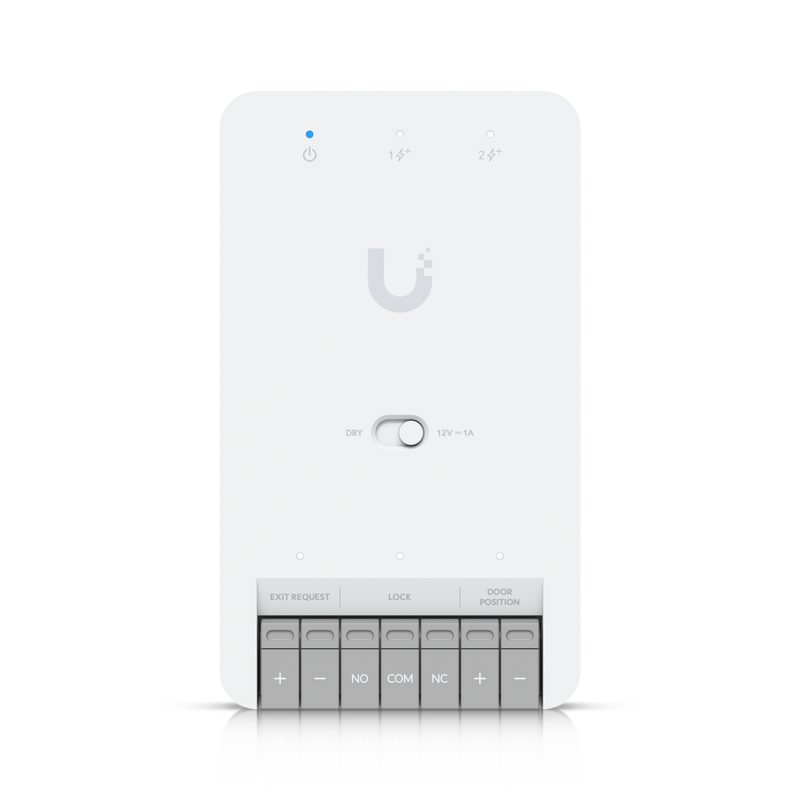

Ubiquiti UICARE-UA-Hub-Door-Mini

Beschreibung

Compact Access Control Hub for a single door.

Technische Daten

Length

152.4 m (500 ft)

Weight

UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)

Material

Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC)

Dimensions

113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")

Insulation

UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG)

Bend Radius

UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")

Flame Rating

VW-1

Jacket Color

White

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Conductor DCR

UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)

Current Rating

18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length

Hardware: LEDs

W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>

Input Terminals

(1) Door exit request (1) Door position

Pulling Tension

UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf

Supported Doors

1

Hardware: Buttons

(1) Factory reset (1) Dry/Wet switch

Grid overview: PoE

2 PoE Ports

Maximum User Count

3,000

Mechanical: Weight

190 g (6.7 oz)

Conductor Wire Gauge

UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG

Hardware: Key Switch

Brass internal wave key, 28V DC, 4A

Mechanical: Mounting

DIN-rail (Included)

Number of Conductors

UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2

Jacket Outer Diameter

UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")

Mechanical: Dimensions

84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")

Hardware: PoE Interface

(1) PoE++ input, 50V DC, 1A (2) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)

Supported Voltage Range

36V DC

Hardware: Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Hardware: Terminal Block

COM/NO/NC 18-24 AWG

Mechanical: NFC Frequency

13.56 MHz

Hardware: Dry Output Relay

30V DC, 1A

Hardware: Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Hardware: UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power

Hardware: Wet Output Relay

12V DC, 1A

Mechanical: NFC Technology

ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol

Ambient Storage Temperature

-45 to 65° C (-49 to 149° F)

Mechanical: Weatherproofing

IP54

Ambient Operating Temperature

-45 to 65° C (-49 to 149° F)

Grid overview: Lock Terminals

1 Lock Terminal

Hardware: Networking Interface

(3) GbE RJ45 ports

Mechanical: Enclosure Material

Polycarbonate, metal

Software: Software Information

The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Grid overview: Additional Inputs

2 Additional Inputs

Hardware: Indoor and Outdoor Use

Indoor only

Hardware: Max. Power Consumption

19W (Without PoE output) 50W (With PoE output)

Software: Management Application

Access

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: I

Hardware: PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per

Hardware: UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

Hardware: Ambient Operating Humidity

5 to 90% noncondensing

Hardware: Ambient Storage Temperature

-40 to 85° C (-40 to 185° F)

Hardware: Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Hardware: UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: Document number, and issue date and/or revision le

UA-Hub-Door-Mini, V01
