Ubiquiti UICARE-UCG-Fiber-EU
Ubiquiti · UICARE-UCG-Fiber-EU-D
Lieferzeit auf Anfrage
92,59 €inkl. MwSt., zzgl. Versand
Beschreibung

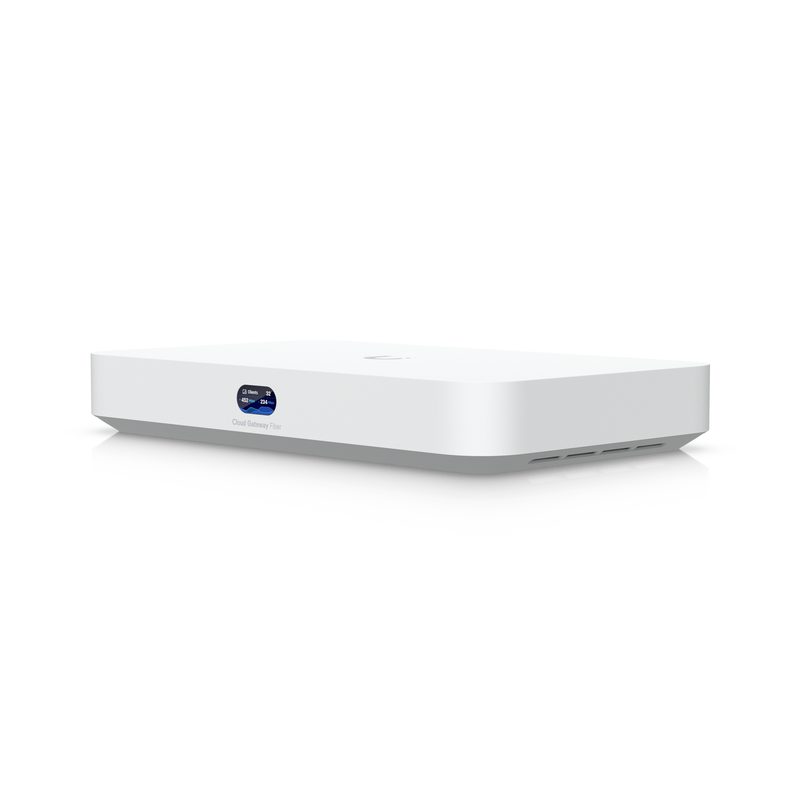

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.
Technische Daten
- SIM
- (1) Nano SIM (4FF) (1) eSIM
- Wire
- Copper
- Weight
- 245 g (8.6 oz)
- 10G SFP+
- 2 (10G/1G)
- Mounting
- Desktop stand, wall, window mount (Included)
- Connector
- RJ45
- Treatment
- Painting
- Dimensions
- 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2")
- 10 GbE RJ45
- 1 (10G/2.5G/1G)
- Bend Radius
- 0.5 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")
- Form Factor
- Compact desktop
- Wave Length
- 850 nm
- 2.5 GbE RJ45
- 4 (2.5G/1G/100M/10M)
- Jacket Color
- Black
- Pack Options
- Single Unit
- Compatibility
- UCG-Fiber UXG-Fiber
- PoE Interface
- (1) PoE input
- Connector Type
- SFP+ to SFP+
- Hardware: Type
- (2) Embedded omni-directional cellular antennas
- Hardware: 5G SA
- Downlink 220 Mbps / Uplink 120 Mbps
- Jacket Material
- PVC
- Managed Cameras
- (15) HD (8) 2K (5) 4K
- Supported Media
- Copper
- Hardware: 4G LTE
- Downlink 195 Mbps / Uplink 100 Mbps
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- Without SSD: 675 g (1.5 lb) With SSD: 734 g (1.6 lb)
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Default WAN Ports
- (1) 10G SFP+ (1) 10 GbE RJ45
- Hardware: Buttons
- (1) Factory reset
- Hardware: Display
- 1.14" status display
- Enclosure Material
- Polycarbonate, silicone rubber
- Hardware: Category
- 5G RedCap
- IDS/IPS Throughput
- 5 Gbps
- Mechanical: Weight
- Device: 122 g (4.3 oz) Stand: 138 g (4.9 oz) Wall mount: 66 g ( 2.3 oz)
- Hardware: Processor
- Quad-core ARM® Cortex®-A73 at 2.2 GHz
- Managed Access Hubs
- 50
- Max. WAN Port Count
- 6
- Supported Data Rate
- 1 / 10 Gbps
- Hardware: Management
- Ethernet Bluetooth
- Hardware: PoE Budget
- 30W
- Networking Interface
- (1) GbE RJ45 port 5G RedCap and LTE
- Software: Mobile App
- UniFi iOS™ version 10.35.0 and later UniFi Android™ version 10.38.2 and later
- Hardware: LCM Display
- 0.96" status display
- Hardware: NVR Storage
- Selectable NVMe SSD up to 2 TB
- Jacket Outer Diameter
- 0.5/ 1m: 4.2 mm (0.17") 3 m: 6 mm (0.24")
- Managed UniFi Devices
- 50+
- Grid overview: IDS/IPS
- 5 Gbps
- Hardware: Power Method
- DC jack (54V DC/1.1A)
- Hardware: Power Supply
- 54V DC/1.1A (Adapter included)
- Max. Power Consumption
- 1.9W
- Device-Clamping Support
- Max. width 42.5 mm (1.6")
- Hardware: Max. TX Power
- 23 dBm
- Hardware: System Memory
- 3 GB
- Software: UniFi Network
- Version 10.4.57 and later
- Hardware: Certifications
- CE, FCC, IC, SRRC, Anatel: 04395-25-08356
- Supported Cable Distance
- 10 Gbps (Cat 6A): 100 m (328 ft)
- Hardware: Frequency Bands
- n1, n3, n5, n7, n8, n20, n26, n28, n40, n41, n77, n78
- Hardware: Heat Dissipation
- 100 BTU/hr (Excluding PoE Output)
- Mechanical: Mount Material
- Galvanized steel, silicone rubber
- Hardware: ESD/EMP Protection
- Air: ± 8kV, contact: ± 4kV
- Hardware: Enclosure Material
- Polycarbonate
- Security: IDS/IPS Signatures
- 55,000+ with CyberSecure
- Simultaneous Users Connected
- 500+
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Mechanical: Enclosure Material
- Polycarbonate, aluminum alloy
- Grid overview: Max. Client Count
- 500
- Hardware: Max. Power Consumption
- 29.4W (Excluding PoE output)
- Hardware: Voltage Range PoE Mode
- 50-57V
- Grid overview: IDS/IPS Throughput
- 5 Gbps
- Hardware: Supported Voltage Range
- 100–240V AC
- Networking: MAC Address Table Size
- 4,000
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
