Ubiquiti UICARE-UDR7-EU
Ubiquiti · UICARE-UDR7-EU-D
Lieferzeit auf Anfrage
71,32 €inkl. MwSt., zzgl. Versand
Beschreibung

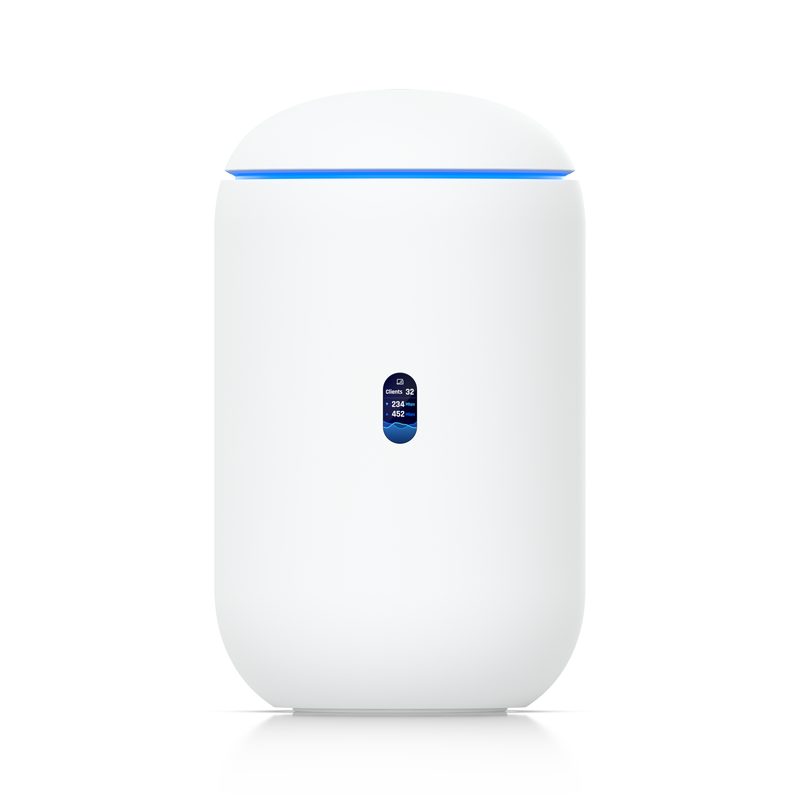

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Technische Daten
- SIM
- (1) Nano SIM (4FF) (1) eSIM
- 10G SFP+
- 1 (10G/1G)
- Capacity
- 128/256/512 GB/1 TB
- Mounting
- Desktop stand, wall, window mount (Included)
- Connector
- RJ45
- Dimensions
- ⌀110 x 184.1 mm (⌀4.3 x 7.3")
- Form Factor
- Compact desktop
- Speed Class
- Class 10, UHS-I (U1), V10
- 2.5 GbE RJ45
- 4 (1 PoE) (2.5G/1G/100M/10M)
- Pack Options
- Single Unit
- Coverage Area
- 160 m² (1,750 ft²)
- Hardware: PoE
- 15.4W
- PoE Interface
- (1) PoE input
- Hardware: Type
- (2) Embedded omni-directional cellular antennas
- Software: VLAN
- 802.1Q
- Endurance (TBW)
- 128 GB: 64 256 GB: 128 512 GB: 500 1 TB: 1,000
- Hardware: 5G SA
- Downlink 220 Mbps / Uplink 120 Mbps
- Managed Cameras
- (5) HD (2) 2K (1) 4K
- Supported Media
- Copper
- Hardware: 4G LTE
- Downlink 195 Mbps / Uplink 100 Mbps
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- 1.1 kg (2.4 lb)
- Default WAN Ports
- (1) 10G SFP+ (1) 2.5 GbE RJ45
- Hardware: Buttons
- (1) Factory reset
- Hardware: Display
- 1.14" status display
- Hardware: Category
- 5G RedCap
- IDS/IPS Throughput
- 2.3 Gbps
- Mechanical: Weight
- Device: 122 g (4.3 oz) Stand: 138 g (4.9 oz) Wall mount: 66 g ( 2.3 oz)
- Hardware: Processor
- Quad-core ARM® Cortex®-A53 at 1.5 GHz
- Max. WAN Port Count
- 4
- Supported Data Rate
- 1 / 2.5 / 5 / 10 Gbps
- Hardware: Management
- Ethernet Bluetooth
- Hardware: PoE Budget
- 15.4W
- Management Interface
- SDA 6.0
- Networking Interface
- (1) GbE RJ45 port 5G RedCap and LTE
- Software: Mobile App
- UniFi iOS™ version 10.35.0 and later UniFi Android™ version 10.38.2 and later
- Hardware: LCM Display
- 0.96" status display
- Hardware: NVR Storage
- Pre-installed 64GB microSD for NVR
- Managed UniFi Devices
- 30+
- Grid overview: IDS/IPS
- 2.3 Gbps
- Hardware: Power Method
- Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
- Hardware: Power Supply
- AC/DC, Internal, 50W
- Integrated WiFi: 5 GHz
- 4.3 Gbps
- Integrated WiFi: 6 GHz
- 5.7 Gbps
- Max. Power Consumption
- 1.9W
- Hardware: Max. TX Power
- 23 dBm
- Hardware: System Memory
- 3 GB
- Software: UniFi Network
- Version 9.0.108 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 05650-25-08356
- Hardware: Expansion Slot
- MicroSD Card
- Integrated WiFi: 2.4 GHz
- 688 Mbps
- Integrated WiFi: 802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Integrated WiFi: 802.11b
- 1, 2, 5.5, 11 Mbps
- Integrated WiFi: 802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Integrated WiFi: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Supported Cable Distance
- 10 Gbps (Cat 6A): 100 m (328 ft)
- Hardware: Frequency Bands
- n1, n3, n5, n7, n8, n20, n26, n28, n40, n41, n77, n78
- Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Heat Dissipation
- 89 BTU/hr (Excluding PoE Output)
- Mechanical: Mount Material
- Galvanized steel, silicone rubber
- Sequential Read Performance
- 128 GB: 100 MB/s 256 GB: 100 MB/s 512 GB: 160 MB/s 1 TB: 160 MB/s
- Hardware: ESD/EMP Protection
- Air: ± 8kV, contact: ± 4kV
- Hardware: Enclosure Material
- Polycarbonate
- Integrated WiFi: Max. BSSIDs
- 4 per Radio
- Security: IDS/IPS Signatures
- 20,000+ with CyberSecure
- Simultaneous Users Connected
- 300+
- Ambient Operating Temperature
- -25 to 85° C (-13 to 185° F)
- Integrated WiFi: WiFi Standard
- 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- Mechanical: Enclosure Material
- Polycarbonate, aluminum alloy
- Grid overview: Max. Client Count
- 300
- Hardware: Max. Power Consumption
- 26W (Excluding PoE output)
- Hardware: Voltage Range PoE Mode
- 44-57V
- Grid overview: IDS/IPS Throughput
- 2.3 Gbps
- Hardware: Supported Voltage Range
- 100–240V AC
- Integrated WiFi: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Integrated WiFi: 802.11be (WiFi 7)
- 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
- Integrated WiFi: Wireless Security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- Networking: MAC Address Table Size
- 2,000
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Integrated WiFi: 802.11ax (WiFi 6/6E)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Hardware: Ambient Operating Temperature
- -10 to 40° C (14 to 104° F)
