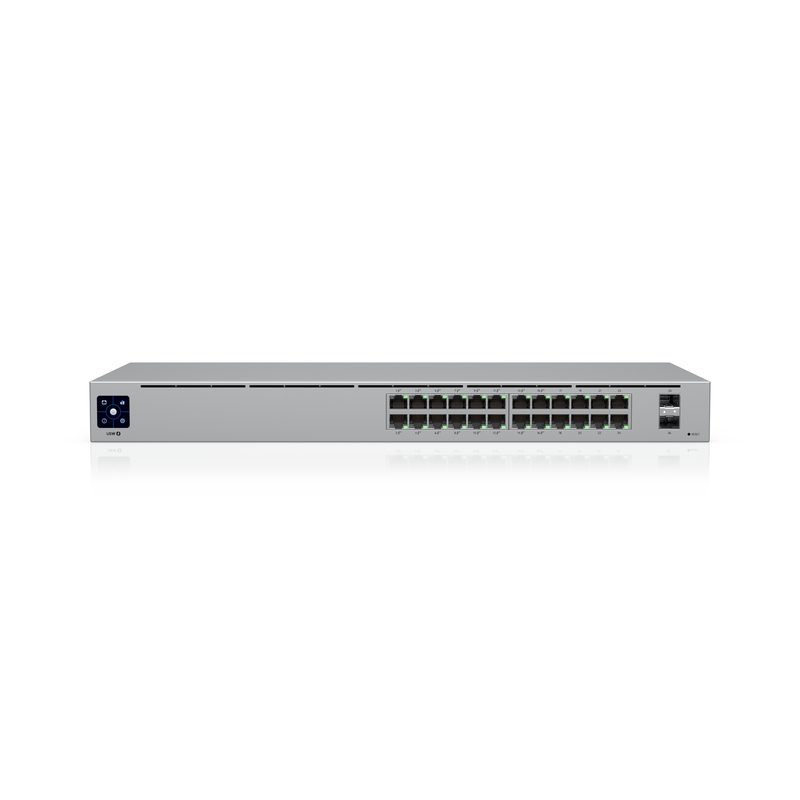

Ubiquiti UICARE-USW-24-POE-EU
Ubiquiti · UICARE-USW-24-POE-EU-D
Lieferzeit auf Anfrage
112,69 €inkl. MwSt., zzgl. Versand
Beschreibung
A 24-port, Layer 2 PoE switch with a fanless cooling system.
Technische Daten
- 1G SFP
- 2 (1G)
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- Connector
- RJ45
- 1 GbE RJ45
- 24 (16 PoE+) (1G/100M/10M)
- Dimensions
- 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
- Form Factor
- Rack mount (1U)
- Pack Options
- Single Unit
- Hardware: PoE
- 15.4W
- RX Wavelength
- 1550 / 1310 nm
- TX Wavelength
- 1310 / 1550 nm
- Hardware: PoE+
- 16
- Max. PoE Output
- Up to PoE+
- Supported Media
- Copper
- Hardware: Weight
- Without mounting brackets: 3 kg (6.6 lb) With mounting brackets: 3.1 kg (6.8 lb)
- Performance: MAC
- 128
- Performance: IPv4
- 128
- Supported Data Rate
- 10 / 100 / 1000 Mbps
- Hardware: Management
- Ethernet AR
- Hardware: LCM Display
- 1.3" touchscreen
- Hardware: Power Method
- Universal input, 100–240V AC, 50/60 Hz
- Hardware: Power Supply
- AC/DC, internal, 120W
- Max. Power Consumption
- 1.2W
- Total PoE Availability
- 95W
- Software: UniFi Network
- Version 7.2.94 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 00593-21-08356
- Hardware: ESD Protection
- Air: ± 16kV, contact: ± 12kV
- Hardware: Mount Material
- SGCC steel
- Supported Cable Distance
- 100 m (328 ft)
- Hardware: Heat Dissipation
- 85.3 BTU/hr (Excluding PoE Output)
- Hardware: Enclosure Material
- SGCC steel
- Hardware: Power Input Method
- AC input
- Performance: Forwarding Rate
- 39 Mpps
- Performance: Supported VLANs
- 1,000
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Hardware: Supported Rack Depth
- 400~1200 mm (15.7-47.2")
- Performance: Packet Buffer Size
- 0.5 MB
- Performance: Switching Capacity
- 52 Gbps
- Hardware: Max. Power Consumption
- 25W (Excluding PoE output) 120W (Including PoE Output)
- Hardware: Supported Voltage Range
- 100–240V AC
- Performance: MAC Address Table Size
- 8,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -5 to 40° C (23 to 104° F)
- Performance: Total Non-Blocking Throughput
- 26 Gbps
