Ubiquiti UICARE-USW-Flex-2.5G-8-PoE

Beschreibung

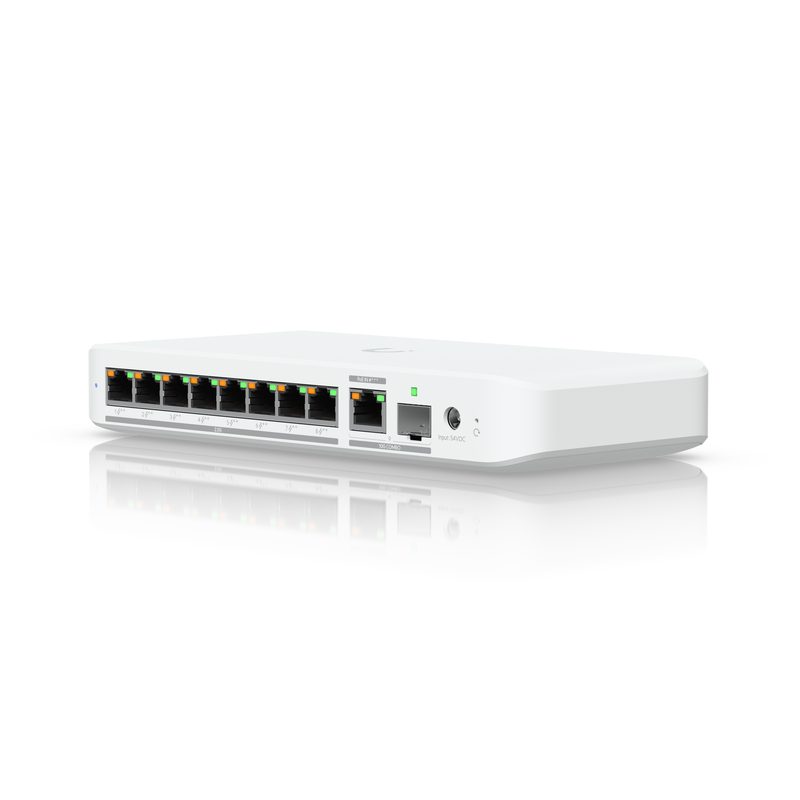

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.

Technische Daten

Wire

Copper

Weight

56.1 g (2 oz)

WARNING

CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.

10G SFP+

1 (10G/1G)

Connector

Duplex LC UPC

Treatment

Painting

Dimensions

212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")

Efficiency

>88%

10 GbE RJ45

1 (PoE+++) (10G/5G/2.5G/1G/100M)

Bend Radius

0.5 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")

Form Factor

Compact Desktop, wall, DIN, magnetic

Output Plug

DC plug: 5.5 x 2.1 x 11.5 mm (0.2 x 0.08 x 0.5") DC cable: UL11353 16AWG 1.5 m (4.9 ft)

Power Cable

Included

Wave Length

850 nm

2.5 GbE RJ45

8 (All PoE++) (2.5G/1G/100M/10M)

AC Connector

C14 INLET (input)

Jacket Color

Black

Pack Options

Single Unit

Compatibility

Utility Switching (Except Lite 8/16 PoE, Enterprise 8 PoE, Pro 8 PoE) Compact Cloud Gateway (UCG & UX series) Advance Hosting (UXG & UCK-G2 series) Special Device (AI-Key, UMR series, UPL-Port)

Data In / PoE

RJ45 shielded socket

Hardware: PoE

15.4W

Input Current

1.5A Max.

Output Ripple

1% Max.

RX Wavelength

850 nm

Rated Voltage

100–240V AC at 50/60Hz

Response Time

<1 ns

TX Wavelength

850 nm

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Connector Type

SFP+ to SFP+

Hardware: PoE+

32W

Inrush Current

<120A peak @ 230V AC

Output Voltage

54V DC @ 1.67A

4-pair Powering

Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Hardware: PoE++

8

Jacket Material

PVC

Line Regulation

≤ 2%

Load Regulation

≤ 5%

Max. PoE Output

Up to PoE++

Supported Media

Multi-Mode Fiber

Hardware: Weight

567 g (20 oz)

Surge Protection

Difference and common mode

Available Lengths

0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)

Shunt Capacitance

<5 pF data

Enclosure Material

Polycarbonate, silicone rubber

Peak Pulse Current

36A (10/1000 μs) data

Clamping Protection

11V data, 60V power

Supported Data Rate

1 / 10 Gbps

Switching Frequency

65 kHz

Hardware: Management

Ethernet

Max. Surge Discharge

1500A (8/20 μs) power

Jacket Outer Diameter

0.5/ 1m: 4.2 mm (0.17") 3 m: 6 mm (0.24")

Hardware: Power Method

(1) AC/DC adapter (Excluded) (1) PoE+++

Max. Power Consumption

0.8 W

Total PoE Availability

PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W

Device-Clamping Support

Max. width 42.5 mm (1.6")

Software: UniFi Network

Version 9.0.114 and later

Supported Voltage Range

Input: 100–240V AC Output: 54V DC

Hardware: Certifications

CE, FCC, IC

Hardware: Mount Material

Polycarbonate

Supported Cable Distance

OM4 - 400 m (1312 ft) OM3 - 300 m (984 ft)

Ambient Operating Humidity

10 to 90% noncondensing

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Hardware: Enclosure Material

Polycarbonate

Hardware: Power Input Method

DC Input PoE

Performance: Forwarding Rate

45 Mpps

Performance: Supported VLANs

256

Ambient Operating Temperature

0 to 70° C (32 to 158° F)

Performance: Switching Capacity

60 Gbps

Hardware: Max. Power Consumption

14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)

Hardware: Supported Voltage Range

50–57V DC/PoE

Max. PoE+ Wattage per Port by PSE

90W

Performance: MAC Address Table Size

4,000

Hardware: Ambient Operating Humidity

10 to 90% noncondensing

Hardware: Ambient Operating Temperature

-20 to 45° C (-4 to 113° F)

Performance: Total Non-Blocking Throughput

30 Gbps
