Ubiquiti UICARE-USW-Pro-8-PoE-EU
Ubiquiti · UICARE-USW-Pro-8-PoE-EU-D
Lieferzeit auf Anfrage
61,26 €inkl. MwSt., zzgl. Versand
Beschreibung

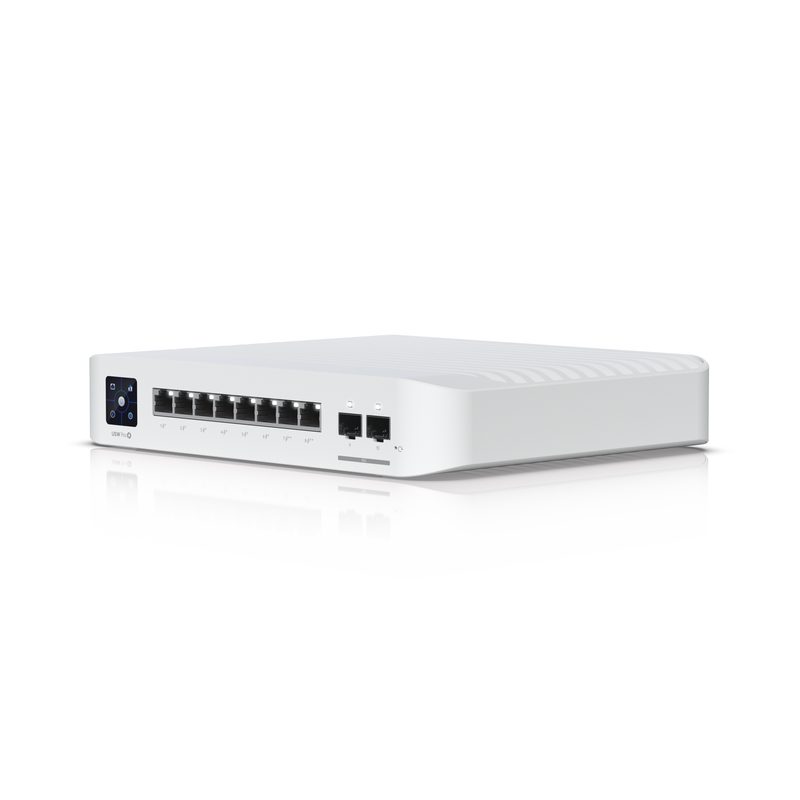

An 8-port, Layer 3 switch with PoE+ and PoE++ output.
Technische Daten
- Wire
- Copper
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- 10G SFP+
- 2 (10G/1G)
- Connector
- RJ45
- 1 GbE RJ45
- 8 (6 PoE+; 2 PoE++) (1G/100M/10M)
- Dimensions
- 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
- Bend Radius
- 0.5 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")
- Form Factor
- Compact desktop, wall
- Wave Length
- 850 nm
- Jacket Color
- Black
- Pack Options
- Single Unit
- Hardware: PoE
- 15.4W
- RX Wavelength
- 850 nm
- TX Wavelength
- 850 nm
- Connector Type
- SFP+ to SFP+
- Hardware: PoE+
- 6
- Hardware: PoE++
- 2
- Jacket Material
- PVC
- Max. PoE Output
- Up to PoE++
- Supported Media
- Copper
- Hardware: Weight
- 2.1 kg (4.6 lb)
- Performance: MAC
- 128
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Performance: IPv4
- 128
- Supported Data Rate
- 1 / 10 Gbps
- Hardware: Management
- Ethernet AR
- Hardware: LCM Display
- 1.3" touchscreen
- Jacket Outer Diameter
- 0.5/ 1m: 4.2 mm (0.17") 3 m: 6 mm (0.24")
- Hardware: Power Method
- Universal input, 100–240V AC, 50/60 Hz
- Hardware: Power Supply
- AC/DC, internal, 150W
- Max. Power Consumption
- 1.9W
- Total PoE Availability
- 120W
- Software: UniFi Network
- Version 7.5.176 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 05214-24-08356
- Hardware: Mount Material
- Polycarbonate
- Supported Cable Distance
- 10 Gbps (Cat 6A): 100 m (328 ft)
- Hardware: Heat Dissipation
- 102.4 BTU/hr (Excluding PoE Output)
- Hardware: Enclosure Material
- Polycarbonate, metal
- Hardware: Power Input Method
- AC input
- Performance: Forwarding Rate
- 42 Mpps
- Performance: Supported VLANs
- 1,000
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Hardware: Supported Rack Depth
- 400~1200 mm (15.7-47.2")
- Performance: IPv4 Static Routes
- 256
- Performance: Packet Buffer Size
- 1.5 MB
- Performance: Switching Capacity
- 56 Gbps
- Hardware: Max. Power Consumption
- 30W (Excluding PoE Output) 150W (Including PoE Output)
- Hardware: Supported Voltage Range
- 100–240V AC
- Performance: MAC Address Table Size
- 16,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -5 to 45° C (23 to 113° F)
- Performance: Total Non-Blocking Throughput
- 28 Gbps
