Ubiquiti UICARE-USW-Ultra-210W-EU
Ubiquiti · UICARE-USW-Ultra-210W-EU-D
Lieferzeit auf Anfrage
43,67 €inkl. MwSt., zzgl. Versand
Beschreibung

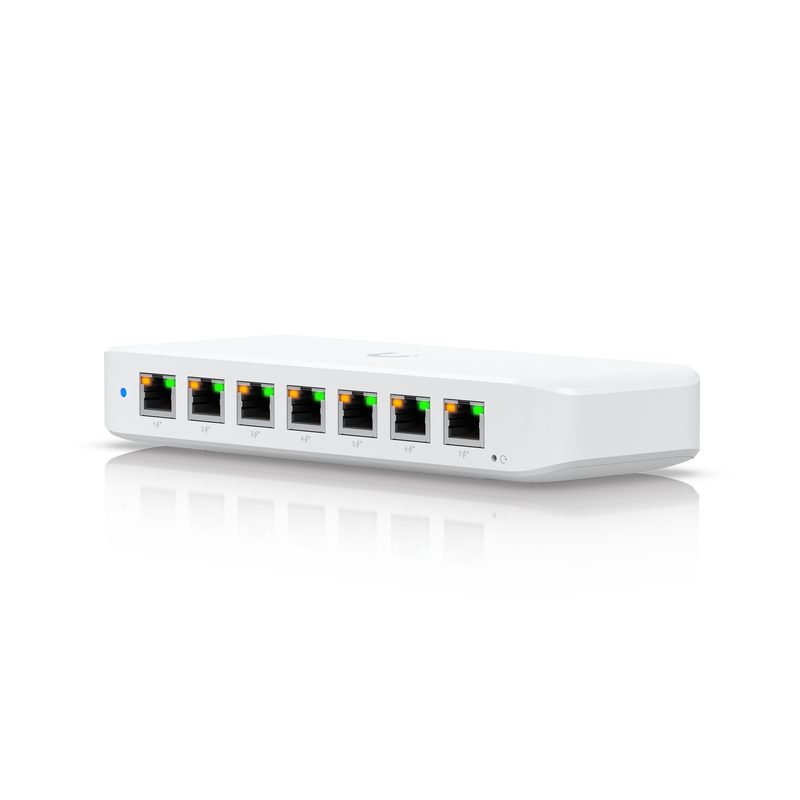

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Technische Daten
- Weight
- 1.2 kg (2.6 lb)
- Treatment
- Painting
- 1 GbE RJ45
- 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
- Dimensions
- 203 x 76 x 33 mm (8 x 3 x 1.3")
- Efficiency
- 85+%
- Form Factor
- Compact desktop, wall, magnetic
- Output Plug
- DC plug: 5.5 x 2.1 x 11.5 mm (0.2 x 0.08 x 0.5") DC cable: UL11353 16AWG 1.5 m (4.9 ft)
- Power Cable
- Included
- AC Connector
- C14 INLET (input)
- Power Method
- Universal AC input, 100–240V AC, 50/60 Hz
- Power Supply
- AC/DC
- Compatibility
- Utility Switching (Except Lite 8/16 PoE, Enterprise 8 PoE, Pro 8 PoE) Compact Cloud Gateway (UCG & UX series) Advance Hosting (UXG & UCK-G2 series) Special Device (AI-Key, UMR series, UPL-Port)
- Data In / PoE
- RJ45 Shielded Socket
- Input Current
- 1.3A @ 120V AC
- Output Ripple
- 1% Max.
- Rated Voltage
- 100–240V AC at 50/60Hz
- Response Time
- <1 ns
- Certifications
- CE, FCC, IC, UKCA, KC, CCC, RoHS
- Hardware: PoE+
- 7
- Inrush Current
- <100A peak @ 120V AC <200A peak @ 230V AC
- Output Voltage
- 48V DC at 1.25A
- 4-pair Powering
- Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- Hardware: PoE++
- 1
- Line Regulation
- ≤ 1%
- Load Regulation
- ≤ 3%
- Max. PoE Output
- Up to PoE+
- Hardware: Weight
- Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 770 g (1.7 lb)
- Surge Protection
- Difference and common mode
- Shunt Capacitance
- <5 pF data
- Enclosure Material
- Polycarbonate
- Peak Pulse Current
- 36A (10/1000 μs) data
- Clamping Protection
- 11V Data, 60V power
- Switching Frequency
- 65 kHz
- Hardware: Management
- Ethernet
- Max. Surge Discharge
- 1500A (8/20 μs) power
- Hardware: Power Method
- (1) AC/DC adapter (Included) (1) PoE++
- Hardware: Power Supply
- AC/DC, external, 210W
- Total PoE Availability
- PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W
- Device-Clamping Support
- Max. width 42.5 mm (1.6")
- Software: UniFi Network
- Version 8.0.7 and later
- Supported Voltage Range
- Input: 100–240V AC Output: 54V DC
- Hardware: Certifications
- CE, FCC, IC, Anatel: 06367-24-08356
- Hardware: Mount Material
- Polycarbonate
- Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Heat Dissipation
- 31 BTU/hr (Excluding PoE Output)
- Ambient Storage Temperature
- -30 to 70°C (-22 to 158° F)
- Hardware: Enclosure Material
- Polycarbonate
- Hardware: Power Input Method
- DC Input PoE
- Performance: Forwarding Rate
- 12 Mpps
- Performance: Supported VLANs
- 256
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Performance: Switching Capacity
- 16 Gbps
- Hardware: Max. Power Consumption
- 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input
- Hardware: Supported Voltage Range
- 50–57V DC/PoE
- Max. PoE+ Wattage per Port by PSE
- 60W
- Performance: MAC Address Table Size
- 4,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- PoE++ input: -30 to 60° C (-22 to 140° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F)
- Performance: Total Non-Blocking Throughput
- 8 Gbps
