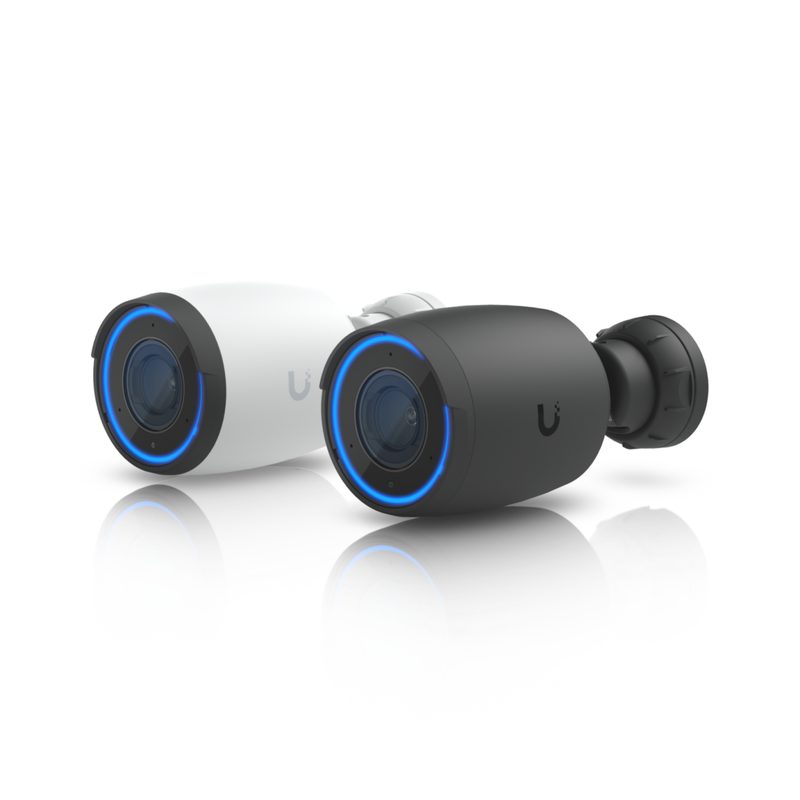

Ubiquiti UICARE-UVC-AI-Pro
Ubiquiti · UICARE-UVC-AI-Pro-D
Lieferzeit auf Anfrage
97,33 €inkl. MwSt., zzgl. Versand
Beschreibung
Indoor/outdoor 4K PoE camera with 3x optical zoom, long-range IR night vision, and enhanced AI detection capabilities.
Technische Daten
- Audio
- Two-way audio
- Weight
- 183 g (6.5 oz)
- Mounting
- Wall, ceiling, pole mount (Included) Junction box, angled base (Optional)
- Connector
- (2) Shielding RJ45
- Standards
- TIA/EIA-568-B.2 ISO/IEC 11801
- Zoom Mode
- 3x Optical
- Dimensions
- Without mount: ⌀86 x 112.6 mm (⌀3.4 x 4.4") With mount: ⌀86 x 175.3 mm (⌀3.4 x 6.9")
- Resolution
- 4K
- Bend Radius
- Min. 50.4 mm (1.98'')
- Flame Rating
- VW-1 (UL1581)
- Pack Options
- Single Unit
- Compatibility
- UVC-AI-Dome UVC-AI-Turret UVC-AI-Pro UVC-AI-DSLR UVC-AI-LPR UVC-G6-Bullet UVC-G6-Edge-Bullet UVC-G6-Pro-Bullet UVC-G6-Turret UVC-G6-Pro-Turret UVC-G6-Edge-Turret UVC-G6-PTZ UVC-G6-Dome UVC-G6-Pro-Dome
- Field of View
- Wide: H: 109.9°, V: 59.9°, D: 127.7° Zoom: H: 34.9°, V: 19.7°, D: 40°
- UV Resistance
- ASTM G 151/154
- Conductor Type
- Stranded copper
- Shielding Type
- S/FTP
- IR Night Vision
- 25 m (82 ft) Up to 40 m (131 ft) with Vision Enhancer
- Jacket Diameter
- 6.3 mm (0.25")
- Jacket Material
- Thermoplastic elastomer (TPE)
- Weatherproofing
- IP65
- Available Colors
- Black White
- Hardware: Button
- (1) Factory reset
- Hardware: Lights
- 5700K, 600 lm
- Hardware: Weight
- Without mount: 675 g (1.5 lb) With mount: 820 g (1.8 lb)
- Threaded Outlets
- G3/4"
- Available Lengths
- 1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)
- Grid overview: AI
- Enhanced AI
- Grid overview: IR
- 25 m (82 ft)
- Mounting Material
- Stainless steel
- Performance: Lens
- F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3
- Tamper Resistance
- IK04
- Enclosure Material
- Polycarbonate
- Mechanical: Weight
- 490 g (1.1 lb)
- Supported PoE Type
- Up to PoE+++
- Conductor Wire Gage
- 24 AWG
- Grid overview: Zoom
- 3x Optical Zoom
- Hardware: Processor
- Quad-core Arm® Cortex®-A53 based chip
- Performance: Sensor
- 1/1.8" 8MP
- Pole Mount Diameter
- 1.5–2" (38–50 mm)
- Supported Data Rate
- GbE
- Grid overview: Sound
- Two-Way Audio
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Software: Mobile App
- UniFi Protect iOS™ and Android™
- Hardware: IR distance
- 40 m (131 ft)
- Operating Environment
- Outdoor
- Hardware: Power Method
- PoE
- Hardware: Power Supply
- 5V DC, 3A
- Mechanical: Dimensions
- 130 x 155 x 126 mm (5.1 x 6.1 x 5")
- Performance: Night Mode
- Built-in IR LED illumination and an IR cut filter
- Performance: Resolution
- 8MP 3840 x 2160 (16:9)
- UniFi Application Suite
- Protect
- Hardware: Certifications
- CE, FCC, IC
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Mount Material
- Aluminum alloy
- Installation Temperature
- -20 to 60°C (-4 to 140°F)
- Grid overview: Resistance
- IK04
- Grid overview: View Angle
- Wide: H: 109.9°, V: 59.9°, D: 127.7° Zoom: H: 34.9°, V: 19.7°, D: 40°
- Hardware: Detection Range
- Person: 0.5–20 m (1.6–65.6 ft) Vehicle: 2–35 m (6.6–115 ft)
- Software: Web Application
- UniFi Protect
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Mechanical: Mount Material
- Aluminum alloy
- Ambient Storage Temperature
- -40 to 80°C (-40 to 176°F)
- Grid overview: Weatherproof
- Outdoor Exposed
- Hardware: Discharge Current
- 10kA+
- Hardware: Distance Accuracy
- 0.5 m (1.6 ft)
- Mechanical: Weatherproofing
- IPX5
- Performance: Image Settings
- Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
- Hardware: Enclosure Material
- Aluminum alloy, polycarbonate
- Hardware: Field of Detection
- H: 110°
- Performance: Max. Frame Rate
- 30 FPS
- Ambient Operating Temperature
- -30 to 75°C (-22 to 167°F)
- Hardware: Pole Mount Diameter
- 1.5–2" (38–50 mm)
- Grid overview: Lens Resolution
- 4K
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (2) RJ45 female connectors
- Mechanical: Enclosure Material
- Aluminum alloy, polycarbonate
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Hardware: Max. Power Consumption
- Device: 11W Device with Enhancer: 22W
- Hardware: Supported Voltage Range
- 37—57V DC
- Performance: Networking Interface
- GbE RJ45 port
- Supported Gang and Junction Boxes
- 1-gang 2-gang 4" octagon 3.5" round 4" square 4" round European outlet
- Hardware: Recommended Mounting Tilt
- 0–30°
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Recommended Mounting Height
- 2–5 m (6.6–16.4 ft)
- Hardware: Ambient Operating Temperature
- -20 to 40° C (-4 to 104° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
