Ubiquiti UICARE-UP-AlarmHub-Kit
Ubiquiti · UICARE-UP-AlarmHub-Kit-D
Lieferzeit auf Anfrage
125,47 €inkl. MwSt., zzgl. Versand
Beschreibung

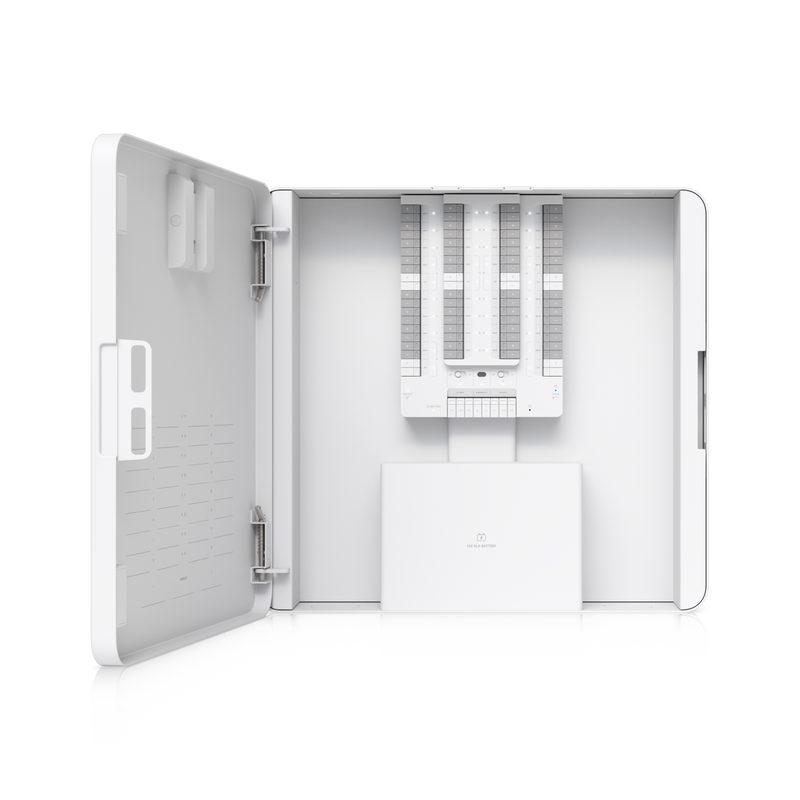

32 input zone alarm control hub for hardwire intrusion sensors powered using PoE++ input and optional battery backup.
Technische Daten
- Weight
- 210 g (7.4 oz)
- Mounting
- Wall and DIN rail mount
- Dimensions
- 379 x 355 x 105 mm (15 x 14 x 4.1")
- Efficiency
- 85+%
- Power Cable
- Included
- AC Connector
- IEC-320 C6
- Power Method
- PoE++/PoE+++ 12V SLA battery
- Power Supply
- AC/DC
- Data In / PoE
- RJ45 Shielded Socket
- Input Current
- 1.3A @ 120V AC
- Output Ripple
- 1% Max.
- Rated Voltage
- 100–240V AC at 50/60Hz
- Response Time
- <1 ns
- Certifications
- CE, FCC, IC, UKCA, KC, CCC, RoHS
- Hardware: LEDs
- W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
- Inrush Current
- <100A peak @ 120V AC <200A peak @ 230V AC
- Output Voltage
- 48V DC at 1.25A
- 4-pair Powering
- Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- Input Terminals
- (32) Alarm sensor (1) Emergency
- Line Regulation
- ≤ 1%
- Load Regulation
- ≤ 3%
- Hardware: Weight
- 179 g (6.3 oz)
- Surge Protection
- Difference and common mode
- Hardware: Buttons
- (1) Factory reset (2) Dry/Wet switch
- Shunt Capacitance
- <5 pF data
- Grid overview: PoE
- 1 PoE Port
- Mechanical: Weight
- Device: 8.3 kg (18.3 lb) Mount: 624 g (1.4 lb)
- Peak Pulse Current
- 36A (10/1000 μs) data
- Clamping Protection
- 11V Data, 60V power
- Switching Frequency
- 65 kHz
- Max. Surge Discharge
- 1500A (8/20 μs) power
- Mechanical: Mounting
- Wall
- Software: Mobile App
- UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later
- Hardware: Output Relay
- (2) Wet/Dry Wet: 12V DC, 1A Dry: 30V DC, 1A
- Hardware: Power Method
- PoE USB Type-C, 5V, 1A (Optional)
- Performance: Bluetooth
- 2400–2480 MHz
- Performance: SuperLink
- US: 915.6–927.6 MHz EU: 865.1–869.5 MHz JP: 920.5–922.3 MHz
- Hardware: Digital Input
- (32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) (1) Emergency
- Hardware: PoE Interface
- (1) PoE++/PoE+++ input, 54V DC, 60W/90W (1) PoE+ output, 54V DC, 30W
- Software: UniFi Protect
- Version 7.0.88 and later
- Supported Voltage Range
- 100–240V AC
- UniFi Application Suite
- Protect
- Hardware: Battery Charge
- SLA backup battery, 12V, 0.3A
- Hardware: Certifications
- CE, FCC, IC
- Hardware: Mount Material
- Polycarbonate
- Performance: Connectivity
- Bluetooth® 5.2 SuperLink (Proprietary)
- Power Output Availability
- PoE+++ input: 68W PoE++ input: 42W
- Software: Web Application
- UniFi Protect
- Ambient Operating Humidity
- 10 to 95% noncondensing
- Hardware: Aux Power Output
- For sensor: (3) 12V DC, 1A right side total, (3) 12V DC, 1A left side total
- Mechanical: Mount Material
- SGCC steel
- Ambient Storage Temperature
- -30 to 70°C (-22 to 158° F)
- Hardware: Antenna Connector
- (1) RP-SMA female
- Grid overview: AUX Terminals
- 2 AUX Terminals
- Hardware: Enclosure Material
- Polycarbonate, aluminum alloy
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Hardware: Networking Interface
- (1) 10/100 MbE RJ45 port
- Mechanical: Enclosure Material
- SGCC steel housing with polycarbonate cover
- Hardware: Indoor and Outdoor Use
- Indoor only
- Hardware: Max. Power Consumption
- 90W
- Max. PoE+ Wattage per Port by PSE
- 60W
- Performance: Networking Interface
- (1) 10/100 MbE RJ45 port
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -10 to 40° C (14 to 104° F)
