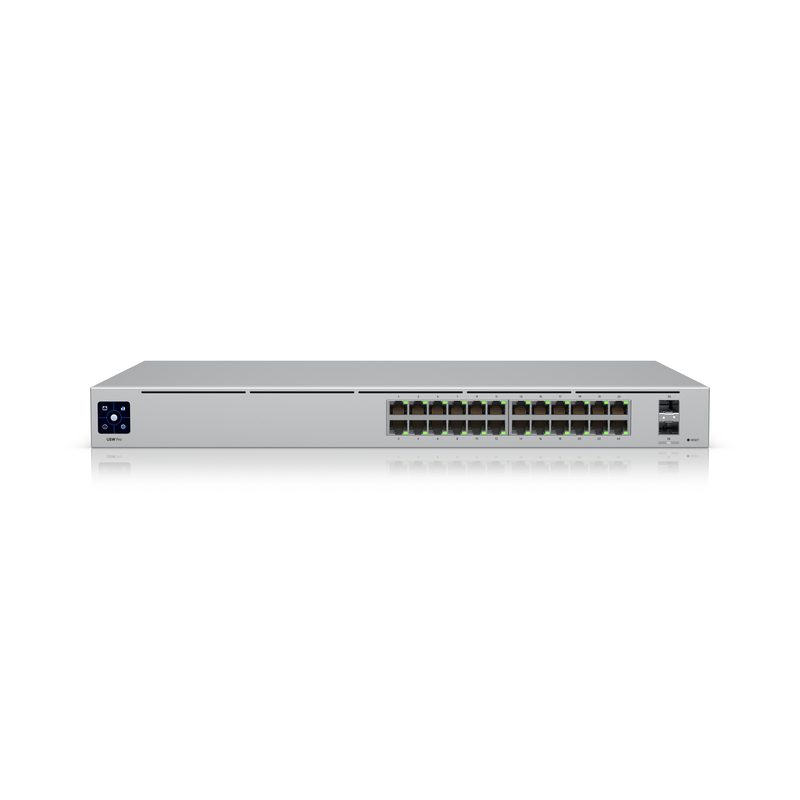

24+2P Ubiquiti UniFi USW-Pro-24-PoE 400W PoE++ M RM
Ubiquiti · USW-PRO-24-POE · EAN 0817882027649
sofort lieferbar
784,72 €inkl. MwSt., zzgl. Versand
Beschreibung
A 24-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.
Technische Daten
- Wire
- Copper
- Höhe
- 11,0 cm
- Tiefe
- 14,0 cm
- Breite
- 13,0 cm
- Gewicht
- 6,160 kg
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- 10G SFP+
- 2 (10G/1G)
- Connector
- Duplex LC UPC
- 1 GbE RJ45
- 24 (1G/100M/10M)
- Dimensions
- 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
- Redundancy
- DC Power Backup
- Bend Radius
- 0.5 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")
- Form Factor
- Rack mount (1U)
- Wave Length
- 850 nm
- Jacket Color
- Black
- Pack Options
- 2-Pack 20-Pack
- RX Wavelength
- 1310 nm
- TX Wavelength
- 1310 nm
- Connector Type
- SFP+ to SFP+
- Jacket Material
- PVC
- Supported Media
- Single-Mode Fiber
- Hardware: Weight
- Without mounting brackets: 3.5 kg (7.7 lb) With mounting brackets: 3.6 kg (7.9 lb)
- Performance: MAC
- 128
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Performance: IPv4
- 128
- Supported Data Rate
- 1 / 10 Gbps
- Hardware: Management
- Ethernet AR
- Hardware: LCM Display
- 1.3" touchscreen
- Jacket Outer Diameter
- 0.5/ 1m: 4.2 mm (0.17") 3 m: 6 mm (0.24")
- Hardware: Power Method
- (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Hardware: Power Supply
- AC/DC, internal, 36W
- Max. Power Consumption
- 1 W
- Software: UniFi Network
- Version 5.12.11 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 00469-21-08356
- Hardware: ESD Protection
- Air: ± 16kV, contact: ± 12kV
- Hardware: Mount Material
- SGCC steel
- Supported Cable Distance
- 10 km (6.2 mi)
- Hardware: Heat Dissipation
- 102.4 BTU/hr
- Hardware: Enclosure Material
- SGCC steel
- Hardware: Power Input Method
- AC input
- Performance: Forwarding Rate
- 65 Mpps
- Performance: Supported VLANs
- 1,000
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Hardware: Supported Rack Depth
- 400~1200 mm (15.7-47.2")
- Performance: IPv4 Static Routes
- 2
- Performance: Packet Buffer Size
- 2 MB
- Performance: Switching Capacity
- 88 Gbps
- Hardware: Max. Power Consumption
- 30W
- Hardware: Supported Voltage Range
- 100–240V AC
- Performance: MAC Address Table Size
- 16,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -5 to 45° C (23 to 113° F)
- Performance: Total Non-Blocking Throughput
- 44 Gbps
