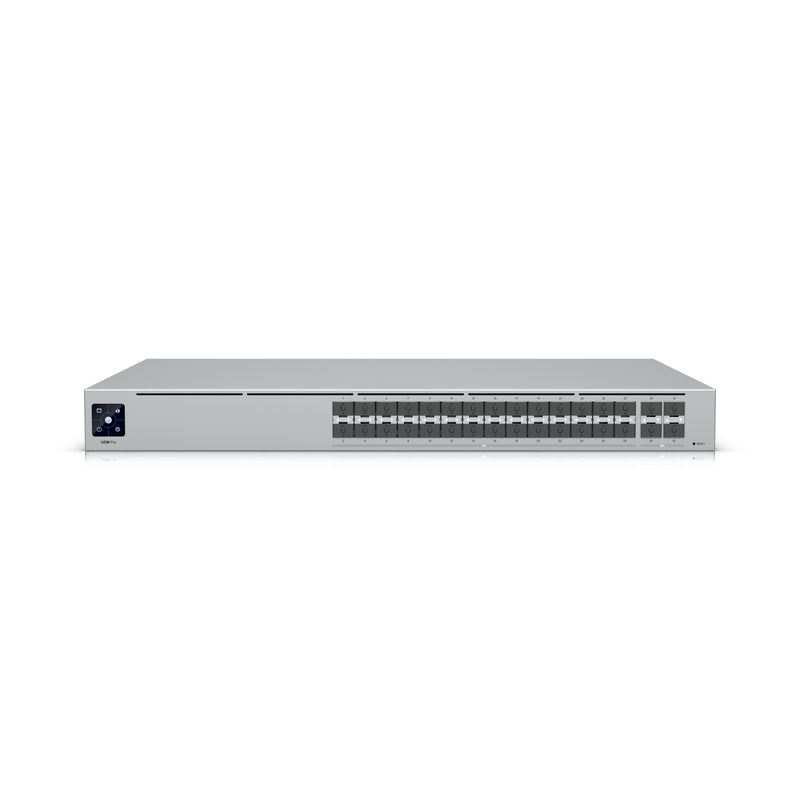

28+4P UbiQuiti UniFi Hi-Capacity Aggregation M RM - USW-Pro-Aggregation
Ubiquiti · USW-PRO-AGGREGATION · EAN 0810010072603
Lieferzeit auf Anfrage
1064,90 €inkl. MwSt., zzgl. Versand
Beschreibung
A 32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.
Technische Daten
- Wire
- Copper
- Höhe
- 1,2 cm
- Tiefe
- 54,0 cm
- Breite
- 4,6 cm
- Gewicht
- 6,400 kg
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- 10G SFP+
- 28 (10G/1G)
- 25G SFP28
- 4 (25G/10G/1G)
- Connector
- Duplex LC UPC
- Dimensions
- 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
- Redundancy
- DC Power Backup
- Bend Radius
- 0.5 / 1 m: Min. 24 mm (0.94") 3 m: Min. 31 mm (1.22")
- Form Factor
- Rack mount (1U)
- Wave Length
- 850 nm
- Jacket Color
- Black
- Pack Options
- Single Unit 2-Pack 20-Pack
- RX Wavelength
- 850 nm
- TX Wavelength
- 850 nm
- Connector Type
- SFP28 to SFP28
- Jacket Material
- PVC
- Supported Media
- Multi-Mode Fiber
- Hardware: Weight
- Without mounting brackets: 4.6 kg (10.1 lb) With mounting brackets: 4.7 kg (10.4 lb)
- Performance: MAC
- 128
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Performance: IPv4
- 128
- Supported Data Rate
- 1 / 10 Gbps
- Hardware: Management
- Ethernet AR
- Hardware: LCM Display
- 1.3" touchscreen
- Jacket Outer Diameter
- 0.5/ 1m: 4.5 mm (0.18") 3 m: 5.6 mm (0.22")
- Hardware: Power Method
- (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Hardware: Power Supply
- AC/DC, internal, 100W
- Max. Power Consumption
- 0.8 W
- Software: UniFi Network
- Version 6.1.25 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 20756-22-08356
- Hardware: ESD Protection
- Air: ± 16kV, contact: ± 12kV
- Hardware: Mount Material
- SGCC steel
- Supported Cable Distance
- OM4 - 400 m (1312 ft) OM3 - 300 m (984 ft)
- Hardware: Heat Dissipation
- 341 BTU/hr
- Hardware: Enclosure Material
- SGCC steel
- Hardware: Power Input Method
- AC input
- Performance: Forwarding Rate
- 565 Mpps
- Performance: Supported VLANs
- 1,000
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Hardware: Supported Rack Depth
- 400~1200 mm (15.7-47.2")
- Performance: IPv4 Static Routes
- 256
- Performance: Packet Buffer Size
- 4 MB
- Performance: Switching Capacity
- 760 Gbps
- Hardware: Max. Power Consumption
- 100W
- Hardware: Supported Voltage Range
- 100–240V AC
- Performance: MAC Address Table Size
- 32,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -5 to 40° C (23 to 104° F)
- Performance: Total Non-Blocking Throughput
- 380 Gbps
