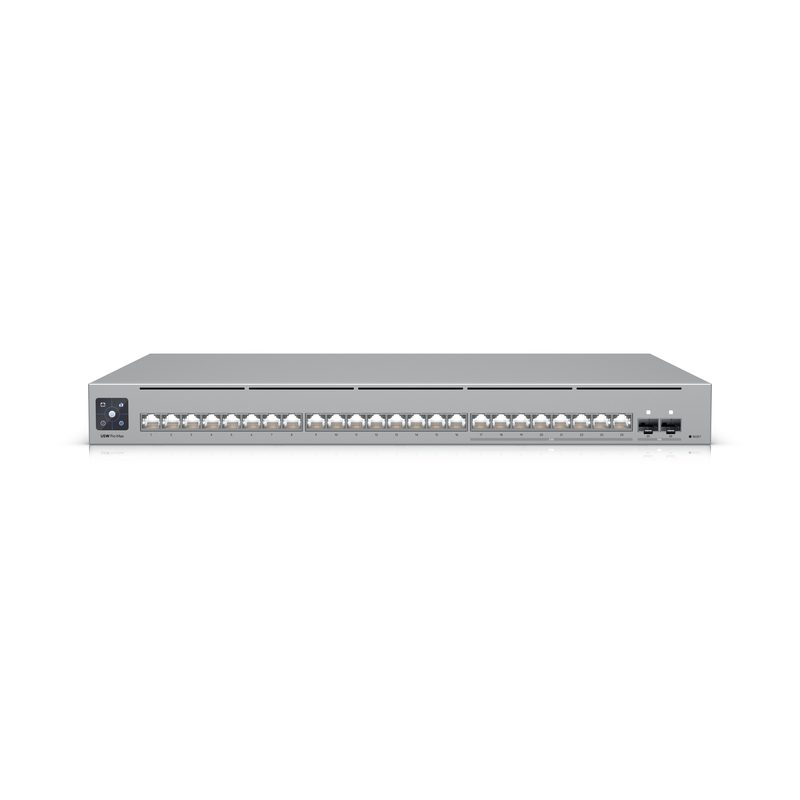

24+2P Ubiquiti UniFi USW-Pro-Max-24 M RM

Beschreibung

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

Technische Daten

Wire

Copper

Höhe

12,5 cm

Tiefe

52,0 cm

Breite

43,0 cm

Gewicht

5,156 kg

WARNING

CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.

10G SFP+

2 (10G/1G)

Connector

Duplex LC UPC

Standards

TIA/EIA-568-B.2 ISO/IEC 11801

1 GbE RJ45

16 (1G/100M/10M)

Dimensions

442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

Redundancy

DC Power Backup

Bend Radius

0.5 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")

Form Factor

Rack mount (1U)

Wave Length

850 nm

2.5 GbE RJ45

8 (2.5G/1G/100M/10M)

Flame Rating

VW-1 (UL1581)

Jacket Color

Black

Pack Options

2-Pack 20-Pack

RX Wavelength

1310 nm

TX Wavelength

1310 nm

Conductor Type

Stranded copper

Connector Type

SFP+ to SFP+

Shielding Type

UTP

Jacket Diameter

0.15-8 m: 2.5 mm (0.1") 12-15 m: 2.9 mm (0.11")

Jacket Material

PVC

Supported Media

Single-Mode Fiber

Available Colors

White

Hardware: Weight

Without mounting brackets: 4.2 kg (9.3 lb) With mounting brackets: 4.3 kg (9.5 lb)

Performance: MAC

128

Available Lengths

0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)

Performance: IPv4

128

Supported PoE Type

Up to PoE+++

Conductor Wire Gage

1–8 m (3–26 ft): 34 AWG 12–15 m (39–49 ft): 32 AWG

Supported Data Rate

1 / 10 Gbps

Hardware: Management

Ethernet AR

Hardware: LCM Display

1.3" touchscreen

Jacket Outer Diameter

0.5/ 1m: 4.2 mm (0.17") 3 m: 6 mm (0.24")

Operating Environment

Indoor

Hardware: Power Method

(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input

Hardware: Power Supply

AC/DC, internal, 60W

Max. Power Consumption

1 W

Software: UniFi Network

Version 8.0.24 and later

Hardware: Certifications

CE, FCC, IC, Anatel: 06374-24-08356

Hardware: ESD Protection

Air: ± 16kV, contact: ± 12kV

Hardware: Mount Material

SGCC steel

Installation Temperature

-20 to 60°C (–4 to 140°F)

Supported Cable Distance

10 km (6.2 mi)

Hardware: Heat Dissipation

170.6 BTU/hr

Ambient Storage Temperature

-20 to 75°C (–4 to 167°F)

Hardware: Enclosure Material

SGCC steel

Hardware: Power Input Method

AC input

Performance: Forwarding Rate

83 Mpps

Performance: Supported VLANs

1,000

Ambient Operating Temperature

0 to 70° C (32 to 158° F)

Hardware: Supported Rack Depth

400~1200 mm (15.7-47.2")

Performance: IPv4 Static Routes

256

Performance: Packet Buffer Size

1.5 MB

Performance: Switching Capacity

112 Gbps

Hardware: Max. Power Consumption

50W

Hardware: Supported Voltage Range

100–240V AC

Performance: MAC Address Table Size

16,000

Hardware: Ambient Operating Humidity

10 to 90% noncondensing

Hardware: Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Performance: Total Non-Blocking Throughput

56 Gbps
