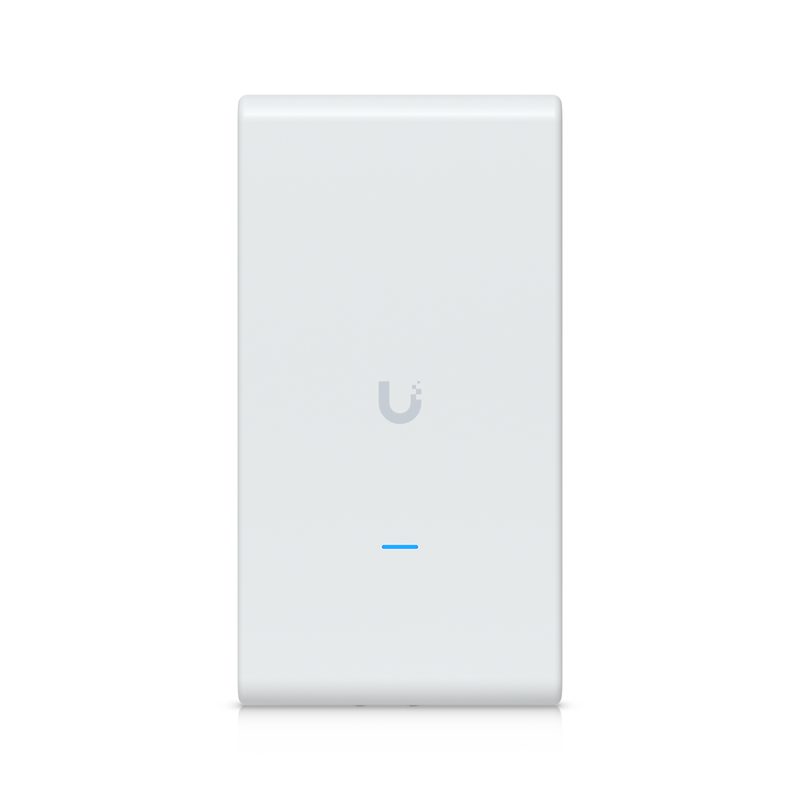

Ubiquiti UniFi U6-Mesh-Pro Wifi 6
Ubiquiti · U6-MESH-PRO · EAN 0810084695180
sofort lieferbar
240,69 €inkl. MwSt., zzgl. Versand
Beschreibung
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
Technische Daten
- Höhe
- 11,5 cm
- Tiefe
- 40,0 cm
- Breite
- 24,5 cm
- Uplink
- GbE
- Gewicht
- 2,026 kg
- Mounting
- Wall, Pole (Mounts Included)
- Dimensions
- 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
- Power Method
- PoE
- Coverage Area
- 185 m² (2,000 ft²)
- WiFi Standard
- WiFi 6
- Spatial Streams
- 4
- Weatherproofing
- IPX6
- Hardware: System
- White/Blue
- Hardware: Weight
- 819 g (1.8 lb)
- Max. Client Count
- 250+
- Mechanical: Weight
- 80 g (2.8 oz)
- Performance: 5 GHz
- 2 x 2 (DL/UL MU MIMO)
- Grid overview: WiFi6
- WiFi 6
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Hardware: Management
- Ethernet WiFi
- Performance: 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
- Grid overview: Uplink
- GbE
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Software: UniFi Network
- Version 8.1.127 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 06377-24-08356
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Mount Material
- Aluminum alloy, steel
- Performance: Max. BSSIDs
- 8 per Radio
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Hardware: Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IPX5
- Grid overview: Radio/Antenna
- Omnidirectional
- Hardware: Enclosure Material
- UV-stabilized polycarbonate
- Hardware: Operating Frequency
- US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz
- Hardware: Pole Mount Diameter
- 1–2.5" (25–63.5 mm)
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (2) GbE RJ45 ports
- Mechanical: Enclosure Material
- Polycarbonate
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Performance: 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Grid overview: Max. Client Count
- 250
- Hardware: Max. Power Consumption
- 9W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 60° C (-22 to 140° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
