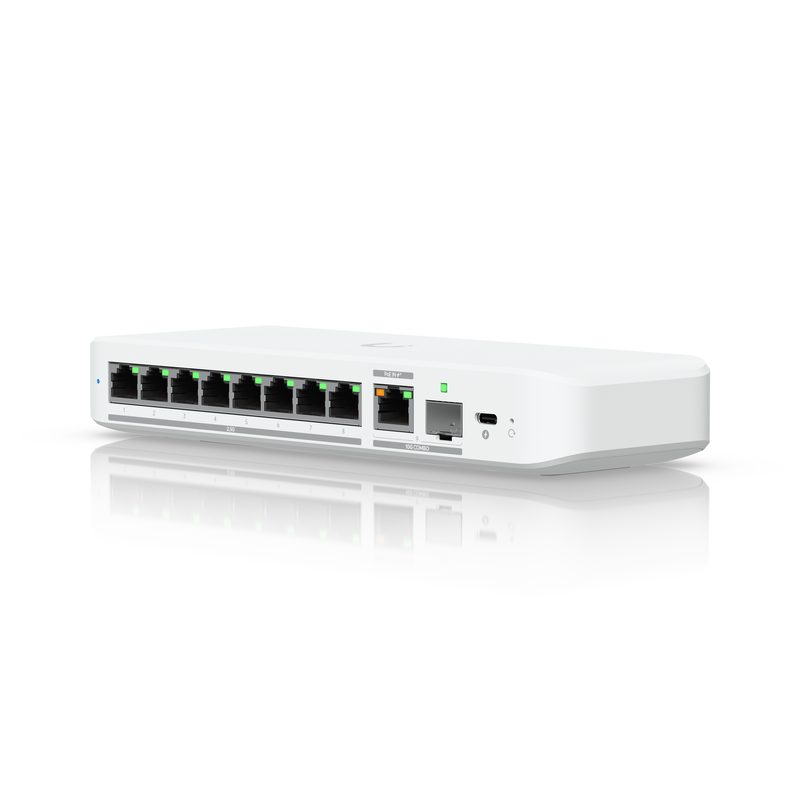

8P Ubiquiti USW-Flex-2.5G-8 M
Ubiquiti · USW-FLEX-2.5G-8 · EAN 0810084696057
sofort lieferbar
189,77 €inkl. MwSt., zzgl. Versand
Beschreibung
Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.
Technische Daten
- Wire
- Copper
- Höhe
- 9,2 cm
- Tiefe
- 24,7 cm
- Breite
- 9,2 cm
- Weight
- 56.1 g (2 oz)
- Gewicht
- 0,760 kg
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- 10G SFP+
- 1 (10G/1G)
- Connector
- Duplex LC UPC
- Treatment
- Painting
- Dimensions
- 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")
- 10 GbE RJ45
- 1 (10G/5G/2.5G/1G/100M)
- Bend Radius
- 0.5 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")
- Form Factor
- Compact Desktop, wall, DIN, magnetic
- Wave Length
- 850 nm
- 2.5 GbE RJ45
- 8 (2.5G/1G/100M/10M)
- Jacket Color
- Black
- Pack Options
- Single Unit
- Compatibility
- Utility Switching (Except Lite 8/16 PoE, Enterprise 8 PoE, Pro 8 PoE) Compact Cloud Gateway (UCG & UX series) Advance Hosting (UXG & UCK-G2 series) Special Device (AI-Key, UMR series, UPL-Port)
- RX Wavelength
- 850 nm
- TX Wavelength
- 850 nm
- Connector Type
- SFP+ to SFP+
- Jacket Material
- PVC
- Supported Media
- Multi-Mode Fiber
- Hardware: Weight
- 395 g (0.87 lb)
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Enclosure Material
- Polycarbonate, silicone rubber
- Supported Data Rate
- 1 / 10 Gbps
- Hardware: Management
- Ethernet
- Jacket Outer Diameter
- 0.5/ 1m: 4.2 mm (0.17") 3 m: 6 mm (0.24")
- Hardware: Power Method
- (1) USB Type-C, 5V DC, 3A (1) PoE+
- Hardware: Power Supply
- AC/DC, external, 15W
- Max. Power Consumption
- 0.8 W
- Device-Clamping Support
- Max. width 42.5 mm (1.6")
- Software: UniFi Network
- Version 9.0.114 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel
- Hardware: Mount Material
- Polycarbonate
- Supported Cable Distance
- OM4 - 400 m (1312 ft) OM3 - 300 m (984 ft)
- Hardware: Enclosure Material
- Polycarbonate
- Hardware: Power Input Method
- USB Input PoE
- Performance: Forwarding Rate
- 45 Mpps
- Performance: Supported VLANs
- 256
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Performance: Switching Capacity
- 60 Gbps
- Hardware: Max. Power Consumption
- 14W with PoE input 14W with AC adapter input
- Hardware: Supported Voltage Range
- 4.8—5.2V DC/USB 44V—57V PoE
- Performance: MAC Address Table Size
- 4,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -20 to 45° C (-4 to 113° F)
- Performance: Total Non-Blocking Throughput
- 30 Gbps
