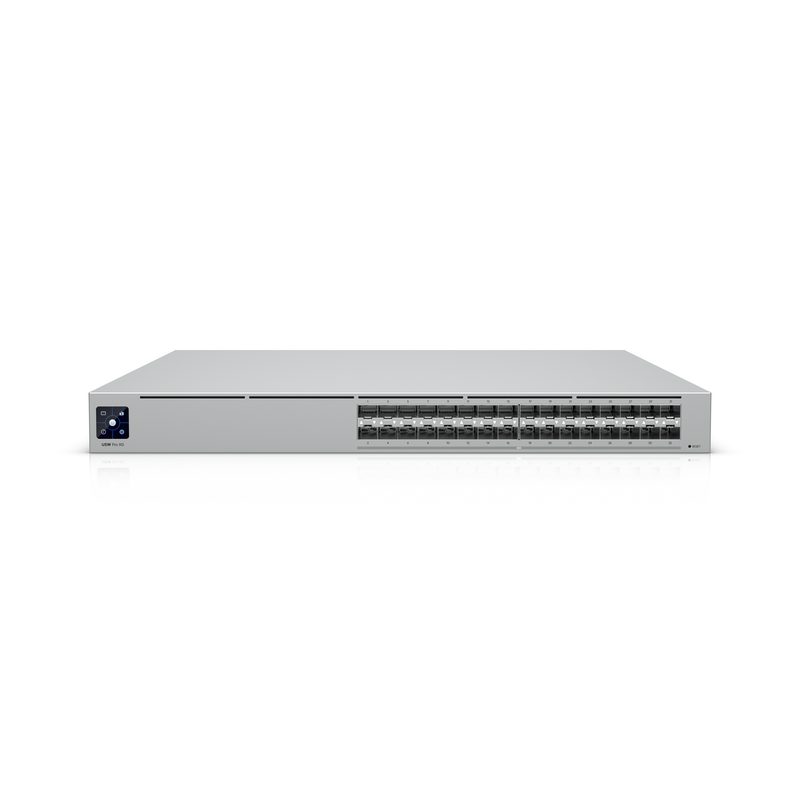

32P Ubiquiti USW-Pro-XG-Aggregation M RM
Ubiquiti · USW-Pro-XG-Aggregation · EAN 0810177163077
sofort lieferbar
2820,11 €inkl. MwSt., zzgl. Versand
Beschreibung
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.
Technische Daten
- Wire
- Copper
- Höhe
- 23,4 cm
- Tiefe
- 76,5 cm
- Breite
- 59,7 cm
- Gewicht
- 12,240 kg
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- 25G SFP28
- 32 (25G/10G/1G)
- Connector
- Duplex LC UPC
- Dimensions
- 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")
- Redundancy
- DC Power Backup
- Bend Radius
- 0.5 / 1 m: Min. 24 mm (0.94") 3 m: Min. 31 mm (1.22")
- Form Factor
- Rack Mount (1U)
- Wave Length
- 850 nm
- Jacket Color
- Black
- Pack Options
- Single Unit
- RX Wavelength
- 850 nm
- TX Wavelength
- 850 nm
- Connector Type
- SFP28 to SFP28
- Jacket Material
- PVC
- Supported Media
- Multi-Mode Fiber
- Hardware: Weight
- Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs)
- Performance: MAC
- 256
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Performance: IPv4
- 256
- Supported Data Rate
- 1 / 10 / 25 Gbps
- Hardware: Management
- Ethernet AR
- Hardware: LCM Display
- 1.3" touchscreen
- Jacket Outer Diameter
- 0.5/ 1m: 4.5 mm (0.18") 3 m: 5.6 mm (0.22")
- Hardware: Power Method
- (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Hardware: Power Supply
- AC/DC, internal, 200W
- Max. Power Consumption
- 0.8 W
- Hardware: Certifications
- CE, FCC, IC, Anatel: 05977-25-08356
- Hardware: ESD Protection
- Air: ± 12kV, contact: ± 8kV
- Hardware: Mount Material
- SGCC steel
- Supported Cable Distance
- OM4 - 100 m (328 ft) OM3 - 70 m (229 ft)
- Hardware: Heat Dissipation
- 682 BTU/hr
- Hardware: Enclosure Material
- SGCC steel
- Hardware: Power Input Method
- AC input
- Performance: Forwarding Rate
- 1.2 Bpps
- Performance: Supported VLANs
- 1,000
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Hardware: Supported Rack Depth
- 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
- Performance: IPv4 Static Routes
- 512
- Performance: Packet Buffer Size
- 8 MB
- Performance: Switching Capacity
- 1.6 Tbps
- Hardware: Max. Power Consumption
- 200W
- Hardware: Supported Voltage Range
- 100–240V AC
- Performance: MAC Address Table Size
- 32,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -5 to 40° C (23 to 104° F)
- Performance: Total Non-Blocking Throughput
- 800 Gbps
