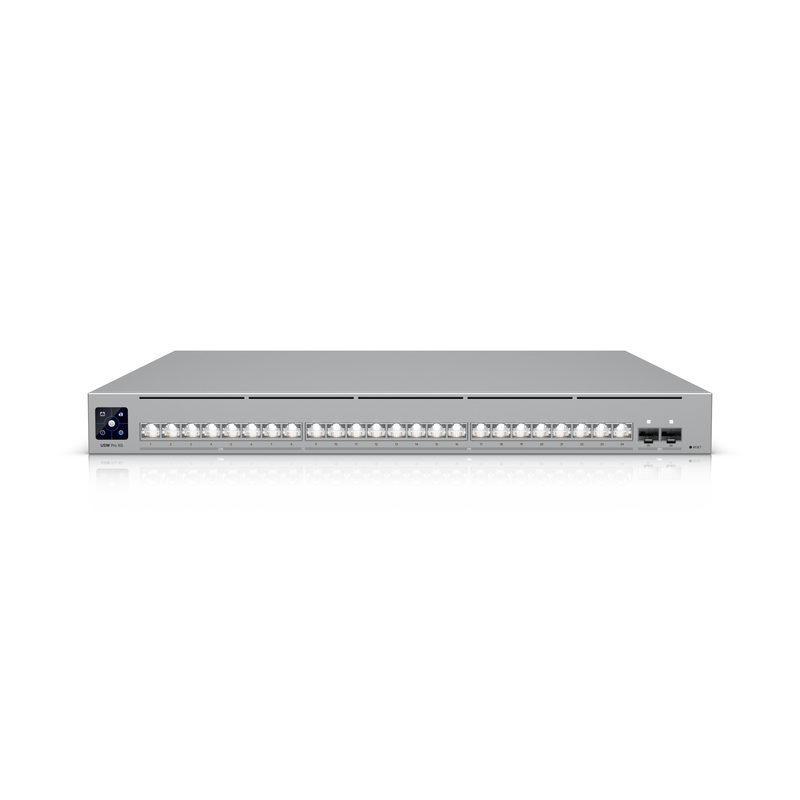

24+2P Ubiquiti USW-Pro-XG-24 M RM
Ubiquiti · USW-Pro-XG-24 · EAN 0810177160779
sofort lieferbar
1239,88 €inkl. MwSt., zzgl. Versand
Beschreibung
Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Technische Daten
- Wire
- Copper
- Höhe
- 23,5 cm
- Tiefe
- 60,0 cm
- Breite
- 76,5 cm
- Weight
- 2.5 kg (5.5 lb)
- Gewicht
- 12,294 kg
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- 25G SFP28
- 2 (25G/10G/1G)
- Connector
- Duplex LC UPC
- Standards
- TIA/EIA-568-B.2 ISO/IEC 11801
- Dimensions
- 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
- Redundancy
- DC Power Backup
- 10 GbE RJ45
- 16 (10G/5G/2.5G/1G/100M/10M)
- Bend Radius
- 0.5 / 1 m: Min. 24 mm (0.94") 3 m: Min. 31 mm (1.22")
- Form Factor
- Rack mount (1U)
- Wave Length
- 850 nm
- 2.5 GbE RJ45
- 8 (2.5G/1G/100M/10M)
- Flame Rating
- VW-1 (UL1581)
- Jacket Color
- Black
- Pack Options
- Single Unit
- RX Wavelength
- 850 nm
- TX Wavelength
- 850 nm
- Conductor Type
- Stranded copper
- Connector Type
- SFP28 to SFP28
- Shielding Type
- UTP
- Jacket Diameter
- 0.15-8 m: 2.5 mm (0.1") 12-15 m: 2.9 mm (0.11")
- Jacket Material
- PVC
- Supported Media
- Multi-Mode Fiber
- Available Colors
- White
- Hardware: Weight
- Without mounting brackets: 7.2 kg (15.9 lb) With mounting brackets: 7.3 kg (16.1 lb)
- Performance: MAC
- 256
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Performance: IPv4
- 256
- Sliding Mechanism
- Ball-bearing
- Enclosure Material
- SGCC steel
- Supported PoE Type
- Up to PoE+++
- Conductor Wire Gage
- 1–8 m (3–26 ft): 34 AWG 12–15 m (39–49 ft): 32 AWG
- Supported Data Rate
- 25 / 10 / 1 Gbps
- Supported Rack Type
- 4-post
- Hardware: Management
- Ethernet AR
- Max. Weight Capacity
- 45 kg (99 lb)
- Supported Rack Depth
- 600—1066 mm (23.6—42")
- Hardware: LCM Display
- 1.3" touchscreen
- Jacket Outer Diameter
- 0.5/ 1m: 4.5 mm (0.18") 3 m: 5.6 mm (0.22")
- Operating Environment
- Indoor
- Hardware: Power Method
- (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Hardware: Power Supply
- AC/DC, internal, 200W
- Max. Power Consumption
- 0.8 W
- Software: UniFi Network
- Version 9.0.114 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 06464-25-08356
- Hardware: ESD Protection
- Air: ± 30kV, contact: ± 20kV
- Hardware: Mount Material
- SGCC steel
- Installation Temperature
- -20 to 60°C (–4 to 140°F)
- Supported Cable Distance
- OM4 - 100 m (328 ft) OM3 - 70 m (229 ft)
- Ambient Storage Temperature
- -20 to 75°C (–4 to 167°F)
- Hardware: Enclosure Material
- SGCC steel
- Hardware: Power Input Method
- AC input
- Performance: Forwarding Rate
- 342 Mpps
- Performance: Supported VLANs
- 1,000
- Supported Mounting Hole Type
- Square
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Hardware: Supported Rack Depth
- 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
- Performance: IPv4 Static Routes
- 512
- Performance: Packet Buffer Size
- 8 MB
- Performance: Switching Capacity
- 460 Gbps
- Hardware: Max. Power Consumption
- 150W
- Hardware: Supported Voltage Range
- 100–240V AC
- Performance: MAC Address Table Size
- 32,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -5 to 40° C (23 to 104° F)
- Performance: Total Non-Blocking Throughput
- 230 Gbps
