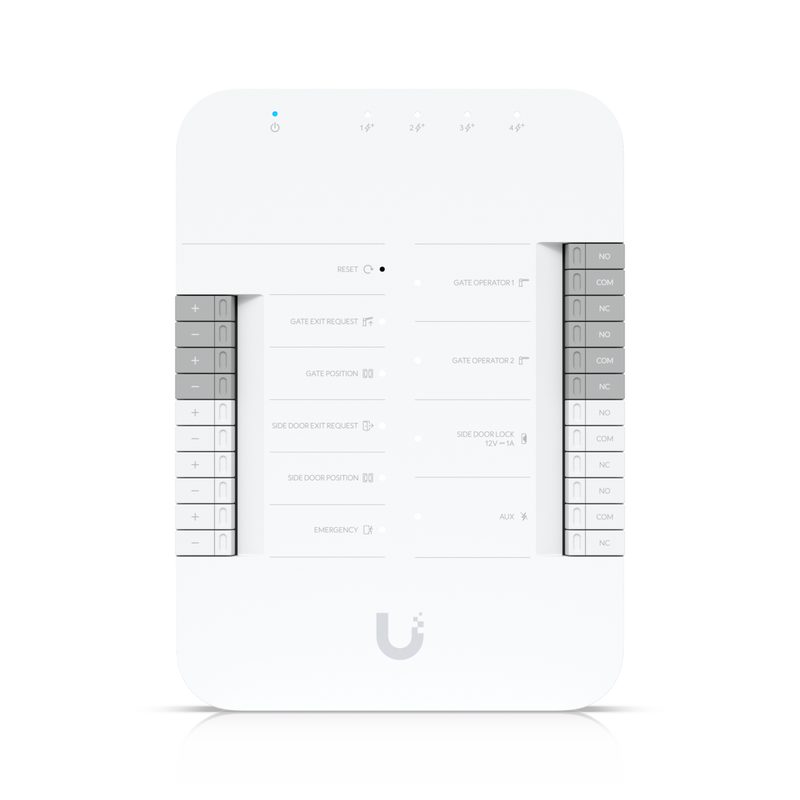

Ubiquiti Gate Access Hub

Beschreibung

An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.

Technische Daten

Audio

Two-way audio

Höhe

5,1 cm

Tiefe

21,2 cm

Breite

16,4 cm

Gewicht

0,669 kg

Mounting

Wall, ceiling, pole mount (Included) Junction box, angled base (Optional)

Zoom Mode

3x Optical

Dimensions

175 x 126 x 26 mm (6.9 x 5 x 1")

Resolution

4K

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Field of View

Wide: H: 109.9°, V: 59.9°, D: 127.7° Zoom: H: 34.9°, V: 19.7°, D: 40°

Hardware: LEDs

W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>

Hardware: Size

177 mm (7") diagonal

IR Night Vision

25 m (82 ft) Up to 40 m (131 ft) with Vision Enhancer

Input Terminals

(1) Gate exit request (1) Gate position (1) Side door exit request (1) Side door position (1) Emergency

Supported Doors

1 gate, 1 side door

Weatherproofing

IP65

Hardware: Button

(1) Factory reset

Hardware: Weight

Without mount: 675 g (1.5 lb) With mount: 820 g (1.8 lb)

Grid overview: AI

Enhanced AI

Grid overview: IR

25 m (82 ft)

Hardware: Buttons

(1) Factory reset

Hardware: Sensors

Proximity sensor ALS sensor

Performance: Lens

F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3

Tamper Resistance

IK04

Grid overview: PoE

4 PoE Ports

Maximum User Count

6,000

Mechanical: Weight

460 g (1 lb)

Grid overview: Zoom

3x Optical Zoom

Hardware: Luminance

Max. 1000 nits (Typical)

Hardware: Processor

Quad-core Arm® Cortex®-A53 based chip

Performance: Sensor

1/1.8" 8MP

Grid overview: Sound

Two-Way Audio

Hardware: Resolution

2MP 1200 x 1600 (3:4)

Mechanical: Mounting

DIN-rail (Included)

Grid overview: Display

Touch Display

Hardware: Connectivity

BLE 4.2 NFC

Hardware: Power Method

PoE

Hardware: Digital Input

Gate exit request, gate position, side door exit request, side door position, emergency

Hardware: Field of View

H: 79.4°, V: 97.5°, D: 118.2°

Hardware: NFC Frequency

13.56 MHz

Hardware: PoE Interface

(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 55W aggregated)

Performance: Night Mode

Built-in IR LED illumination and an IR cut filter

Performance: Resolution

8MP 3840 x 2160 (16:9)

UniFi Application Suite

Protect

Hardware: Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Hardware: Mount Material

Aluminum alloy

Hardware: NFC Read Range

< 30 mm (1.18'')

Hardware: NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T

Grid overview: Resistance

IK04

Grid overview: View Angle

Wide: H: 109.9°, V: 59.9°, D: 127.7° Zoom: H: 34.9°, V: 19.7°, D: 40°

Hardware: Max. Frame Rate

30 FPS

Hardware: Dry Output Relay

(2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A

Hardware: Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Hardware: UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power

Mechanical: Mount Material

Powder-coated stainless steel

Grid overview: Weatherproof

Outdoor Exposed

Hardware: Screen Technology

Capacitive multi-touch

Performance: Image Settings

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Grid overview: AUX Terminals

1 AUX terminal

Hardware: Enclosure Material

Aluminum alloy, polycarbonate

Hardware: Screen Orientation

Portrait

Performance: Max. Frame Rate

30 FPS

Grid overview: Lock Terminals

1 Lock terminal

Hardware: Pole Mount Diameter

1.5–2" (38–50 mm)

Grid overview: Lens Resolution

4K

Grid overview: Physical Unlock

Keypad Unlock

Hardware: Networking Interface

(5) 10/100/1000 Base-T

Hardware: Powered Output Relay

Side door lock: 12V DC, up to 1A

Mechanical: Enclosure Material

Polycarbonate

Software: Software Information

The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Grid overview: Additional Inputs

5 Additional Inputs

Hardware: Indoor and Outdoor Use

Indoor only: device itself Outdoor: with waterproof junction box

Hardware: Max. Power Consumption

22W (Without PoE output) 60W (With PoE output)

Software: Management Application

Access

Hardware: Supported Voltage Range

37—57V DC

Performance: Networking Interface

GbE RJ45 port

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: I

Hardware: PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per

Hardware: UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

Hardware: Ambient Operating Humidity

5 to 90% noncondensing

Hardware: Ambient Operating Temperature

-30 to 60° C (-22 to 140° F)

Hardware: UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

Hardware: Document number, and issue date and/or revision le

UA-Hub-Gate, V01
