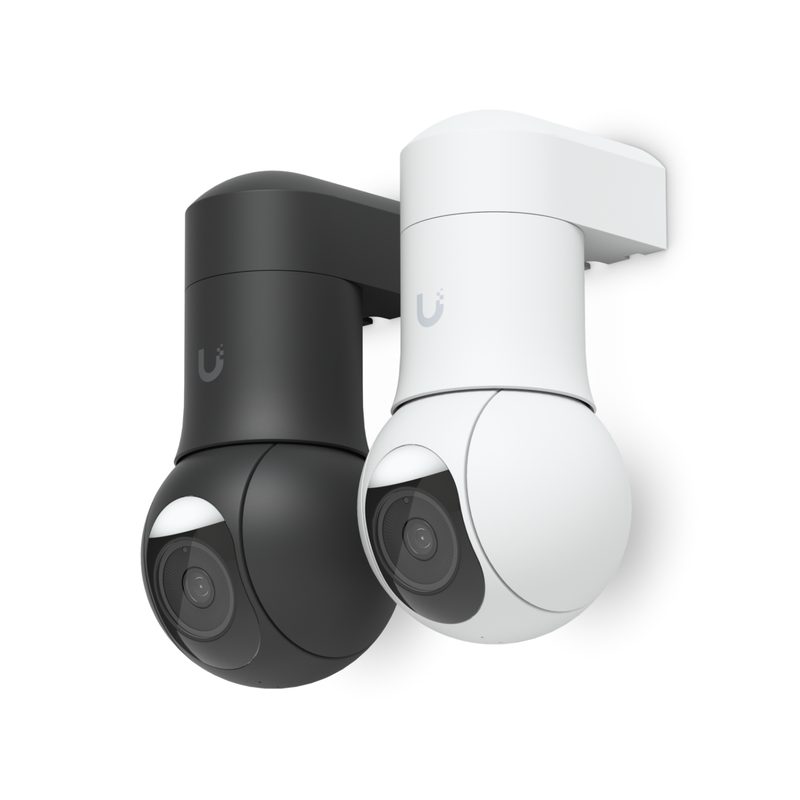

Ubiquiti UniFi Video Camera G5 PTZ Outdoor 2K InfraRot IP66 POE+ UVC-G5-PTZ
Ubiquiti · UVC-G5-PTZ · EAN 0810084693582
sofort lieferbar
342,57 €inkl. MwSt., zzgl. Versand
Beschreibung
Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
Technische Daten
- Audio
- Microphone
- Höhe
- 11,5 cm
- Tiefe
- 26,0 cm
- Breite
- 14,0 cm
- Weight
- 144 g (5.1 oz)
- Gewicht
- 0,919 kg
- Mounting
- Wall mount, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional)
- Connector
- (2) Shielding RJ45
- Standards
- TIA/EIA-568-B.2 ISO/IEC 11801
- Zoom Mode
- 2x Optical
- Dimensions
- Without mount: ⌀90 x 152.5 mm (⌀3.5 x 6") With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7")
- Resolution
- 2K
- Bend Radius
- Min. 50.4 mm (1.98'')
- Flame Rating
- VW-1 (UL1581)
- Pack Options
- Single Unit
- Compatibility
- UVC-G5-PTZ
- Field of View
- Wide: H: 99.7°, V: 51.9°, D: 121° Tele: H: 45.5°, V: 25.4°, D: 52.4°
- UV Resistance
- ASTM G 151/154
- Conductor Type
- Stranded copper
- Pan-Tilt Range
- Pan: 350° Tilt: 100°
- Shielding Type
- S/FTP
- IR Night Vision
- 20 m (65 ft)
- Jacket Diameter
- 6.3 mm (0.25")
- Jacket Material
- Thermoplastic elastomer (TPE)
- Weatherproofing
- IP66
- Available Colors
- White, Black
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb)
- Threaded Outlets
- G3/4"
- Available Lengths
- 1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)
- Grid overview: AI
- AI Detections
- Grid overview: IR
- 20 m (65 ft)
- Mounting Material
- Polycarbonate
- Performance: Lens
- F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4
- Tamper Resistance
- IK04
- Enclosure Material
- Polycarbonate
- Mechanical: Weight
- 80 g (2.8 oz)
- Supported PoE Type
- Up to PoE+++
- Conductor Wire Gage
- 24 AWG
- Grid overview: Zoom
- 2x Optical Zoom
- Performance: Sensor
- 5MP 1/2.7" CMOS
- Supported Data Rate
- GbE
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Operating Environment
- Outdoor
- Hardware: Power Method
- PoE+
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Performance: Night Mode
- Built-in IR & white LED illumination with IR cut filter
- Performance: Resolution
- 4MP 2688 x 1512 (16:9)
- UniFi Application Suite
- Protect
- Hardware: Certifications
- CE, FCC, IC
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Mount Material
- Wall mount: polycarbonate Pole mount: aluminum alloy
- Installation Temperature
- -20 to 60°C (-4 to 140°F)
- Grid overview: Resistance
- IK04
- Grid overview: View Angle
- 16:9 Wide: H: 99.7°, V: 51.9°, D: 121° 16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4°
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Ambient Storage Temperature
- -40 to 80°C (-40 to 176°F)
- Grid overview: Weatherproof
- Outdoor Exposed
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IPX5
- Hardware: Enclosure Material
- Aluminum alloy, polycarbonate
- Performance: Max. Frame Rate
- 30 FPS
- Ambient Operating Temperature
- -30 to 75°C (-22 to 167°F)
- Hardware: Pole Mount Diameter
- 1.5–2" (38–50 mm)
- Grid overview: Lens Resolution
- 2K
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (2) RJ45 female connectors
- Mechanical: Enclosure Material
- Polycarbonate
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Hardware: Max. Power Consumption
- 14W
- Hardware: Supported Voltage Range
- 37—57V DC
- Performance: Networking Interface
- 10/100 MbE RJ45 port
- Supported Gang and Junction Boxes
- 1-gang 2-gang 4" octagon 3.5" round 4" square 4" round European outlet
- Hardware: Ambient Operating Humidity
- 0 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 45º C (-22 to 113º F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
