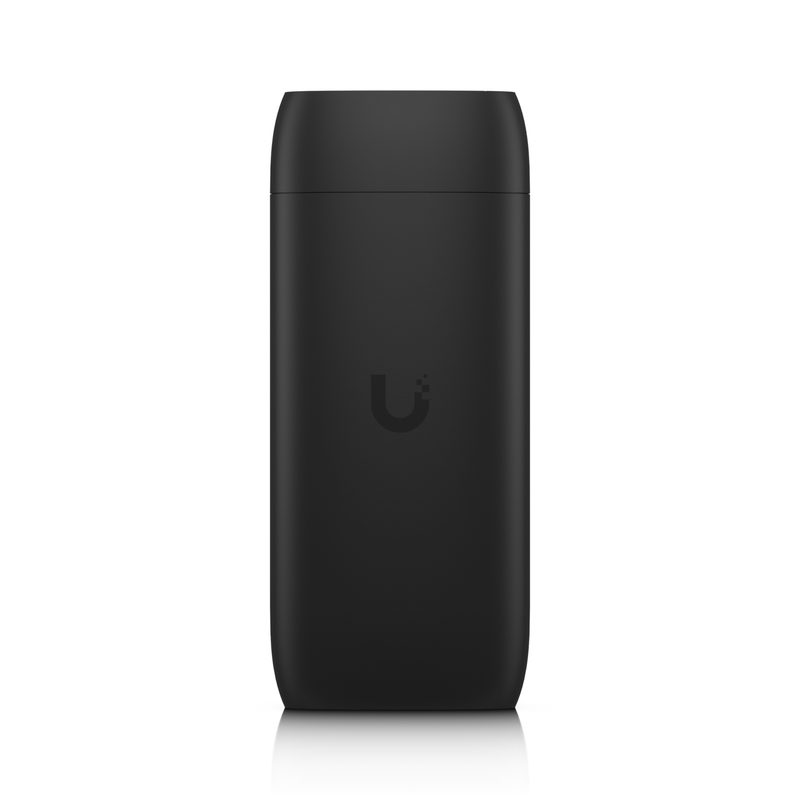

Z Ubiquiti UC-Cast-Pro
Ubiquiti · UC-Cast-Pro · EAN 0810084694169
sofort lieferbar
357,08 €inkl. MwSt., zzgl. Versand
Beschreibung
Managed digital signage player for HDMI displays with media content playback, web mode, and USB-C peripheral support.
Technische Daten
- Type
- HDMI 2.1b
- Höhe
- 6,8 cm
- Tiefe
- 9,4 cm
- Breite
- 16,0 cm
- Length
- 1, 2, 5 m (3.3, 6.6, 16.4 ft)
- Weight
- 18, 45, 85 g (0.6, 1.6, 3 oz)
- Gewicht
- 0,361 kg
- Standards
- HDMI 2.1b
- Dimensions
- Without mount: 123 x 52 x 31 mm (4.8 x 2.1 x 1.2") With mount: 125.1 x 56.3 x 40.8 mm (4.9 x 2.2 x 1.6")
- Bend Radius
- 1 m: Min. 11.2 mm (0.44") 2 m: Min. 32 mm (1.26 ") 5 m: Min. 26.4 mm (1")
- Flame Rating
- VW-1 (UL1581)
- Jacket Color
- Black
- Conductor Type
- 1/2 m: Bare copper 5 m: Fiber optics
- Display Output
- (1) HDMI port
- Unidirectional
- 1 m: — 2 m: — 5 m: Yes
- Jacket Diameter
- 1 m: 2.8 mm (0.11") 2 m: 4 mm (0.16") 5 m: 3.3 mm (0.13")
- Jacket Material
- 1/2 m: Thermoplastic elastomer (TPE) 5 m: Thermoplastic elastomer (TPE), braided
- Hardware: Memory
- Storage: 32 GB RAM: 8 GB
- Hardware: System
- White/blue (<a href="https://help.ui.com/hc/en-us/articles/204910134-Understanding-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> )
- Hardware: Buttons
- (1) Factory reset
- Mechanical: Weight
- Without mount: 240 g (8.5 oz) With mount: 260 g (9.2 oz)
- Conductor Wire Gage
- 1 m: 38 AWG 2 m: 34 AWG 5 m: —
- Hardware: Processor
- Octa-core CPU including (2) ARM® Cortex®-A78 and (6) ARM® Cortex®-A55 Integrated Mali-G57 GPU
- Video Content Support
- 480p / 720p / 1080p / 4k
- Hardware: Connectivity
- WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz
- Hardware: Power Method
- (1) GbE RJ45 PoE 48V DC, 0.35A (1) USB Type-C 5V DC, 3A UL 60950-1/62368-1 LPS/PS2 PSU
- Hardware: Certifications
- CE, FCC, IC, Wi-Fi CERTIFIED UL 62368-1, CSA C22.2 No. 62368-1, Anatel: 06981-25-08356
- Hardware: WiFi Standards
- 802.11 a/b/g/n/ac/ax
- Ambient Storage Temperature
- 1/2 m: -20 to 80°C (–4 to 176°F) 5 m: -20 to 70°C (–4 to 158°F)
- Software: UniFi Connect Web
- Version 3.14.6 and later
- Ambient Operating Temperature
- 1/2 m: -20 to 80°C (–4 to 176°F) 5 m: -20 to 70°C (–4 to 158°F)
- Mechanical: Pole Mount Diameter
- 1—2" (25—50 mm)
- Hardware: Ambient Operating Humidity
- 20 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Software: UniFi Connect iOS™ and Android™
- Version 2.18.1 and later
