Z Ubiquiti EAH-8

Beschreibung

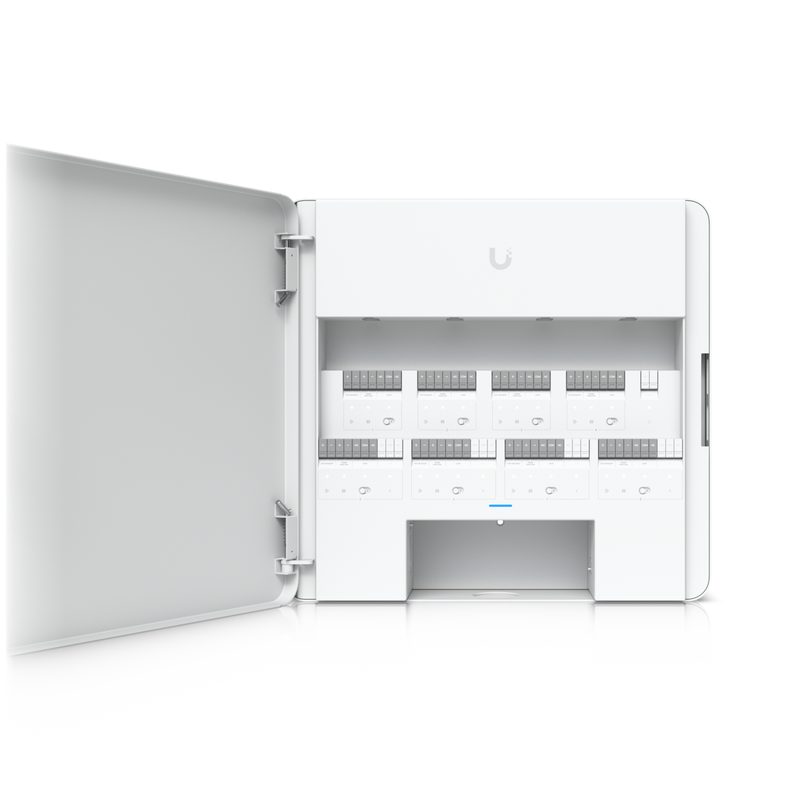

Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.

Technische Daten

DPS

Embedded

Höhe

51,0 cm

Tiefe

58,8 cm

Breite

21,7 cm

Weight

UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg

Wiring

(1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/+ (white) (1) DPS/- (yellow)

Gewicht

12,290 kg

Mounting

UA-Lock-Magnetic-270kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket U bracket: for glass door thickness ≤ 17 mm (≤ 0.7") and

Lock Type

Fail safe

1 GbE RJ45

9 (4 PoE+; 4 PoE++) (1G/100M/10M)

Dimensions

379 x 355 x 105 mm (15 x 14 x 4.1")

Redundancy

Battery Power Backup

Form Factor

Rack mount (1U)

Power Method

Universal input, 100–240V AC, Max. 4.4A, 50/60 Hz 32–48V DC Lead Acid Battery, Max. 7.5A @32V

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Current Power

500mA ±10%

Holding Force

UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)

LED Indicator

Green: unlocked Red: locked

Certifications

FCC, IC, CE

Hardware: LEDs

W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>

Hardware: PoE+

4

Hardware: Size

120 mm (4.7") diagonal

Hardware: PoE++

4

Input Terminals

(8) Door exit request (8) Door position (1) Emergency

Max. PoE Output

Up to PoE++

Supported Doors

8

Weatherproofing

IP55

Hardware: Button

(1) Factory reset

Hardware: Weight

Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb)

Hardware: Buttons

(1) Factory reset

Hardware: Sensors

Proximity sensor

Support Door Type

UA-Lock-Magnetic-270kg: Single door (Wooden/metal/glass) UA-Lock-Magnetic-540kg: Single door (Wooden/metal)

Enclosure Material

Device/brackets: aluminum Armature: steel

Grid overview: NFC

NFC

Grid overview: PoE

8 PoE Ports

Maximum User Count

10,000

Mechanical: Weight

Device: 9.1 kg (20 lb) Mount: 624 g (1.4 lb)

Hardware: Luminance

480 nits (Typical)

Grid overview: Sound

Two-Way Audio

Hardware: Management

Ethernet AR

Hardware: Resolution

2MP 1200 x 1600 (3:4)

Mechanical: Mounting

Wall

Hardware: LCM Display

1.3" touchscreen

Support Voltage Range

12V DC ±10%

Hardware: Connectivity

BLE 4.2 NFC

Hardware: Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Hardware: Power Supply

AC/DC, internal

Mechanical: Dimensions

84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")

Total PoE Availability

120W

Hardware: Digital Input

(8) Inputs for request-to-exit devices (8) Inputs for door position sensors (1) Emergency

Hardware: Field of View

H: 98.6°, V: 125.7°, D: 157.8°

Hardware: NFC Frequency

13.56 MHz

Hardware: PoE Interface

(8) PoE+ outputs, 50V DC, 30W per port (Max 190W aggregated)

Software: UniFi Network

Version 6.2.26 and later

UniFi Application Suite

Protect Access

Hardware: Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Hardware: ESD Protection

Air/contact: ± 24kV

Hardware: NFC Read Range

< 30 mm (1.18'')

Hardware: NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T

Hardware: Max. Frame Rate

30 FPS

Mechanical: NFC Frequency

13.56 MHz

Ambient Operating Humidity

5 to 90% noncondensing

Hardware: Dry Output Relay

(8) Lock terminals (12V or Dry) (4) AUX terminals for advanced setup (Chime/Siren/Door opener)

Hardware: Heat Dissipation

170.6 BTU/hr (Excluding PoE Output)

Hardware: Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Hardware: UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power

Mechanical: Mount Material

SGCC steel

Mechanical: NFC Technology

ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol

Ambient Storage Temperature

-20 to 70° C (-4 to 158° F)

Grid overview: Weatherproof

Outdoor Exposed

Hardware: Screen Technology

Capacitive touch

Mechanical: Weatherproofing

IP54

Grid overview: AUX Terminals

4 AUX Terminals

Hardware: ESD/EMP Protection

Air: ± 15kV, contact: ± 8kV

Hardware: Enclosure Material

SGCC steel

Hardware: Power Input Method

AC input DC input (Backup)

Hardware: Screen Orientation

Portrait

Performance: Forwarding Rate

13 Mpps

Performance: Supported VLANs

1,000

Ambient Operating Temperature

-10 to 60° C (14 to 140° F)

Grid overview: Lock Terminals

8 Lock Terminals

Grid overview: Physical Unlock

Pin Unlock

Hardware: Networking Interface

(10) 10/100/1000 Base-T

Hardware: Powered Output Relay

Lock: 12V DC, 1A/ Dry Aux: Dry only

Hardware: Supported Rack Depth

482.6 mm (19") four-post racks Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)

Mechanical: Enclosure Material

SGCC steel housing with polycarbonate cover

Software: Software Information

The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Performance: Packet Buffer Size

0.5 MB

Performance: Switching Capacity

18 Gbps

Grid overview: Additional Inputs

16 Additional Inputs

Hardware: Indoor and Outdoor Use

Indoor only

Hardware: Max. Power Consumption

240W

Software: Management Application

Access

Hardware: Supported Voltage Range

48V DC

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: I

Hardware: PoE Cabling Requirements

Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge p

Hardware: UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

Hardware: Max. PoE Wattage per Port

30W

Performance: MAC Address Table Size

8,000

Hardware: Ambient Operating Humidity

5 to 95% noncondensing

Hardware: Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Hardware: UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

Performance: Total Non-Blocking Throughput

9 Gbps

Hardware: Document number, and issue date and/or revision le

EAH-8, Ver 01
