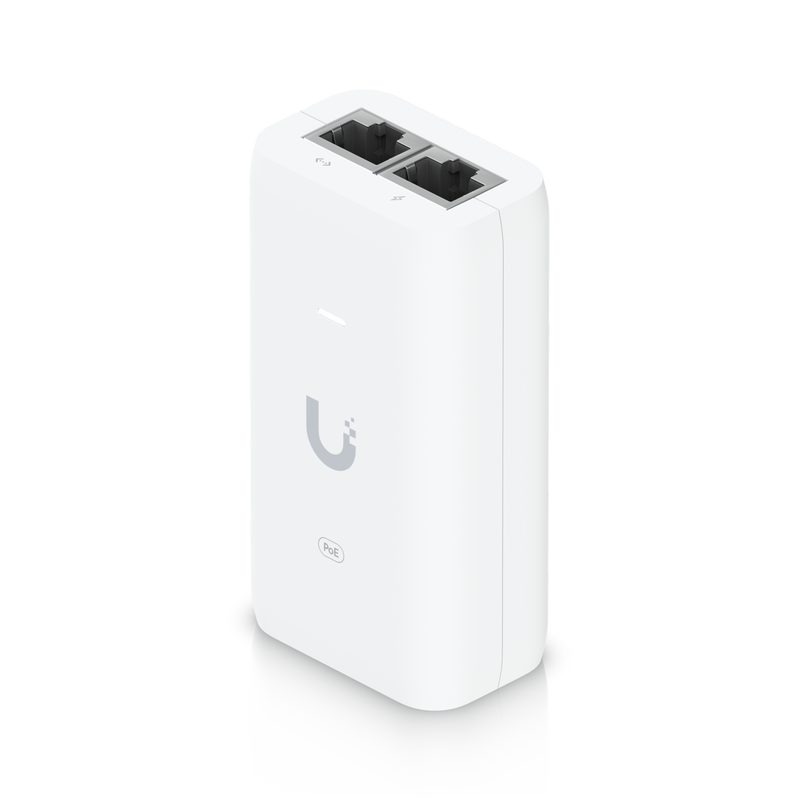

Z Ubiquiti 802.3af Supported PoE Injector

Beschreibung

An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Technische Daten

Höhe

4,3 cm

Tiefe

18,2 cm

Breite

7,5 cm

Weight

372 g (13.1 oz)

Gewicht

0,261 kg

Dimensions

164.5 x 81 x 42 mm (6.5 x 3.2 x 1.7")

Efficiency

>88%

Power Cable

Included

AC Connector

IEC-320 C6

Power Method

Universal AC input, 100–240V AC, 50/60 Hz

Power Supply

AC/DC

Data In / PoE

RJ45 shielded socket

Input Current

1.5A Max.

Output Ripple

1% Max.

Rated Voltage

100–240V AC at 50/60Hz

Response Time

<1 ns

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

Inrush Current

<120A peak @ 230V AC

Output Voltage

54V DC @ 1.67A

2-pair Powering

Pins 4, 5 (+) and 7, 8 (-)

4-pair Powering

Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Line Regulation

≤ 2%

Load Regulation

≤ 5%

Surge Protection

Difference and common mode

Shunt Capacitance

<5 pF data

Peak Pulse Current

36A (10/1000 μs) data

Clamping Protection

11V data, 60V power

Switching Frequency

65 kHz

Max. Surge Discharge

1500A (8/20 μs) power

Supported Voltage Range

100–240V AC

Ambient Operating Humidity

10 to 95% noncondensing

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Max. PoE+ Wattage per Port by PSE

90W
