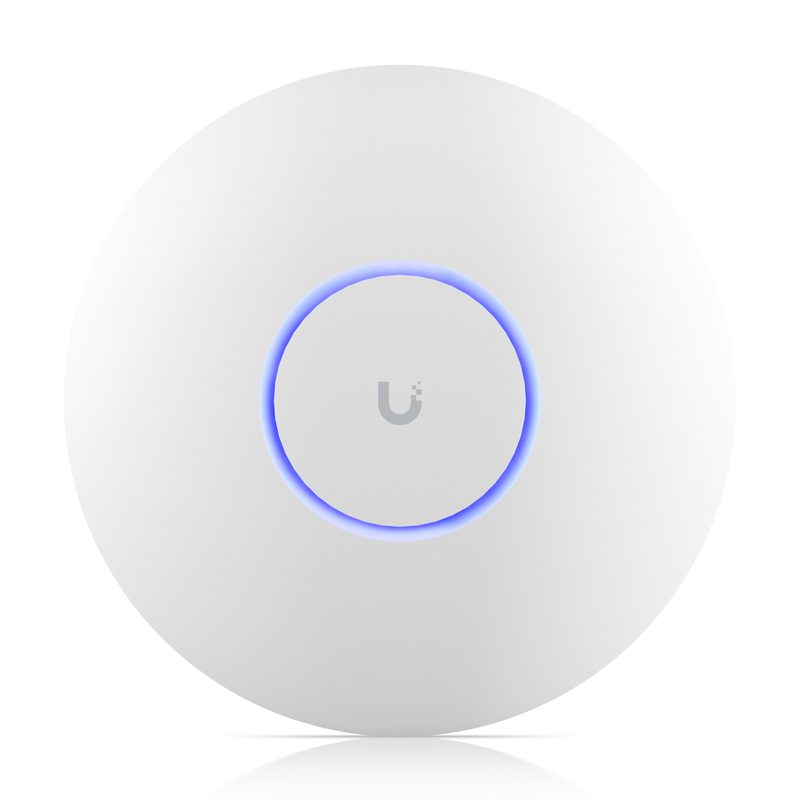

WLAP Ubiquiti Unifi U7-PRO Wifi-7 - Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
Ubiquiti · U7-Pro · EAN 0810084693650
sofort lieferbar
217,62 €inkl. MwSt., zzgl. Versand
Beschreibung
Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
Technische Daten
- Uplink
- 2.5 GbE
- Weight
- 160 g (5.6 oz)
- Mounting
- Ceiling, Wall (Pro Mount Included)
- Dimensions
- ⌀206 x 46 mm (⌀8.1 x 1.8")
- Efficiency
- 87%
- Power Cable
- Included
- AC Connector
- IEC-320 C6
- Power Method
- PoE+
- Coverage Area
- 140 m² (1,500 ft²)
- Data In / PoE
- RJ45 Shielded Socket
- Input Current
- 0.75A Max.
- Output Ripple
- 1% Max.
- Rated Voltage
- 100–240V AC at 50/60Hz
- Response Time
- <1 ns
- WiFi Standard
- WiFi 7
- Certifications
- CE, FCC, IC, UL, CCC
- Inrush Current
- <100A peak at 26°C
- Output Voltage
- 48V DC @ 0.65A
- 2-pair Powering
- Pins 4, 5 (+) and 7, 8 (-)
- Line Regulation
- ≤ 3%
- Load Regulation
- ≤ 5%
- Spatial Streams
- 6
- Hardware: System
- White/Blue
- Hardware: Weight
- 680 g (1.5 lb)
- Surge Protection
- Difference and common mode
- Max. Client Count
- 300+
- Shunt Capacitance
- <5 pF data
- Enclosure Material
- Polycarbonate
- Peak Pulse Current
- 36A (10/1000 μs) data
- Performance: 5 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 6 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Clamping Protection
- 11V Data, 60V power
- Switching Frequency
- 70 kHz Max.
- Grid overview: WiFi7
- WiFi 7
- Hardware: Management
- Ethernet
- Max. Surge Discharge
- 1500A (8/20 μs) power
- Performance: 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Grid overview: Uplink
- 2.5 GbE
- Software: UniFi Network
- Version 8.0.28 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 06370-24-08356
- Hardware: Mount Material
- Stainless steel (SUS304), galvanized steel (SGCC)
- Performance: Max. BSSIDs
- 8 per Radio
- Ambient Operating Humidity
- 10 to 95% noncondensing
- Ambient Storage Temperature
- -30 to 70°C (-22 to 158° F)
- Hardware: Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- Grid overview: Radio/Antenna
- 6 GHz Radio
- Hardware: Enclosure Material
- Polycarbonate, metal
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Compatible Coloring Materials
- Spray can (Krylon/Telox) Acrylic color Poster color (Pentel) Coloring pen (Gel pen/Sharpie)
- Hardware: Operating Frequency
- US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 58
- Hardware: Networking Interface
- (1) 1/2.5 GbE RJ45 port
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Performance: 802.11be (WiFi 7)
- 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
- Grid overview: Max. Client Count
- 300
- Hardware: Max. Power Consumption
- 21W
- Hardware: Supported Voltage Range
- 44–57V DC
- Performance: 802.11ax (WiFi 6/6E)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 40° C (-22 to 104° F)
