Ubiquiti UICARE-USW-Pro-XG-10-PoE-EU
Ubiquiti · UICARE-USW-Pro-XG-10-PoE-EU-D
Lieferzeit auf Anfrage
150,87 €inkl. MwSt., zzgl. Versand
Beschreibung

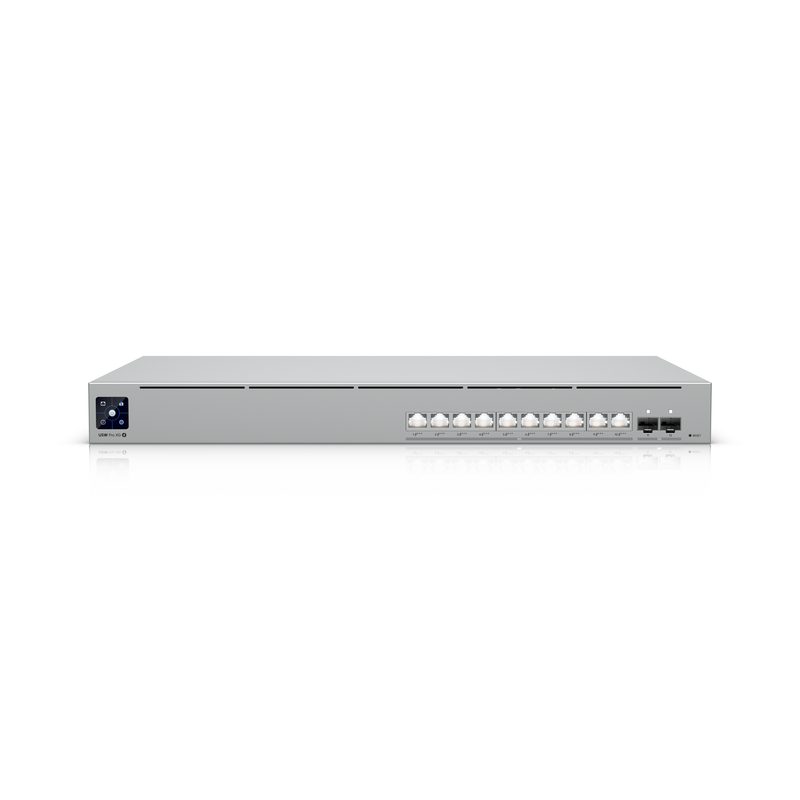

1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
Technische Daten
- Wire
- Copper
- Weight
- 2.5 kg (5.5 lb)
- WARNING
- CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
- 10G SFP+
- 2 (10G/1G)
- Connector
- (2) Translucent booted RJ45
- Standards
- TIA/EIA-568-B.2 ISO/IEC 11801
- Dimensions
- 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7")
- Redundancy
- DC Power Backup
- 10 GbE RJ45
- 10 (All PoE+++) (10G/5G/2.5G/1G/100M)
- Bend Radius
- 0.5 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")
- Form Factor
- Rack mount (1U)
- Wave Length
- 850 nm
- Flame Rating
- VW-1 (UL1581)
- Jacket Color
- Black
- Pack Options
- Single Unit
- Hardware: PoE
- 15.4W
- RX Wavelength
- 850 nm
- TX Wavelength
- 850 nm
- Conductor Type
- Stranded copper
- Connector Type
- SFP+ to SFP+
- Hardware: PoE+
- 30W
- Shielding Type
- UTP
- Hardware: PoE++
- 60W
- Jacket Diameter
- 0.15-8 m: 2.5 mm (0.1") 12-15 m: 2.9 mm (0.11")
- Jacket Material
- PVC
- Max. PoE Output
- Up to PoE+++
- Supported Media
- Multi-Mode Fiber
- Available Colors
- White
- Hardware: PoE+++
- 10
- Hardware: Weight
- Without mounting brackets: 4.6 kg (10.14 lb) With mounting brackets: 4.7 kg (10.36 lb)
- Performance: MAC
- 128
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Performance: IPv4
- 128
- Sliding Mechanism
- Ball-bearing
- Enclosure Material
- SGCC steel
- Supported PoE Type
- Up to PoE+++
- Conductor Wire Gage
- 1–8 m (3–26 ft): 34 AWG 12–15 m (39–49 ft): 32 AWG
- Supported Data Rate
- 1 / 10 Gbps
- Supported Rack Type
- 4-post
- Hardware: Management
- Ethernet AR
- Max. Weight Capacity
- 45 kg (99 lb)
- Supported Rack Depth
- 600—1066 mm (23.6—42")
- Hardware: LCM Display
- 1.3" touchscreen
- Jacket Outer Diameter
- 0.5/ 1m: 4.2 mm (0.17") 3 m: 6 mm (0.24")
- Operating Environment
- Indoor
- Hardware: Power Method
- (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
- Hardware: Power Supply
- AC/DC, internal, 550W
- Max. Power Consumption
- 0.8 W
- Total PoE Availability
- 400W
- Software: UniFi Network
- Version 9.1.120 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 05660-25-08356
- Hardware: ESD Protection
- Air: ± 30kV, contact: ± 30kV
- Hardware: Mount Material
- SGCC steel
- Installation Temperature
- -20 to 60°C (–4 to 140°F)
- Supported Cable Distance
- OM4 - 400 m (1312 ft) OM3 - 300 m (984 ft)
- Ambient Storage Temperature
- -20 to 75°C (–4 to 167°F)
- Hardware: Enclosure Material
- SGCC steel
- Hardware: Power Input Method
- AC input
- Performance: Forwarding Rate
- 179 Mpps
- Performance: Supported VLANs
- 1,000
- Supported Mounting Hole Type
- Square
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Hardware: Supported Rack Depth
- 400~1200 mm (15.7-47.2"")
- Performance: IPv4 Static Routes
- 256
- Performance: Packet Buffer Size
- 2 MB
- Performance: Switching Capacity
- 240 Gbps
- Hardware: Max. Power Consumption
- 65W (Excluding PoE output) 520W (Including PoE output)
- Hardware: Supported Voltage Range
- 100–240V AC
- Performance: MAC Address Table Size
- 32,000
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -5 to 40° C (23 to 104° F)
- Performance: Total Non-Blocking Throughput
- 120 Gbps
