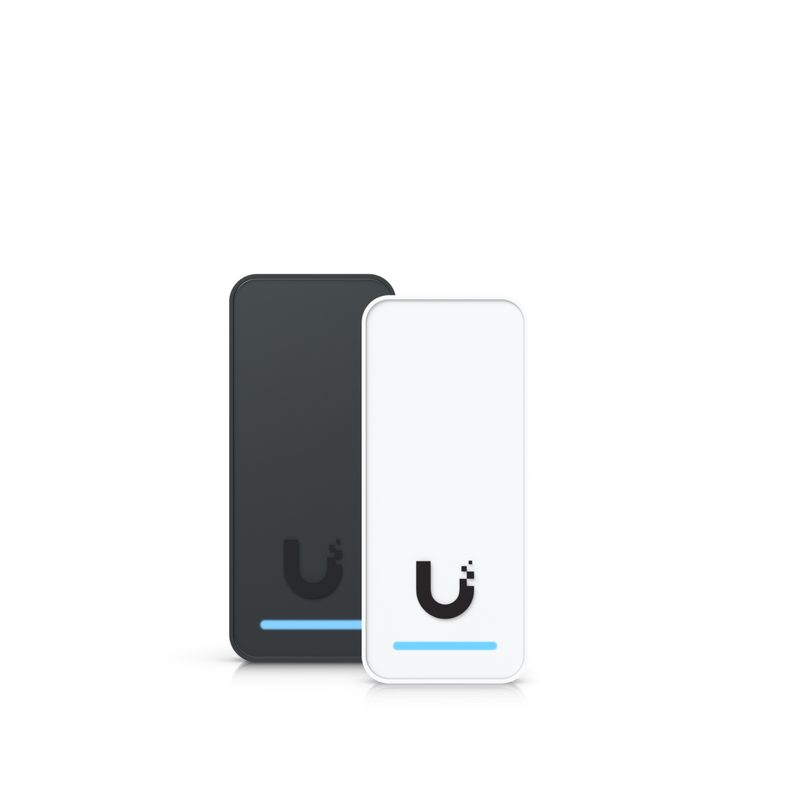

Ubiquiti Access G2 Reader black

Beschreibung

Compact third-generation access reader with Touch Pass support.

Technische Daten

Length

152.4 m (500 ft)

Weight

UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)

Material

Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC)

Mounting

Wall, VESA mount

Dimensions

117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5")

Insulation

UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG)

Bend Radius

UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")

Flame Rating

VW-1

Jacket Color

White

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Conductor DCR

UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)

Current Rating

18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length

Hardware: LEDs

R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>

Input Terminals

(2) Door exit request (1) Door position (1) Emergency

Pulling Tension

UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf

Supported Doors

1

Weatherproofing

IP55

Hardware: Button

(1) Factory reset

Hardware: Buttons

(1) Factory reset

Hardware: Sensors

Proximity sensor

Mounting Material

Polycarbonate, sponge, rubber

Grid overview: NFC

NFC

Grid overview: PoE

4 PoE Ports

Hardware: Security

OSDP v2

Maximum User Count

6,000

Mechanical: Format

ISO 7810 ID-1

Mechanical: Weight

82 g (2.9 oz)

Conductor Wire Gauge

UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG

Grid overview: Apple

Touch Pass

Mechanical: Mounting

Wall, gang-box mount (Included) Junction box (Optional)

Number of Conductors

UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2

Jacket Outer Diameter

UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")

Hardware: Connectivity

RS-485 BLE 4.1 NFC

Hardware: Power Method

DC 12V

Hardware: Power Supply

DC 12/24V

Mechanical: Dimensions

85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")

Hardware: Digital Input

Request to exit, request to enter, remote release, door position sensor

Hardware: NFC Frequency

13.56 MHz

Hardware: PoE Interface

(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)

Supported Voltage Range

36V DC

UniFi Application Suite

Access

Hardware: Certifications

CE, FCC, IC

Hardware: NFC Read Range

< 30 mm (1.18'')

Hardware: NFC Technology

ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire

Mechanical: Pack Options

UA-Card-B-10/UA-Card-W-10: 10-Pack UA-Card: 20-Pack UA-Card-B-100/UA-Card-W-100: 100-pack

Mechanical: NFC Frequency

13.56 MHz

Hardware: Dry Output Relay

Lock: 30V DC, 1A Aux: 30V DC, 1A

Hardware: Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Hardware: UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power

Mechanical: Mount Material

Stainless steel

Mechanical: NFC Technology

MIFARE DESFire EV3 UniFi Access Proprietary Security Protocol

Ambient Storage Temperature

-45 to 65° C (-49 to 149° F)

Grid overview: Weatherproof

Outdoor Exposed

Grid overview: AUX Terminals

2 AUX Terminals

Hardware: ESD/EMP Protection

Air: ± 15kV, contact: ± 8kV

Ambient Operating Temperature

-45 to 65° C (-49 to 149° F)

Grid overview: Lock Terminals

2 Lock Terminals

Hardware: Reader Power Output

12V DC, up to 0.5A

Grid overview: Physical Unlock

Handwave Unlock

Hardware: Networking Interface

(1) 10/100 MbE RJ45 port

Hardware: Powered Output Relay

Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A

Mechanical: Enclosure Material

Polycarbonate, aluminum alloy

Software: Software Information

The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Grid overview: Additional Inputs

4 Additional Inputs

Hardware: Indoor and Outdoor Use

Yes

Hardware: Max. Power Consumption

2.5W

Software: Management Application

Access

Hardware: Supported Voltage Range

12V DC

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: I

Hardware: PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per

Hardware: UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

Hardware: Ambient Operating Humidity

5 to 90% noncondensing

Hardware: UA-Retrofit-Reader (250mA)

18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft)

Hardware: Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Hardware: UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

Hardware: Document number, and issue date and/or revision le

UA-G2/UA-G2-Black, V02
