Ubiquiti UICARE-UDR-5G-MAX
Ubiquiti · UICARE-UDR-5G-Max-EU-D
Lieferzeit auf Anfrage
173,01 €inkl. MwSt., zzgl. Versand
Beschreibung

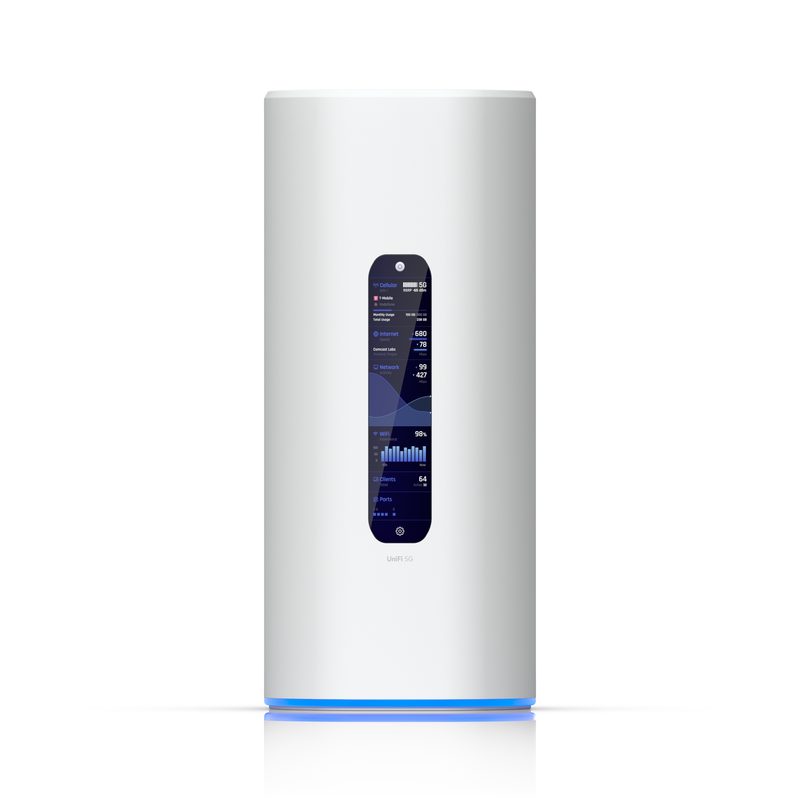

Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage.
Technische Daten
- Wire
- Copper
- 10G SFP+
- 1 (10G/1G)
- Capacity
- 128/256/512 GB/1 TB
- Connector
- RJ45
- Dimensions
- 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
- Bend Radius
- 0.5 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")
- Form Factor
- Desktop
- Speed Class
- Class 10, UHS-I (U1), V10
- Wave Length
- 850 nm
- 2.5 GbE RJ45
- 4 (1 PoE) (2.5G/1G/100M)
- Jacket Color
- Black
- Pack Options
- Single Unit
- Cellular: SIM
- (2) Nano SIM (1) Nano-SIM or eSIM
- Coverage Area
- 160 m² (1,750 ft²)
- Hardware: PoE
- 15.4W
- Connector Type
- SFP+ to SFP+
- Cellular: 5G SA
- Downlink 1.8 Gbps Uplink 650 Mbps
- Endurance (TBW)
- 128 GB: 64 256 GB: 128 512 GB: 500 1 TB: 1,000
- Jacket Material
- PVC
- Managed Cameras
- (5) HD (2) 2K (1) 4K
- Supported Media
- Copper
- Cellular: 4G LTE
- Downlink 1.6 Gbps Uplink 210 Mbps
- Cellular: 5G NSA
- Downlink 3.4 Gbps Uplink 560 Mbps
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- 1.4 kg (3.1 lb)
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Default WAN Ports
- (1) 10G SFP+ (1) 2.5 GbE RJ45
- Cellular: Category
- 5G NR Sub-6
- IDS/IPS Throughput
- 2.3 Gbps
- Hardware: Processor
- Quad-core ARM® Cortex®-A53 at 1.5 GHz
- Max. WAN Port Count
- 4
- Supported Data Rate
- 1 / 10 Gbps
- Hardware: Management
- Ethernet Bluetooth
- Hardware: PoE Budget
- 15.4W
- Management Interface
- SDA 6.0
- Software: Mobile App
- UniFi iOS™: Version 10.33.0 and later UniFi Android™: Version 10.36.1 and later
- Hardware: LCM Display
- 4.7" touchscreen
- Hardware: NVR Storage
- Pre-installed 64 GB microSD for NVR
- Jacket Outer Diameter
- 0.5/ 1m: 4.2 mm (0.17") 3 m: 6 mm (0.24")
- Managed UniFi Devices
- 30+
- VPN & SD-WAN: OpenVPN
- 8
- Cellular: Antenna Gain
- 617-960 MHz: 3 dBi 1710-2700 MHz: 7 dBi 3300-5000 MHz: 8 dBi 5150~5925 MHz: 8 dBi
- Grid overview: IDS/IPS
- 2.3 Gbps
- Hardware: Power Method
- DC jack (54V DC/1.1A)
- Hardware: Power Supply
- 54V DC/1.1A (Adapter included)
- Integrated WiFi: 5 GHz
- 4.3 Gbps
- Integrated WiFi: 6 GHz
- 5.7 Gbps
- Max. Power Consumption
- 1.9W
- Cellular: Max. TX Power
- HPUE power class 2: 26 dBm
- Hardware: System Memory
- 3 GB
- VPN & SD-WAN: WireGuard
- 8
- Hardware: Certifications
- CE, PTCRB, GCF, Wi-Fi Alliance®
- Hardware: Expansion Slot
- MicroSD Card
- Integrated WiFi: 2.4 GHz
- 688 Mbps
- Integrated WiFi: 802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Integrated WiFi: 802.11b
- 1, 2, 5.5, 11 Mbps
- Integrated WiFi: 802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Integrated WiFi: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
- Supported Cable Distance
- 10 Gbps (Cat 6A): 100 m (328 ft)
- VPN & SD-WAN: Site Magic
- 20
- Cellular: Frequency Bands
- n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
- Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Heat Dissipation
- 115 BTU/hr (Excluding PoE output)
- Sequential Read Performance
- 128 GB: 100 MB/s 256 GB: 100 MB/s 512 GB: 160 MB/s 1 TB: 160 MB/s
- Hardware: ESD/EMP Protection
- Air: ± 8kV, contact: ± 4kV
- Hardware: Enclosure Material
- Polycarbonate
- Integrated WiFi: Max. BSSIDs
- 4 per Radio
- Security: IDS/IPS Signatures
- 20,000+ with CyberSecure
- Simultaneous Users Connected
- 300+
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Integrated WiFi: WiFi Standard
- 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- Grid overview: Max. Client Count
- 300
- Hardware: Max. Power Consumption
- 34.5W (Excluding PoE output)
- Hardware: Voltage Range PoE Mode
- 44–57V
- Hardware: Supported Voltage Range
- 100–240V AC
- Integrated WiFi: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Integrated WiFi: 802.11be (WiFi 7)
- 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
- Integrated WiFi: Wireless Security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- Networking: MAC Address Table Size
- 2,000
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Integrated WiFi: 802.11ax (WiFi 6/6E)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Hardware: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
