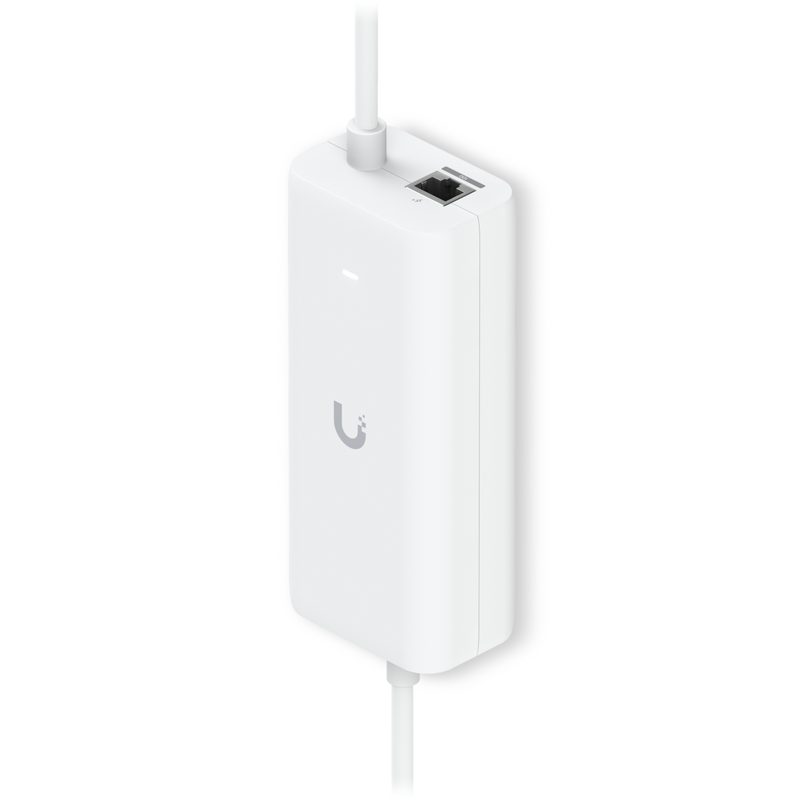

Ubiquiti PoE Integrated AC Adapter

Beschreibung

AC adapter with integrated PoE+ that powers a UniFi Cloud Gateway via USB-C while delivering up to 30W PoE+ to a connected device—ideal for adding PoE output or supporting a UniFi 5G backup, with flexible wall, DIN rail, or floating mount options.

Technische Daten

Length

Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)

Weight

358 g (12.6 oz)

Dimensions

146 x 62 x 42 mm (5.7 x 2.4 x 1.7")

Efficiency

82%

Data In / PoE

RJ45 shielded socket

Input Current

1.5A max.

Output Ripple

1% max.

Rated Voltage

100–240V AC at 50/60Hz

Response Time

<1 ns

Certifications

CE, FCC, IC, UL, UKCA, CCC, RoHS

Inrush Current

120A

Output Voltage

Type-C: 5V@ 5A PoE+: 48V@ 0.65A

4-pair Powering

Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Line Regulation

≤ 5%

Load Regulation

≤ 5%

Surge Protection

Difference and common mode

Shunt Capacitance

<5 pF data

Peak Pulse Current

36A (10/1000 μs) data

Clamping Protection

11V data, 60V power

Switching Frequency

65 kHz

Max. Surge Discharge

1500A (8/20 μs) power

Ambient Operating Humidity

10 to 95% noncondensing

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)
