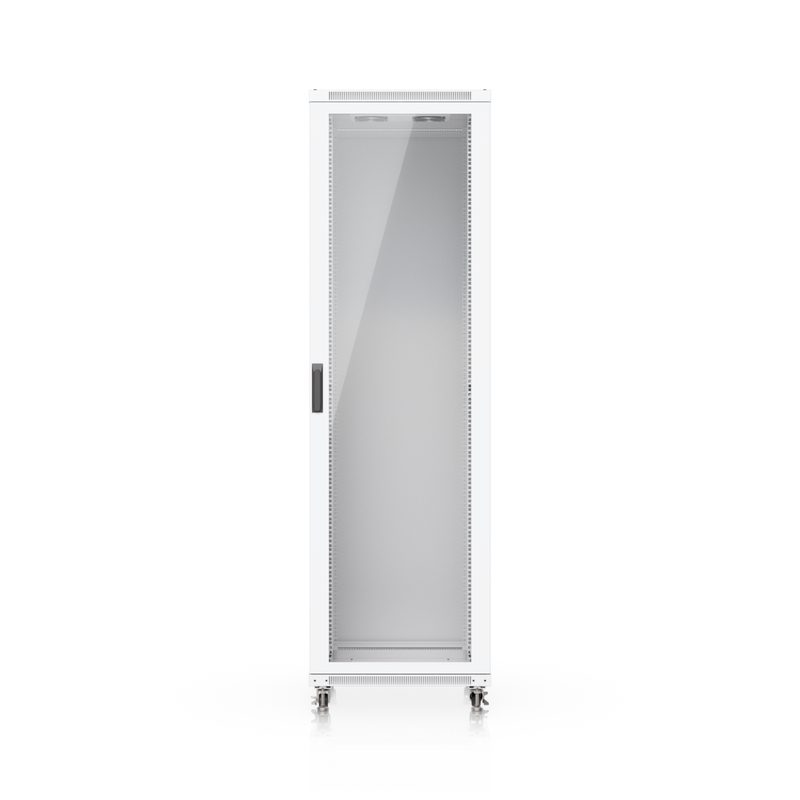

Ubiquiti Netzwerkschrank UACC-Rack-42U-1000-G (Speditionsversand)
Ubiquiti · UACC-Rack-42U-1000-G
Lieferzeit auf Anfrage
1293,83 €inkl. MwSt., zzgl. Versand
Beschreibung
Fully assembled floor rack with built-in fans, removable panels, and lockable casters, engineered for optimal airflow, heavy-duty stability, and easy equipment access.
Technische Daten
- Color
- White
- Screws
- #10-32
- Weight
- Packaging: 120.6 kg (265.9 lb) Rack: 92.4 kg (203.7 lb)
- Material
- Thermoplastic (PA66)
- Mounting
- Floor stand
- Security
- (1) Front door lock (1) Rear door lock (8) Side panel locks (3) Keys
- Standard
- CE; EIA/ECA-310-E; RoHS
- Strength
- SnapMount rack inserts have been tested and qualified with the following shear forces: 1U: Supports devices with a depth of up to 400 mm and a maximum weight of 10 kg. 2U: Supports devices with a de
- U Height
- 42U
- Rack Type
- 4 post, enclosed cabinet
- Rear Door
- Solid Default left-hand outswing, reversible
- Treatment
- Powder coating
- Dimensions
- Packaging: 740 x 1,165 x 2,223 mm (29.1 x 45.9 x 87.5") Rack with caster: 600 x 1,000 x 2,050 mm (23.6 x 39.4 x 80.7") Rack without caster: 600 x 1,000 x 1,966 mm (23.6 x 39.4 x 77.4")
- Fan Module
- (4) Pre-installed 120 x 120 x 38 mm AC fan units
- Front Door
- Tempered glass Default left-hand outswing, reversible
- Side Panels
- (4) Solid, removable and lockable
- Pack Options
- 20-Pack (for 10U installation)
- Sliding Mechanism
- Ball-bearing
- Enclosure Material
- SPCC steel Door/side panels: 1.2 mm (0.05") Main body: 1 mm (0.04") Posts: 2 mm (0.08")
- Mounting Hole Type
- Square
- Cable Entry Opening
- (2) Top: 335 x 52.5 mm (13.2 x 2.1") (2) Bottom: 335 x 52.5 mm (13.2 x 2.1")
- Rack Rail Thickness
- Up to 2.2 mm (0.08")
- Supported Rack Type
- 4-post
- Max. Weight Capacity
- Static 800 kg (1764 lb) Rolling 320 kg (705 lb)
- Supported Rack Depth
- 600—1066 mm (23.6—42")
- Thermal Sensor Switch
- Sensor OFF (Switch Pop-Up) The fan module operates continuously when the power cable is connected. Sensor ON (Switch Drop-Down) The fan module activates automatically when the internal cabinet temper
- Adjustable Mounting Depth
- Default 652.3 mm (25.7") Max. 877.3 mm (34.5") Adjustable pitch 15 mm (0.6")
- Supported Mounting Hole Type
- Square
