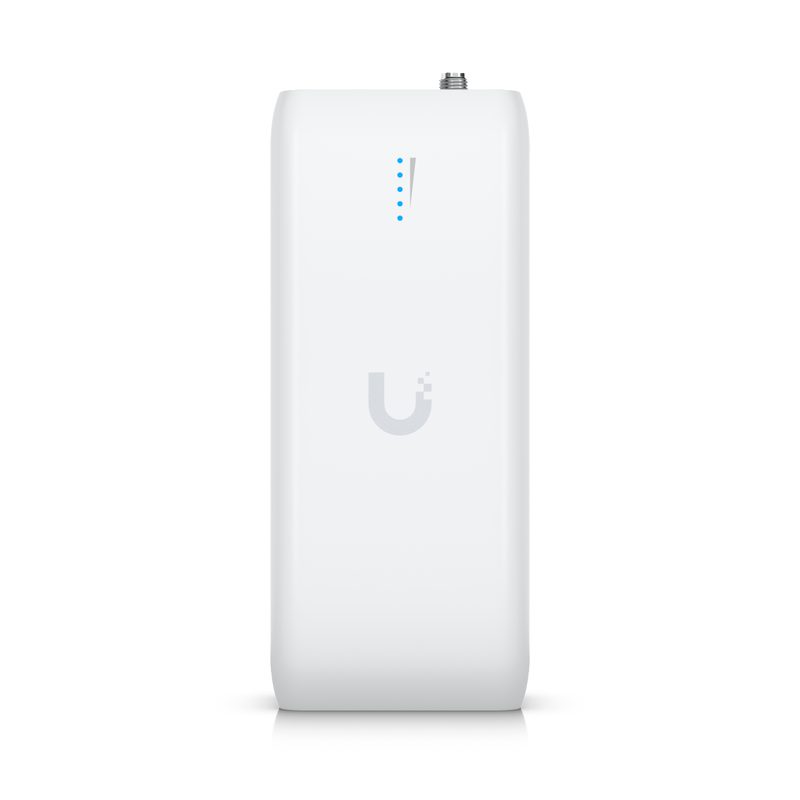

Ubiquiti UniFi Device Bridge Switch
Ubiquiti · UDB-Switch
sofort lieferbar
368,61 €inkl. MwSt., zzgl. Versand
Beschreibung
Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
Technische Daten
- Mounting
- Wall (Included)
- Dimensions
- 130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
- Power Method
- 100–240V AC, 0.45A Max., 50/60 Hz
- WiFi Standard
- WiFi 5
- Spatial Streams
- 2
- Hardware: Button
- (1) Factory reset
- Hardware: System
- (4) Blue: signal (1) White/blue: indicator
- Hardware: Weight
- 200 g (7.1 oz)
- Hardware: Antennas
- (1) Internal antenna (1) RP-SMA connector for external omni-antenna
- Mounting Locations
- Wall, table
- Performance: 5 GHz
- 2 x 2
- Hardware: Management
- WiFi
- Performance: 802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Hardware: Certifications
- CE, FCC, IC, Anatel: 03885-25-08356
- Hardware: Mount Material
- Polycarbonate
- Hardware: Channel Bandwidth
- 20/40/80 (MHz)
- Hardware: Enclosure Material
- Polycarbonate
- Hardware: Operating Frequency
- US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz
- Hardware: Networking Interface
- (1) GbE RJ45 port
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
- Performance: Wireless Security
- WPA2 AES
- Hardware: Max. Power Consumption
- 25W (AC input) 10W (Excluding PoE output)
- Hardware: Supported Voltage Range
- 100–240V AC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -10 to 40° C (14 to 104° F)
