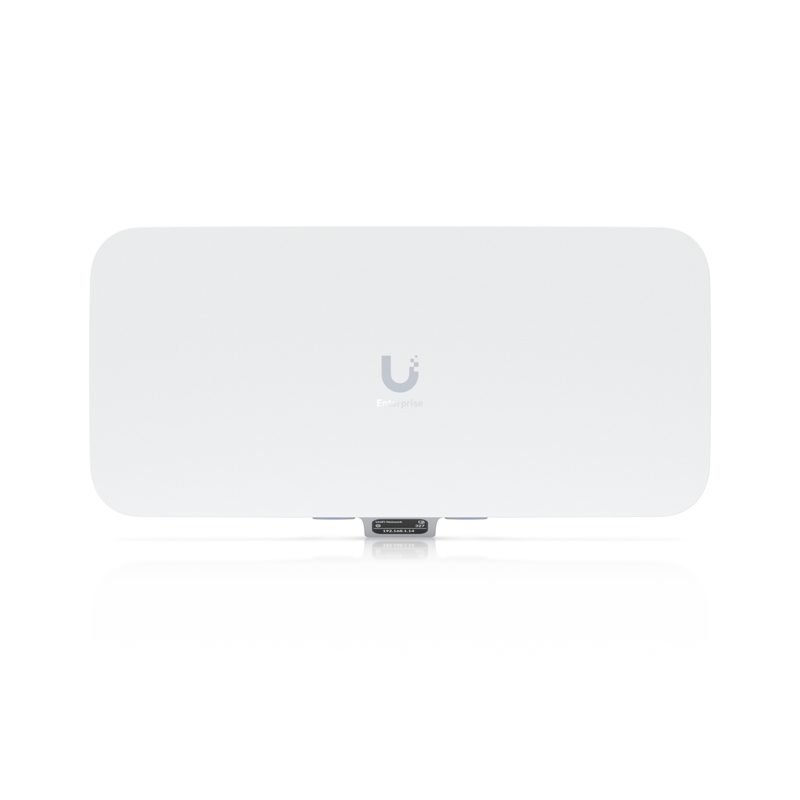

Ubiquiti UICARE-E7-Audience
Ubiquiti · UICARE-E7-Audience-D
Lieferzeit auf Anfrage
441,05 €inkl. MwSt., zzgl. Versand
Beschreibung
Enterprise-grade indoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
Technische Daten
- Uplink
- 10 GbE 1 GbE
- Mounting
- Wall, Pole (Mounts Included), VESA (Optional)
- Dimensions
- Device: 474.1 x 239.4 x 42.2 mm (18.7 x 9.4 x 1.7") Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9")
- Power Method
- PoE++
- Coverage Area
- 465 m² (5,000 ft²)
- WiFi Standard
- WiFi 7
- Spatial Streams
- 12
- Hardware: System
- R/G/B
- Hardware: Weight
- Device: 3.2 kg (7.1 lb) With mount: 4.2 kg (9.3 lb)
- Max. Client Count
- 1500+
- Hardware: Antennas
- (1) Internal with directional patterns
- Performance: 5 GHz
- 4 x 4 (DL/UL MU-MIMO)
- Performance: 6 GHz
- Low Band: 4 x 4 (DL/UL MU-MIMO) Full Band: 4 x 4 (DL/UL MU-MIMO)
- Grid overview: WiFi7
- WiFi 7
- Hardware: Management
- Ethernet
- Performance: 802.11n
- 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
- Software: Mobile App
- iOS™ version 10.24.1 and later Android™ version 10.25.2 and later
- Grid overview: Uplink
- 10 GbE
- Hardware: Wind Loading
- 164.75 N at 200 km/h (37 lbf at 125 mph)
- Software: UniFi Network
- Version 9.2.87 and later
- Hardware: Certifications
- CE, Anatel: 06412-25-08356
- Hardware: Mount Material
- Aluminum alloy
- Performance: Max. BSSIDs
- 8 per Radio
- Hardware: Channel Bandwidth
- VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- Grid overview: Radio/Antenna
- 6 GHz Radio
- Hardware: Enclosure Material
- UV-stabilized polycarbonate, aluminum alloy
- Hardware: Operating Frequency
- US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz Worldwide: 5150 - 5850 MHz 5925 - 71
- Hardware: Pole Mount Diameter
- 1–3" (25–76 mm)
- Hardware: Networking Interface
- (1) 10 GbE RJ45 port (1) GbE RJ45 port
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- Performance: 802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
- Performance: 802.11be (WiFi 7)
- 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
- Grid overview: Max. Client Count
- 1,500
- Hardware: Max. Power Consumption
- 51W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -40 to 60° C (-40 to 140° F)
