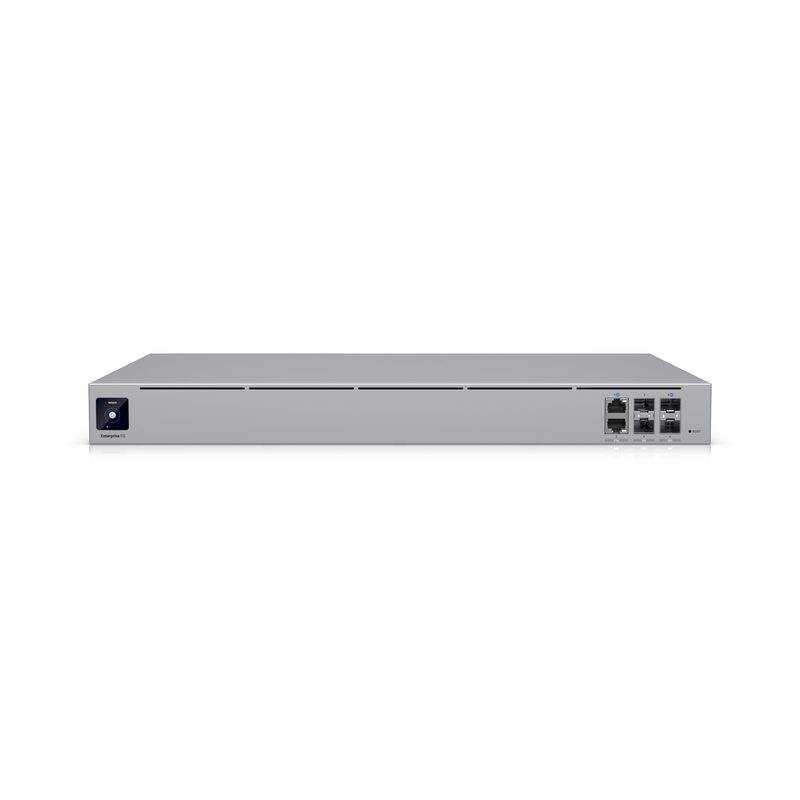

Ubiquiti UICARE-EFG-EU
Ubiquiti · UICARE-EFG-EU-D
Lieferzeit auf Anfrage
442,37 €inkl. MwSt., zzgl. Versand
Beschreibung
25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.
Technische Daten
- SIM
- (1) Nano SIM (4FF) (1) eSIM
- Wire
- Copper
- 10G SFP+
- 2 (10G/1G)
- Mounting
- Desktop stand, wall, window mount (Included)
- 25G SFP28
- 2 (25G/10G/1G)
- Connector
- RJ45
- Dimensions
- 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
- Redundancy
- Shadow Mode (VRRP) Gateway Failover (2) Hot-Swappable PSUs
- Bend Radius
- 0.5 / 1 m: Min. 24 mm (0.94") 3 m: Min. 31 mm (1.22")
- Form Factor
- Rack mount (1U)
- Wave Length
- 850 nm
- 2.5 GbE RJ45
- 2 (2.5G/1G/100M/10M)
- Jacket Color
- Black
- Pack Options
- Single Unit
- PoE Interface
- (1) PoE input
- Connector Type
- SFP28 to SFP28
- Hardware: Type
- (2) Embedded omni-directional cellular antennas
- Hardware: 5G SA
- Downlink 220 Mbps / Uplink 120 Mbps
- Jacket Material
- PVC
- Supported Media
- Copper
- Hardware: 4G LTE
- Downlink 195 Mbps / Uplink 100 Mbps
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- 6.5 kg (14.3 lb)
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Default WAN Ports
- (1) 25G SFP28 (1) 2.5 GbE RJ45
- Hardware: Buttons
- (1) Factory reset
- Hardware: Display
- 1.14" status display
- Hardware: Category
- 5G RedCap
- IDS/IPS Throughput
- 12.5 Gbps
- Mechanical: Weight
- Device: 122 g (4.3 oz) Stand: 138 g (4.9 oz) Wall mount: 66 g ( 2.3 oz)
- VPN & SD-WAN: L2TP
- 280 Mbps
- Concurrent Sessions
- 10 Million
- Hardware: Processor
- 18-core ARM® v8.2 at 2 GHz
- Max. WAN Port Count
- 5
- Supported Data Rate
- 25 / 10 / 1 Gbps
- VPN & SD-WAN: IPsec
- 580 Mbps
- Hardware: Management
- Ethernet Bluetooth
- Networking Interface
- (1) GbE RJ45 port 5G RedCap and LTE
- Software: Mobile App
- UniFi iOS™:Version 10.16.2 and later UniFi Android™: Version 10.17.2 and later
- Hardware: LCM Display
- 1.3" touchscreen
- Jacket Outer Diameter
- 0.5/ 1m: 4.5 mm (0.18") 3 m: 5.6 mm (0.22")
- Managed UniFi Devices
- 500+
- New Sessions / Second
- 71,000
- VPN & SD-WAN: OpenVPN
- 210 Mbps
- Grid overview: IDS/IPS
- 12.5 Gbps
- Hardware: Power Method
- Universal AC input, 100–240V AC, 7A Max., 50/60 Hz
- Hardware: Power Supply
- (2) Hot-swappable 150W CRPS
- Max. Power Consumption
- 1.9W
- VPN & SD-WAN: Teleport
- 1.2 Gbps
- Hardware: Max. TX Power
- 23 dBm
- Software: UniFi Network
- Version 10.4.57 and later
- VPN & SD-WAN: WireGuard
- 1.2 Gbps
- Hardware: Certifications
- CE, FCC, IC, Anatel: 06375-24-08356, SRRC
- Supported Cable Distance
- 10 Gbps (Cat 6A): 100 m (328 ft)
- VPN & SD-WAN: Site Magic
- 1.1 Gbps
- Hardware: Frequency Bands
- n1, n3, n5, n7, n8, n20, n26, n28, n40, n41, n77, n78
- Hardware: Heat Dissipation
- 280 BTU/hr
- Mechanical: Mount Material
- Galvanized steel, silicone rubber
- Hardware: ESD/EMP Protection
- Air: ± 8kV, contact: ± 4kV
- Hardware: Enclosure Material
- Aluminium CNC, SGCC steel
- Security: IDS/IPS Signatures
- 95,000+ with CyberSecure Enterprise
- Simultaneous Users Connected
- 5,000+
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Mechanical: Enclosure Material
- Polycarbonate, aluminum alloy
- Grid overview: Max. Client Count
- 5,000
- Hardware: Max. Power Consumption
- 82W
- Grid overview: IDS/IPS Throughput
- 12.5 Gbps
- Hardware: Supported Voltage Range
- 100–240V AC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- SSL/TLS Inspection Concurrent Sessions
- 10,000
- Hardware: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- VPN & SD-WAN: Identity Endpoint One-Click VPN
- 1.2 Gbps
