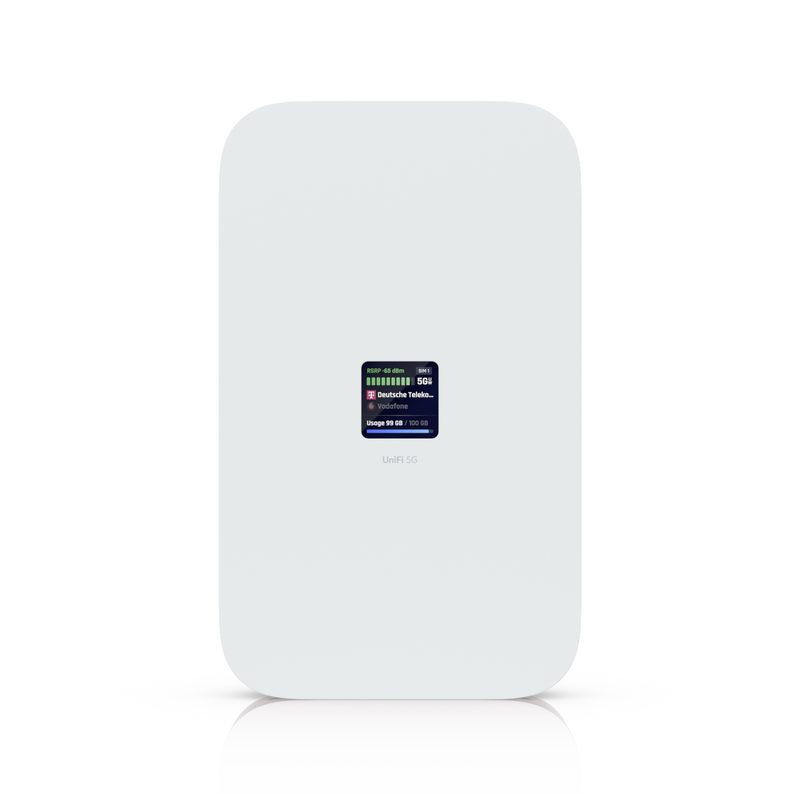

Ubiquiti UICARE-U5G-Max-Outdoor
Ubiquiti · UICARE-U5G-Max-Outdoor-D
Lieferzeit auf Anfrage
110,24 €inkl. MwSt., zzgl. Versand
Beschreibung
A high-performance 5G (3.4 Gbps) modem for any Unifi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.
Technische Daten
- SIM
- (1) Nano SIM (1) Nano-SIM or eSIM
- Mounting
- Pole mount, wall mount (Included)
- Dimensions
- Device: 220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6") With mount: 220 x 165 x 122 mm (8.7 x 6.5 x 4.8")
- PoE Interface
- (1) PoE input
- Hardware: Type
- (6) Embedded cellular antennas, including (2) high-gain for downlink: peak 9 dBi, 85°x85°
- Hardware: 5G SA
- Downlink 1.8 Gbps Uplink 650 Mbps
- Weatherproofing
- IPX6 IP67 (With cable-gland door kit)
- Hardware: 4G LTE
- Downlink 1.6 Gbps Uplink 210 Mbps
- Hardware: 5G NSA
- Downlink 3.4 Gbps Uplink 560 Mbps
- Hardware: Buttons
- (1) Factory reset
- Hardware: Display
- 1.3" touchscreen
- Tamper Resistance
- IK04
- Hardware: Category
- 5G NR
- Mechanical: Weight
- Device: 1.2 kg (2.6 lb) Mount: 130 g (4.6 oz)
- Hardware: Management
- Ethernet
- Networking Interface
- (1) 2.5 GbE RJ45 port 5G NR and LTE radio
- Hardware: Power Method
- PoE
- Hardware: Max. TX Power
- HPUE power class 2: 26 dBm
- Software: UniFi Network
- Version 10.0.162 and later
- Hardware: Certifications
- CE, PTCRB, GCF
- Mechanical: Wind Loading
- 91N at 200 km/h (20.45 lbf at 125 mph)
- Hardware: Frequency Bands
- n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
- Mechanical: Mount Material
- UV-stabilized polycarbonate
- Mechanical: Enclosure Material
- Aluminum-alloy, UV-stabilized polycarbonate
- Mechanical: Pole Mount Diameter
- 1–2.5" (25–63.5 mm) on pipe outer diameter
- Hardware: Max. Power Consumption
- 14.5W
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -40 to 65 °C (-40 to 149 °F)
