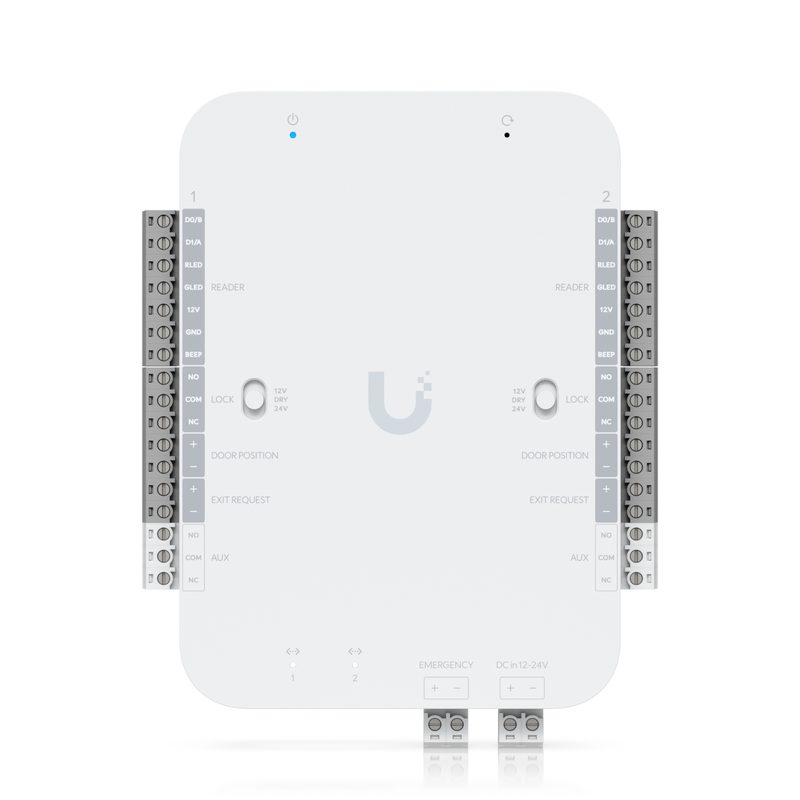

Ubiquiti UICARE-UA-Retrofit-Hub-2

Beschreibung

DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors.

Technische Daten

Length

152.4 m (500 ft)

Weight

UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)

Material

Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC)

1 GbE RJ45

9 (4 PoE+; 4 PoE++) (1G/100M/10M)

Dimensions

140 x 120 x 45 mm (5.5 x 4.7 x 1.8")

Insulation

UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG)

Redundancy

Battery Power Backup

Bend Radius

UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")

Form Factor

Rack mount (1U)

Flame Rating

VW-1

Jacket Color

White

Power Method

12/24V DC

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Conductor DCR

UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)

Current Rating

18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length

Hardware: LEDs

W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>

Hardware: PoE+

4

Hardware: PoE++

4

Input Terminals

(2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency

Max. PoE Output

Up to PoE++

Pulling Tension

UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf

Supported Doors

2

Weatherproofing

IP55

Hardware: Button

(1) Factory reset

Hardware: Weight

Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb)

Hardware: Buttons

(1) Factory reset (2) 12V/Dry/24V switch

Grid overview: NFC

NFC

Hardware: Security

OSDP v2

Maximum User Count

10,000

Mechanical: Weight

420 g (14.8 oz)

Conductor Wire Gauge

UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG

Grid overview: Apple

Touch Pass

Hardware: Efficiency

85%

Hardware: Management

Ethernet AR

Mechanical: Mounting

Din-rail (Included)

Number of Conductors

UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2

Hardware: LCM Display

1.3" touchscreen

Jacket Outer Diameter

UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")

Hardware: Connectivity

RS-485 BLE 4.1 NFC

Hardware: Power Method

100–240V AC, 50/60 Hz 12V SLA battery

Hardware: Power Supply

DC 12/24V

Mechanical: Dimensions

127 x 76 x 35 mm (5 x 3 x 1.4")

Total PoE Availability

120W

Hardware: Digital Input

(2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency

Hardware: NFC Frequency

13.56 MHz

Hardware: Output Rating

12V DC, 5A

Software: UniFi Network

Version 6.2.26 and later

Supported Voltage Range

36V DC

UniFi Application Suite

Access

Hardware: Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Hardware: ESD Protection

Air/contact: ± 24kV

Hardware: NFC Read Range

< 30 mm (1.18'')

Hardware: NFC Technology

ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire

Hardware: Dry Output Relay

Lock: rated 30V DC, up to 1A Aux: rated 30V DC, up to 1A

Hardware: Heat Dissipation

170.6 BTU/hr (Excluding PoE Output)

Hardware: Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Hardware: UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power

Mechanical: Mount Material

SGCC steel

Ambient Storage Temperature

-45 to 65° C (-49 to 149° F)

Grid overview: Weatherproof

Outdoor Exposed

Hardware: Wiring Connection

(1) AC input (1) DC output (For Retrofit Hub) (1) DC input/output (For Battery)

Grid overview: AUX Terminals

2 AUX Terminals

Hardware: ESD/EMP Protection

Air: ± 15kV, contact: ± 8kV

Hardware: Enclosure Material

SGCC steel

Hardware: Power Input Method

AC input DC input (Backup)

Hardware: SLA Backup Battery

Voltage: 12V Charging current 0.5A

Performance: Forwarding Rate

13 Mpps

Performance: Supported VLANs

1,000

Ambient Operating Temperature

-45 to 65° C (-49 to 149° F)

Grid overview: Lock Terminals

2 Lock Terminals

Hardware: Reader Power Output

12V DC, up to 0.5A

Hardware: Networking Interface

(2) 10/100 MbE RJ45 ports

Hardware: Powered Output Relay

12V Lock: 12V DC, up to 1A 24V Lock: 24V DC, up to 0.5A

Hardware: Supported Rack Depth

482.6 mm (19") four-post racks Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)

Mechanical: Enclosure Material

Polycarbonate

Software: Software Information

The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>

Performance: Packet Buffer Size

0.5 MB

Performance: Switching Capacity

18 Gbps

Grid overview: Additional Inputs

2 Additional Inputs

Hardware: Indoor and Outdoor Use

Indoor only

Hardware: Max. Power Consumption

50W

Software: Management Application

Access

Hardware: Supported Voltage Range

100–240V AC

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: I

Hardware: PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge per

Hardware: UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

Performance: MAC Address Table Size

8,000

Hardware: Ambient Operating Humidity

5 to 90% noncondensing

Hardware: UA-Retrofit-Reader (250mA)

18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft)

Hardware: Ambient Storage Temperature

-40 to 70 C (-40 to 158 F)

Hardware: Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Hardware: UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Hardware: UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

Performance: Total Non-Blocking Throughput

9 Gbps

Hardware: Document number, and issue date and/or revision le

UA-Retrofit-Hub-2, V01
