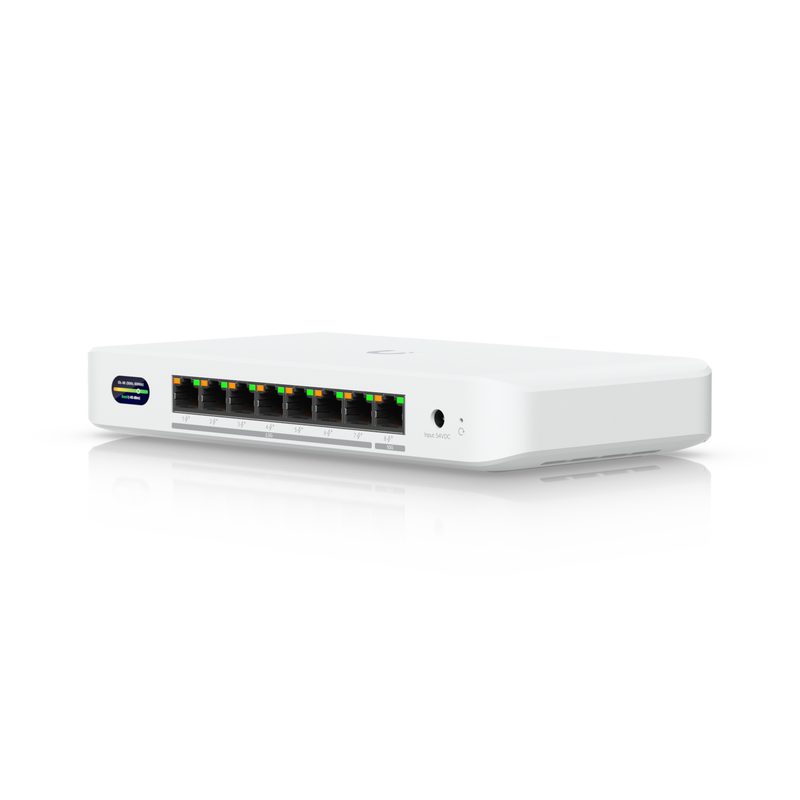

Ubiquiti UICARE-UDB-Switch-EU
Ubiquiti · UICARE-UDB-Switch-EU-D
Lieferzeit auf Anfrage
70,65 €inkl. MwSt., zzgl. Versand
Beschreibung
Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.
Technische Daten
- Weight
- 1.2 kg (2.6 lb)
- Dimensions
- 212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3")
- Output Plug
- DC plug: 5.5 x 2.1 x 11.5 mm (0.2 x 0.08 x 0.5") DC cable: UL11353 16AWG 1.5 m (4.9 ft)
- AC Connector
- C14 INLET (input)
- Power Method
- DC jack (54V DC/1.1A)
- Power Supply
- 54V DC/1.1A (Adapter included)
- WiFi Standard
- WiFi 7
- Spatial Streams
- 4
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- Device: 548 g (1.21 lb) With mount: 563 g (1.24 lb)
- Hardware: Antennas
- (1) Internal
- Mounting Locations
- Desktop, wall
- Performance: 5 GHz
- 2 x 2
- Performance: 6 GHz
- 2 x 2
- Hardware: Management
- Ethernet WiFi
- Performance: 802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Hardware: LCM Display
- 0.96" status display
- Hardware: PoE Interface
- (8) PoE+ ports
- Software: UniFi Network
- Version 10.0.156 or later.
- Supported Voltage Range
- Input: 100–240V AC Output: 54V DC
- Hardware: Certifications
- CE, FCC, IC
- Hardware: Mount Material
- Polycarbonate
- Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Channel Bandwidth
- 20/40/80/160/240/320 MHz
- Hardware: Enclosure Material
- Polycarbonate
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Hardware: Operating Frequency
- Worldwide: 5150—5875 MHz 5945—7125 MHz
- Hardware: Networking Interface
- (1) 10 GbE RJ45 port (7) 2.5 GbE RJ45 ports
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- Performance: 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- Performance: 802.11be (WiFi 7)
- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- Performance: Wireless Security
- WPA3 SAE (Always On)
- Hardware: Max. Power Consumption
- 25W (Excluding PoE output)
- Hardware: Total PoE Availability
- 60W AC adapter input: 35W 210W AC adapter input: 185W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Hardware: Max. PoE Wattage per Port
- 30W
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Performance: Max. Conducted TX Power
- 26 dBm (Combined)
- Hardware: Ambient Operating Temperature
- -30 to 40° C (-22 to 104° F)
