Ubiquiti UICARE-UDW-EU
Ubiquiti · UICARE-UDW-EU-D
Lieferzeit auf Anfrage
219,94 €inkl. MwSt., zzgl. Versand
Beschreibung

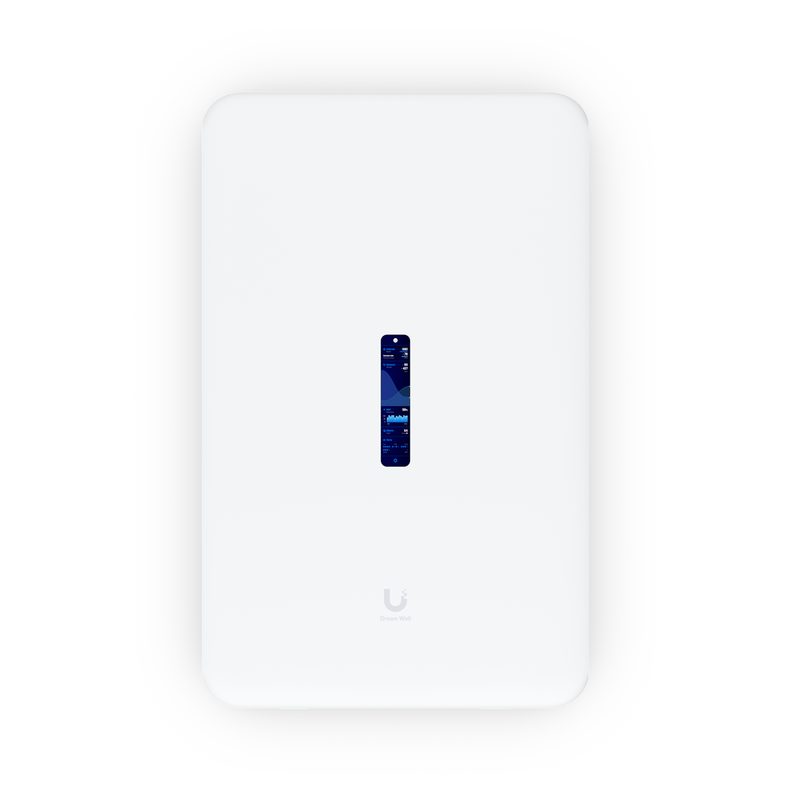

Wall-mounted 10G Cloud Gateway with integrated WiFi 6, high-power PoE switching, and full UniFi application support.
Technische Daten
- SIM
- (1) Nano SIM (4FF) (1) eSIM
- Wire
- Copper
- Weight
- UACC-CRB: 210 g (7.4 oz) UACC-CRE: 50 g (1.8 oz) UACC-CRS: 250 g (8.8 oz)
- 10G SFP+
- 2 (10G/1G)
- Mounting
- Desktop stand, wall, window mount (Included)
- 1 GbE RJ45
- 17 (4 PoE++; 4 PoE+; 4 PoE (1G/100M/10M)
- Dimensions
- 549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
- Redundancy
- (2) Hot-Swappable PSUs
- Bend Radius
- 0.5 / 1 m: Min. 22 mm (0.87") 3 m: Min. 32 mm (1.26")
- Form Factor
- Wall-mounted
- Wave Length
- 850 nm
- 2.5 GbE RJ45
- 1 (2.5G/1G/100M)
- Jacket Color
- Black
- Pack Options
- Single Unit
- Coverage Area
- 140 m² (1,500 ft²)
- Hardware: PoE
- 15.4W
- Input Current
- 7A Max.
- PoE Interface
- (1) PoE input
- Certifications
- CE, FCC, IC
- Connector Type
- SFP+ to SFP+
- Hardware: PoE+
- 30W
- Hardware: Type
- (2) Embedded omni-directional cellular antennas
- Output Current
- 10A
- Output Voltage
- 54.8V DC
- Software: VLAN
- 802.1Q
- Hardware: 5G SA
- Downlink 220 Mbps / Uplink 120 Mbps
- Hardware: PoE++
- 60W
- Input Connector
- JYP-M1207D-RT03R
- Input Frequency
- 50/60 Hz
- Jacket Material
- PVC
- Managed Cameras
- (12) HD (7) 2K (4) 4K
- Hardware: 4G LTE
- Downlink 195 Mbps / Uplink 100 Mbps
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- 8.6 kg (19 lb)
- Available Lengths
- 0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)
- Default WAN Ports
- (1) 2.5 GbE RJ45 (1) 10G SFP+
- Hardware: Buttons
- (1) Factory reset
- Hardware: Display
- 1.14" status display
- Enclosure Material
- Polycarbonate and ABS blend
- Hardware: Category
- 5G RedCap
- IDS/IPS Throughput
- 3.5 Gbps
- Mechanical: Weight
- Device: 122 g (4.3 oz) Stand: 138 g (4.9 oz) Wall mount: 66 g ( 2.3 oz)
- Total Output Power
- 550W
- Hardware: Processor
- Quad-core ARM® Cortex®-A57 at 1.7 GHz
- Input Voltage Range
- 100–240V AC
- Max. WAN Port Count
- 8
- Supported Data Rate
- 1 / 10 Gbps
- Hardware: Management
- Ethernet Bluetooth
- Hardware: PoE Budget
- 420W
- Networking Interface
- (1) GbE RJ45 port 5G RedCap and LTE
- Software: Mobile App
- UniFi iOS™ version 10.35.0 and later UniFi Android™ version 10.38.2 and later
- Hardware: LCM Display
- 4.7" touchscreen
- Hardware: NVR Storage
- Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings
- Jacket Outer Diameter
- 0.5/ 1m: 4.2 mm (0.17") 3 m: 6 mm (0.24")
- Managed UniFi Devices
- 100+
- Grid overview: IDS/IPS
- 3.5 Gbps
- Hardware: Power Method
- Universal AC input 100–240V AC, 7A Max., 50/60Hz
- Hardware: Power Supply
- (2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU
- Integrated WiFi: 5 GHz
- 2.4 Gbps
- Hardware: Max. TX Power
- 23 dBm
- Hardware: System Memory
- 4 GB
- Software: UniFi Network
- Version 10.4.57 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 18314-23-08356
- Hardware: Expansion Slot
- MicroSD Card
- Hardware: Mount Material
- Stainless steel
- Integrated WiFi: 2.4 GHz
- 300 Mbps
- Integrated WiFi: 802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Integrated WiFi: 802.11b
- 1, 2, 5.5, 11 Mbps
- Integrated WiFi: 802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Integrated WiFi: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Hardware: Frequency Bands
- n1, n3, n5, n7, n8, n20, n26, n28, n40, n41, n77, n78
- Hardware: Heat Dissipation
- 382 BTU/hr (Excluding PoE Output)
- Hardware: On-board Storage
- 16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card
- Mechanical: Mount Material
- Galvanized steel, silicone rubber
- Hardware: ESD/EMP Protection
- Air: ± 8kV, contact: ± 4kV
- Hardware: Enclosure Material
- Polycarbonate, galvanized steel, aluminum alloy
- Integrated WiFi: Max. BSSIDs
- 8 per Radio
- Security: IDS/IPS Signatures
- 55,000+ with CyberSecure
- Simultaneous Users Connected
- 300+
- Ambient Operating Temperature
- 0 to 70° C (32 to 158° F)
- Integrated WiFi: WiFi Standard
- 802.11a/b/g/n/ac/ax (WiFi 6)
- Mechanical: Enclosure Material
- Polycarbonate, aluminum alloy
- Grid overview: Max. Client Count
- 300
- Hardware: Max. Power Consumption
- 532W (Including PoE Output)
- Hardware: Voltage Range PoE Mode
- PoE: 44-57V PoE+/PoE++: 50-57V
- Grid overview: IDS/IPS Throughput
- 3.5 Gbps
- Hardware: Supported Voltage Range
- 100–240V AC
- Integrated WiFi: 802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- Integrated WiFi: 802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
- Integrated WiFi: Wireless Security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- Networking: MAC Address Table Size
- 8,000
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -10 to 40° C (14 to 104° F)
