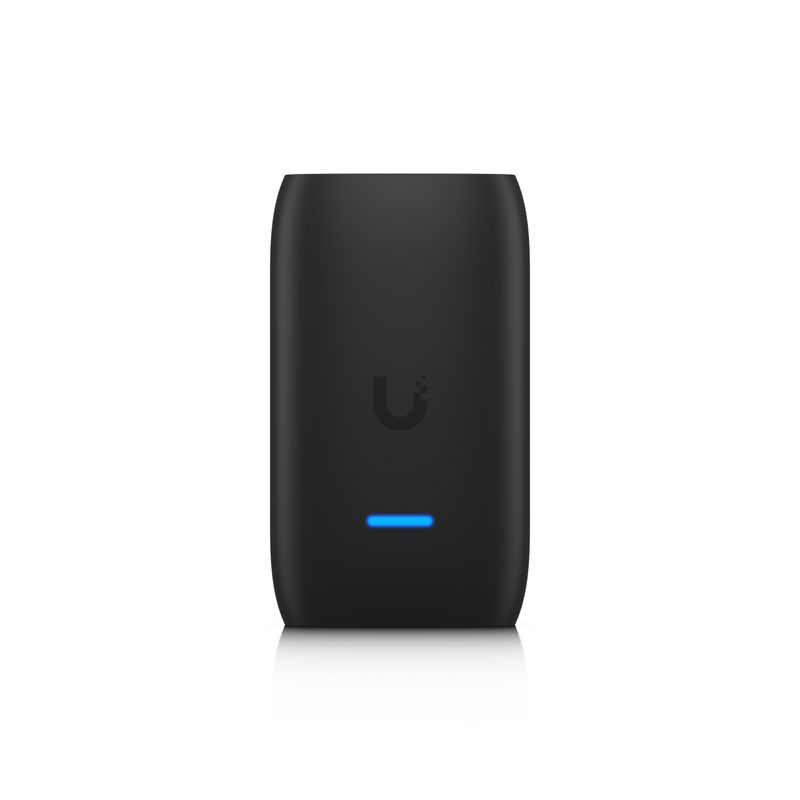

Ubiquiti UniFi Display Cast Lite &bull 1080p &bull HDMI &bull USB-C &bull UC-Cast-Lite
Ubiquiti · UC-Cast-Lite · EAN 0810084698297
sofort lieferbar
220,22 €inkl. MwSt., zzgl. Versand
Beschreibung
Digital signage player designed for media playback on HDMI displays.
Technische Daten
- Type
- HDMI 2.1b
- Höhe
- 6,8 cm
- Tiefe
- 16,0 cm
- Breite
- 10,5 cm
- Length
- 1, 2, 5 m (3.3, 6.6, 16.4 ft)
- Weight
- 18, 45, 85 g (0.6, 1.6, 3 oz)
- Gewicht
- 0,355 kg
- Standards
- HDMI 2.1b
- Dimensions
- Without mount: 90 x 52 x 31 mm (3.5 x 2.1 x 1.2") With mount: 92.1 x 56.3 x 40.8 mm (3.6 x 2.2 x 1.6")
- Bend Radius
- 1 m: Min. 11.2 mm (0.44") 2 m: Min. 32 mm (1.26 ") 5 m: Min. 26.4 mm (1")
- Flame Rating
- VW-1 (UL1581)
- Jacket Color
- Black
- Conductor Type
- 1/2 m: Bare copper 5 m: Fiber optics
- Display Output
- (1) HDMI port
- Unidirectional
- 1 m: — 2 m: — 5 m: Yes
- Jacket Diameter
- 1 m: 2.8 mm (0.11") 2 m: 4 mm (0.16") 5 m: 3.3 mm (0.13")
- Jacket Material
- 1/2 m: Thermoplastic elastomer (TPE) 5 m: Thermoplastic elastomer (TPE), braided
- Hardware: Memory
- Storage: 16 GB RAM: 2 GB
- Hardware: System
- White/blue (<a href="https://help.ui.com/hc/en-us/articles/204910134-Understanding-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> )
- Hardware: Buttons
- (1) Factory reset
- Mechanical: Weight
- Without mount: 160 g (5.6 oz) With mount: 180 g (6.3 oz)
- Conductor Wire Gage
- 1 m: 38 AWG 2 m: 34 AWG 5 m: —
- Hardware: Processor
- Quad-Core Arm® Cortex®-A55, 1.9 GHz
- Video Content Support
- 480p / 720p / 1080p
- Hardware: Connectivity
- WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz
- Hardware: Power Method
- (1) USB Type-C 5V DC, 1A
- Hardware: Certifications
- CE, FCC, IC, Wi-Fi CERTIFIED UL 62368-1, CSA C22.2 No. 62368-1
- Hardware: WiFi Standards
- 802.11 a/b/g/n/ac/ax
- Ambient Storage Temperature
- 1/2 m: -20 to 80°C (–4 to 176°F) 5 m: -20 to 70°C (–4 to 158°F)
- Software: UniFi Connect Web
- Version 3.17.0 and later
- Ambient Operating Temperature
- 1/2 m: -20 to 80°C (–4 to 176°F) 5 m: -20 to 70°C (–4 to 158°F)
- Mechanical: Pole Mount Diameter
- 1~2" (25–50 mm)
- Hardware: Max. Power Consumption
- 5W
- Hardware: Ambient Operating Humidity
- 20 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Software: UniFi Connect iOS™ and Android™
- Version 2.26.0 and later
