Ubiquiti UICARE-UP-AI-Horn-Speaker-B
Ubiquiti · UICARE-UP-AI-Horn-Speaker-B-D
Lieferzeit auf Anfrage
70,65 €inkl. MwSt., zzgl. Versand
Beschreibung

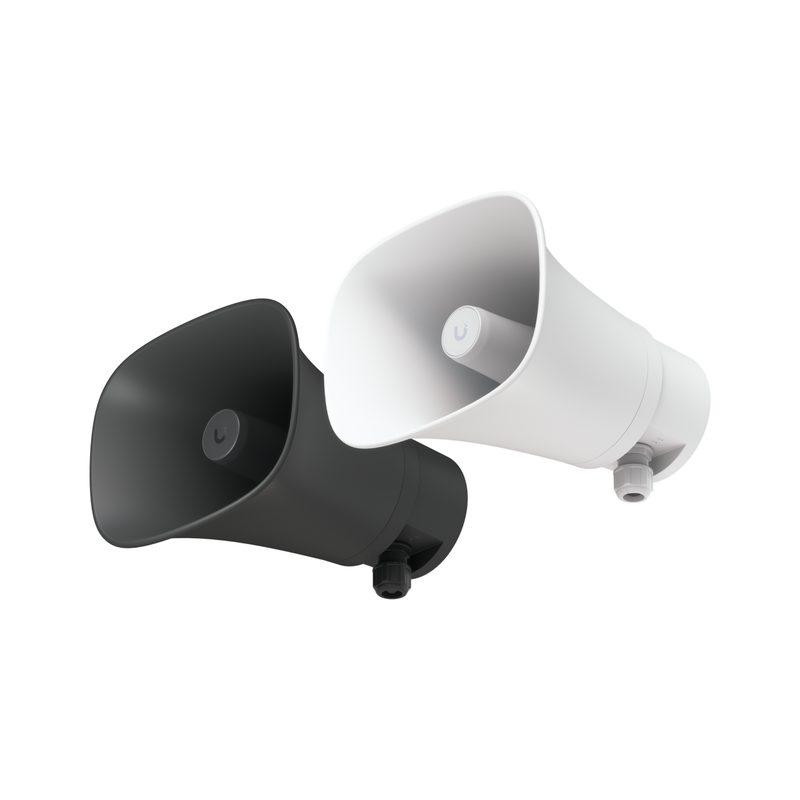

All-weather PoE 120 dB horn speaker with advanced AI alert functionality and versatile wall and pole mounting options.
Technische Daten
- Mounting
- Articulating mount for wall, pole mount (Included)
- Connector
- (2) Shielding RJ45
- Standards
- TIA/EIA-568-B.2 ISO/IEC 11801
- Dimensions
- Device: 267 x 189 x 247 mm (10.5 x 7.4 x 9.7") Articulating mount: ⌀104 x 149.4 mm (⌀4.1 x 5.9")
- Bend Radius
- Min. 50.4 mm (1.98'')
- Flame Rating
- VW-1 (UL1581)
- Pack Options
- Single Unit
- UV Resistance
- ASTM G 151/154
- Conductor Type
- Stranded copper
- Shielding Type
- S/FTP
- Jacket Diameter
- 6.3 mm (0.25")
- Jacket Material
- Thermoplastic elastomer (TPE)
- Available Colors
- White, Black
- Hardware: System
- R/G/B/W
- Available Lengths
- 1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)
- Hardware: Buttons
- (1) Factory reset
- Mechanical: Weight
- Device: 1.55 kg (3.4 lb) Articulating mount: 1.3 kg (2.9 lb)
- Supported PoE Type
- Up to PoE+++
- Conductor Wire Gage
- 24 AWG
- Supported Data Rate
- GbE
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Operating Environment
- Outdoor
- Hardware: Power Method
- PoE+
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Hardware: Certifications
- FCC, IC, CE
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Installation Temperature
- -20 to 60°C (-4 to 140°F)
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Ambient Storage Temperature
- -40 to 80°C (-40 to 176°F)
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IP66
- Ambient Operating Temperature
- -30 to 75°C (-22 to 167°F)
- Mechanical: Mounting Material
- Stainless steel, aluminum alloy
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (1) 100/10 MbE RJ45 port
- Mechanical: Enclosure Material
- UV-stabilized polycarbonate, aluminum alloy
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Mechanical: Pole Mount Diameter
- 1—2.5" (25—63.5 mm)
- Hardware: Max. Power Consumption
- 14.3W
- Hardware: Ambient Operating Humidity
- 10 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -40 to 60° C (-40 to 140° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
