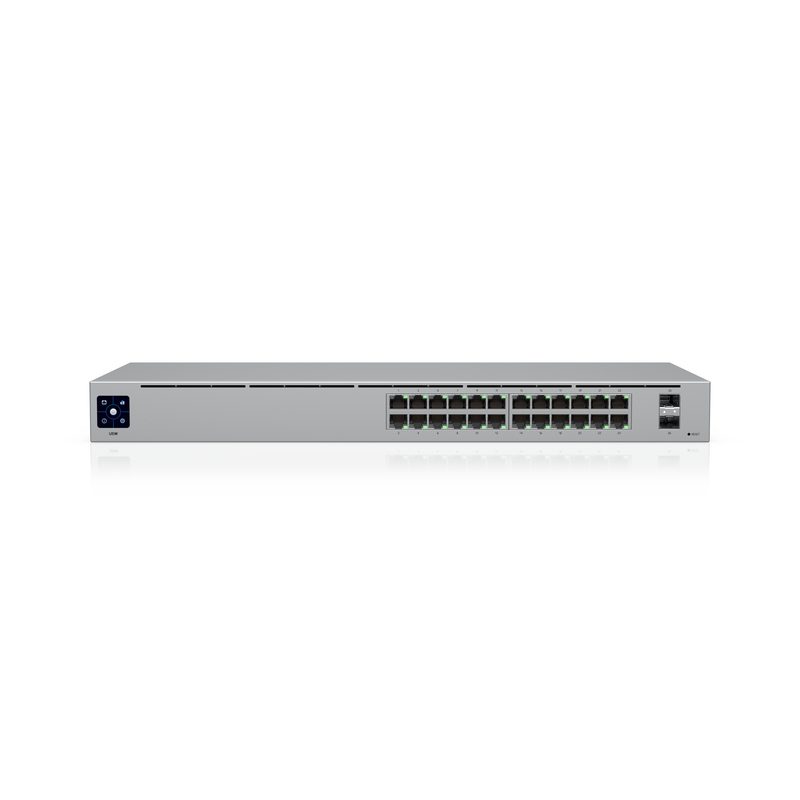

24+2P UbiQuiti UniFi USW-24 M RM

Beschreibung

A 24-port, Layer 2 switch with a silent, fanless cooling system.

Technische Daten

Höhe

12,0 cm

Tiefe

51,0 cm

1G SFP

2 (1G)

Breite

30,0 cm

Gewicht

3,613 kg

WARNING

CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered.

Connector

RJ45

1 GbE RJ45

24 (1G/100M/10M)

Dimensions

442 x 200 x 44 mm (17.4 x 7.9 x 1.7")

Form Factor

Rack mount (1U)

Pack Options

Single Unit

RX Wavelength

1550 / 1310 nm

TX Wavelength

1310 / 1550 nm

Supported Media

Copper

Hardware: Weight

Without mounting brackets: 2.7 kg (6 lb) With mounting brackets: 2.8 kg (6.2 lb)

Performance: MAC

128

Performance: IPv4

128

Supported Data Rate

10 / 100 / 1000 Mbps

Hardware: Management

Ethernet AR

Hardware: LCM Display

1.3" touchscreen

Hardware: Power Method

Universal input, 100–240V AC, 50/60 Hz

Hardware: Power Supply

AC/DC, internal, 36W

Max. Power Consumption

1.2W

Software: UniFi Network

Version 7.2.94 and later

Hardware: Certifications

CE, FCC, IC, Anatel: 17193-20-08356

Hardware: Mount Material

SGCC steel

Supported Cable Distance

100 m (328 ft)

Hardware: Heat Dissipation

85.3 BTU/hr

Hardware: Enclosure Material

SGCC steel

Hardware: Power Input Method

AC input

Performance: Forwarding Rate

39 Mpps

Performance: Supported VLANs

1,000

Ambient Operating Temperature

0 to 70° C (32 to 158° F)

Hardware: Supported Rack Depth

400~1200 mm (15.7-47.2")

Performance: Packet Buffer Size

0.5 MB

Performance: Switching Capacity

52 Gbps

Hardware: Max. Power Consumption

25W

Hardware: Supported Voltage Range

100–240V AC

Performance: MAC Address Table Size

8,000

Hardware: Ambient Operating Humidity

10 to 90% noncondensing

Hardware: Ambient Operating Temperature

-5 to 45° C (23 to 113° F)

Performance: Total Non-Blocking Throughput

26 Gbps
