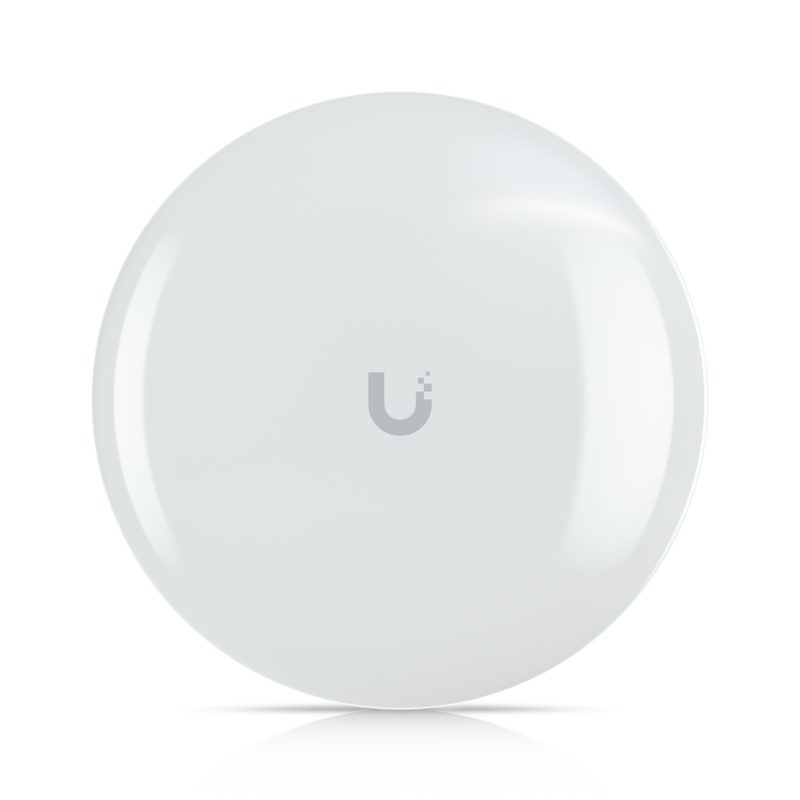

Ubiquiti Wireless Device Bridge Pro UDB-Pro
Ubiquiti · UDB-Pro · EAN 0810084698051
sofort lieferbar
264,16 €inkl. MwSt., zzgl. Versand
Beschreibung
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
Technische Daten
- Höhe
- 12,4 cm
- Tiefe
- 22,7 cm
- Breite
- 22,9 cm
- Weight
- 50.1 g (1.8 oz)
- Gewicht
- 1,011 kg
- Mounting
- Pole (Included)
- Dimensions
- ⌀189.5 x 64.3 mm (⌀7.4 x 2.5")
- Power Method
- PoE PoE+ (Required for PoE output)
- Power Supply
- 48V, 0.32A PoE adapter (Included)
- Compatibility
- NBE-M5-16, UBB, GBE using the universal ball mount UDB-Pro, NBE-5AC-Gen2 and NBE-M5-19 using the universal ball mount and metal washer loco5AC, NS-5AC, and LTU-Lite using the ball mount assembly
- Coverage Area
- 5 km (3.1 mi)
- WiFi Standard
- WiFi 5
- Spatial Streams
- 2
- Weatherproofing
- IPX6
- Hardware: Button
- (1) Factory reset
- Hardware: System
- Power, (2) Ethernet status - main port/PoE out port, (4) signal strength
- Hardware: Weight
- Device: 431 g (0.95 lb) With mount: 515 g (1.1 lb)
- Enclosure Material
- Polycarbonate, metal
- Hardware: Antennas
- Internal
- Mechanical: Weight
- 80 g (2.8 oz)
- Mounting Locations
- Wall, pole
- Performance: 5 GHz
- 2 x 2
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Hardware: Management
- (1) PoE in (PoE output not used) (1) Passive PoE output
- Performance: 802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Hardware: Wind Loading
- 69 N at 200 km/h (15.5 lbf at 125 mph)
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Hardware: Certifications
- CE, FCC, IC
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Mount Material
- UV-stabilized polycarbonate, stainless steel
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Hardware: Channel Bandwidth
- 20/40/80 (MHz)
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IPX5
- Hardware: Enclosure Material
- UV-resistant polycarbonate
- Hardware: Operating Frequency
- US/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz
- Hardware: Pole Mount Diameter
- 0.8–2.1" (20–53.1 mm)
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (2) GbE RJ45 ports
- Mechanical: Enclosure Material
- Polycarbonate
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
- Performance: Wireless Security
- WPA2 AES
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Hardware: Max. Power Consumption
- 9W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Performance: Max. Conducted TX Power
- 25 dBm (Combined)
- Hardware: Ambient Operating Temperature
- -40 to 60° C (-40 to 140° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
