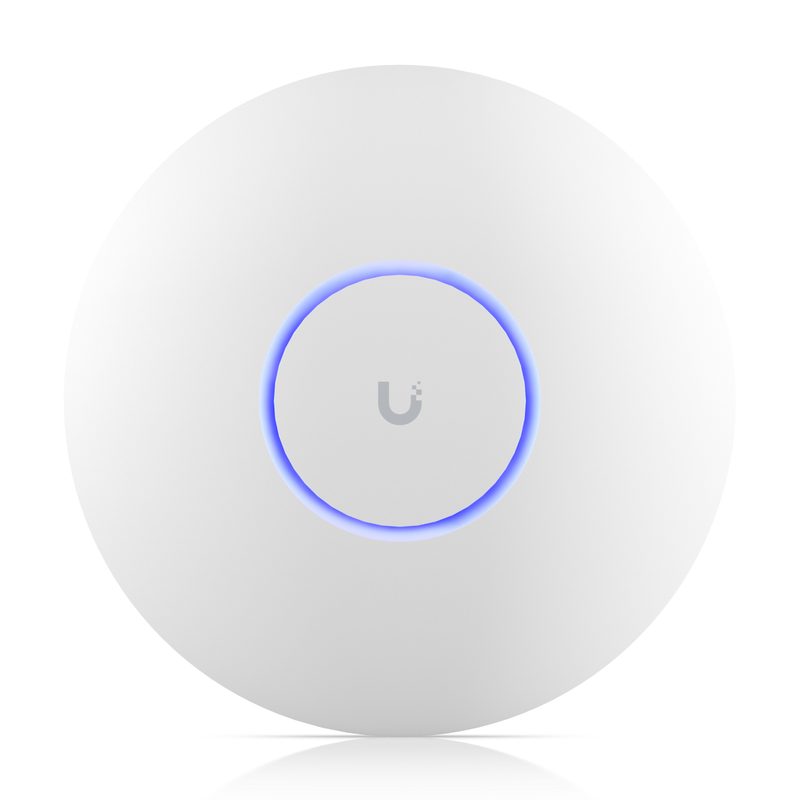

Ubiquiti Unifi U7-PRO-Max Wifi-7
Ubiquiti · U7-PRO-MAX · EAN 0810084695555
sofort lieferbar
336,85 €inkl. MwSt., zzgl. Versand
Beschreibung
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
Technische Daten
- Höhe
- 24,6 cm
- Tiefe
- 24,8 cm
- Breite
- 9,5 cm
- Uplink
- 2.5 GbE
- Weight
- 160 g (5.6 oz)
- Gewicht
- 1,278 kg
- Mounting
- Ceiling, Wall (Pro Mount Included)
- Dimensions
- ⌀206 x 46 mm (⌀8.1 x 1.8")
- Power Method
- PoE+
- Coverage Area
- 160 m² (1,750 ft²)
- WiFi Standard
- WiFi 7
- Spatial Streams
- 8
- Hardware: System
- White/Blue
- Hardware: Weight
- 680 g (1.5 lb)
- Max. Client Count
- 500+
- Enclosure Material
- Polycarbonate
- Performance: 5 GHz
- 4 x 4 (DL/UL MU-MIMO)
- Performance: 6 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Grid overview: WiFi7
- WiFi 7
- Hardware: Management
- Ethernet
- Performance: 2.4 GHz
- 2 x 2 (DL/UL MU-MIMO)
- Performance: 802.11n
- 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
- Grid overview: Uplink
- 2.5 GbE
- Software: UniFi Network
- Version 8.2.93 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 08959-24-08356
- Hardware: Mount Material
- Stainless steel (SUS304), galvanized steel (SGCC)
- Performance: Max. BSSIDs
- 8 per Radio
- Hardware: Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- Grid overview: Radio/Antenna
- 6 GHz Radio
- Hardware: Enclosure Material
- Polycarbonate, aluminum
- Compatible Coloring Materials
- Spray can (Krylon/Telox) Acrylic color Poster color (Pentel) Coloring pen (Gel pen/Sharpie)
- Hardware: Operating Frequency
- US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 58
- Hardware: Networking Interface
- (1) 1/2.5 GbE RJ45 port
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- Performance: 802.11be (WiFi 7)
- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
- Grid overview: Max. Client Count
- 500
- Hardware: Max. Power Consumption
- 25W
- Hardware: Supported Voltage Range
- 44–57V DC
- Performance: 802.11ax (WiFi 6/6E)
- 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -30 to 50° C (-22 to 122° F)
