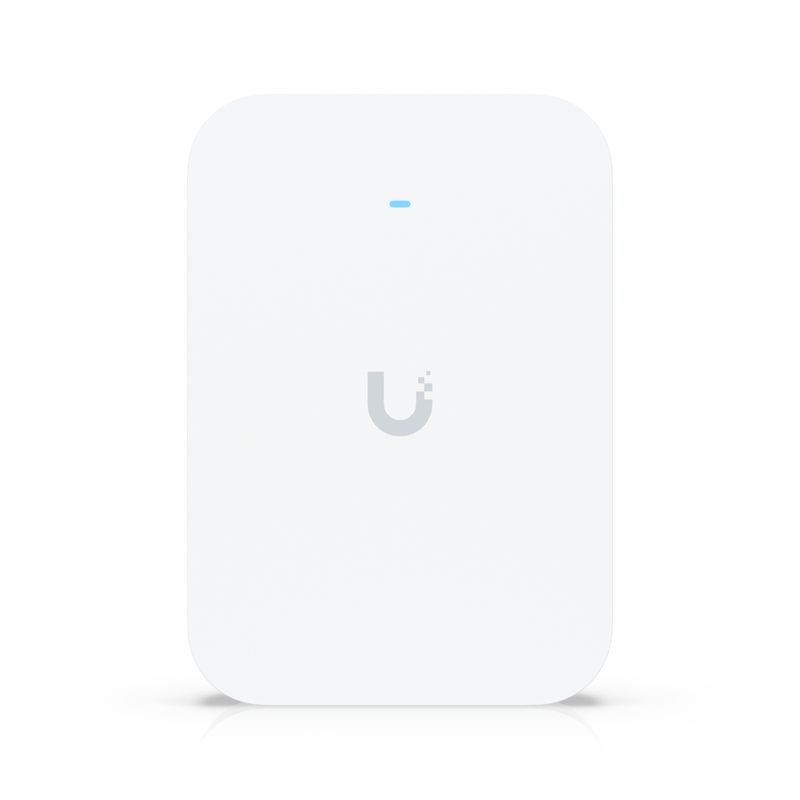

Ubiquiti U7-Pro-XG-Wall

Beschreibung

Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/5/10 GbE support.

Technische Daten

Uplink

10 GbE

Weight

200 g (7.1 oz)

Gewicht

0,735 kg

Mounting

Wall

Treatment

Painting

Dimensions

155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3'')

Power Method

PoE+

Coverage Area

140 m² (1,500 ft²)

WiFi Standard

WiFi 7

Spatial Streams

6

Hardware: System

W/B

Hardware: Weight

505 g (1.1 lb)

Max. Client Count

300+

Enclosure Material

Polycarbonate, aluminum alloy, silicone rubber

Performance: 5 GHz

2 x 2 (DL/UL MU-MIMO)

Performance: 6 GHz

2 x 2 (DL/UL MU-MIMO)

Grid overview: WiFi7

WiFi 7

Hardware: Management

Ethernet

Performance: 2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Performance: 802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Software: Mobile App

iOS™ version 10.29.3 and later Android™ version 10.31.1 and later

Software: UniFi Network

Version 10.0 and later

Hardware: Certifications

CE, FCC, IC

Hardware: Mount Material

Aluminum alloy

Performance: Max. BSSIDs

8 per Radio

Hardware: Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Grid overview: Radio/Antenna

6 GHz Radio

Hardware: Enclosure Material

Polycarbonate, aluminum alloy

Hardware: Networking Interface

(1) 10 GbE RJ45 port

Performance: 802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

Performance: 802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Performance: 802.11be (WiFi 7)

6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

Hardware: Max. Power Consumption

22W

Hardware: Supported Voltage Range

42.5–57V DC

Hardware: Ambient Operating Humidity

5 to 95% noncondensing

Hardware: Ambient Operating Temperature

-30 to 40° C (-22 to 104° F)
