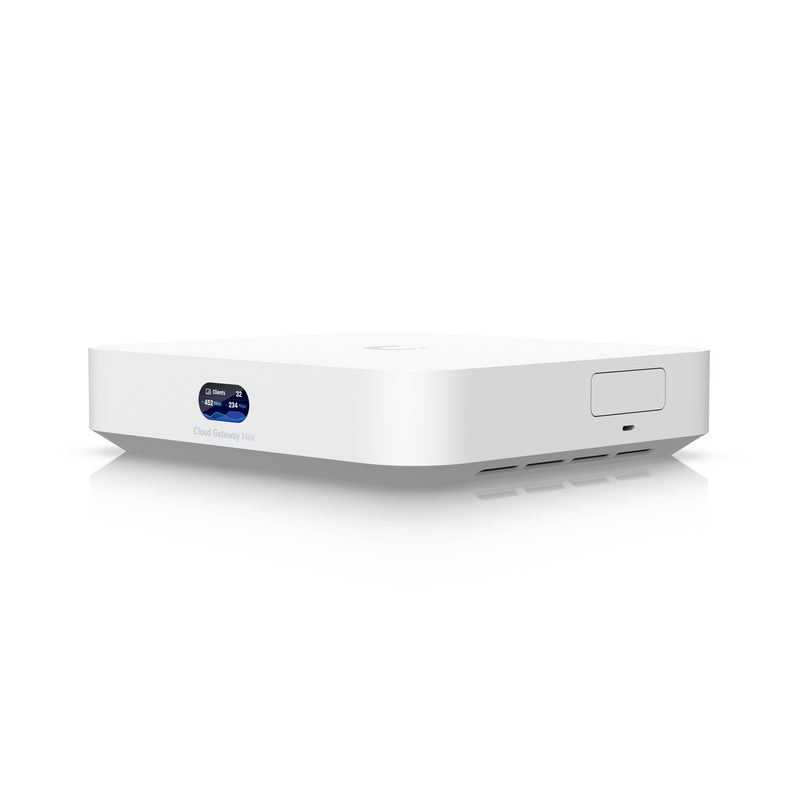

Router Ubiquiti UniFi Cloud Gateway Max - UCG-Max
Ubiquiti · UCG-MAX · EAN 0810084697122
sofort lieferbar
340,57 €inkl. MwSt., zzgl. Versand
Beschreibung
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.
Technische Daten
- SIM
- (1) Nano SIM (4FF) (1) eSIM
- Höhe
- 7,8 cm
- Tiefe
- 22,2 cm
- Breite
- 18,2 cm
- Length
- Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)
- Weight
- 125 g (4.4 oz)
- Gewicht
- 1,054 kg
- Mounting
- Desktop stand, wall, window mount (Included)
- Treatment
- Painting
- Dimensions
- 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
- Efficiency
- 82%
- Form Factor
- Compact desktop
- 2.5 GbE RJ45
- 5 (2.5G/1G/100M/10M)
- Compatibility
- UCG-Ultra UCG-Max UXG-Max
- Data In / PoE
- RJ45 shielded socket
- Input Current
- 1.5A max.
- Output Ripple
- 1% max.
- PoE Interface
- (1) PoE input
- Rated Voltage
- 100–240V AC at 50/60Hz
- Response Time
- <1 ns
- Certifications
- CE, FCC, IC, UL, UKCA, CCC, RoHS
- Hardware: Type
- (2) Embedded omni-directional cellular antennas
- Inrush Current
- 120A
- Output Voltage
- Type-C: 5V@ 5A PoE+: 48V@ 0.65A
- 4-pair Powering
- Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- Hardware: 5G SA
- Downlink 220 Mbps / Uplink 120 Mbps
- Line Regulation
- ≤ 5%
- Load Regulation
- ≤ 5%
- Managed Cameras
- (15) HD (8) 2K (5) 4K
- Hardware: 4G LTE
- Downlink 195 Mbps / Uplink 100 Mbps
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb)
- Surge Protection
- Difference and common mode
- Default WAN Ports
- (1) 2.5 GbE RJ45
- Hardware: Buttons
- (1) Factory reset
- Hardware: Display
- 1.14" status display
- Shunt Capacitance
- <5 pF data
- Enclosure Material
- Polycarbonate, silicone rubber
- Hardware: Category
- 5G RedCap
- IDS/IPS Throughput
- 2.3 Gbps
- Mechanical: Weight
- Device: 122 g (4.3 oz) Stand: 138 g (4.9 oz) Wall mount: 66 g ( 2.3 oz)
- Peak Pulse Current
- 36A (10/1000 μs) data
- Clamping Protection
- 11V data, 60V power
- Hardware: Processor
- Quad-core ARM® Cortex®-A53 at 1.5 GHz
- Managed Access Hubs
- 50
- Max. WAN Port Count
- 4
- Switching Frequency
- 65 kHz
- Hardware: Management
- Ethernet Bluetooth
- Max. Surge Discharge
- 1500A (8/20 μs) power
- Networking Interface
- (1) GbE RJ45 port 5G RedCap and LTE
- Software: Mobile App
- UniFi iOS™ and Android™: Version 10.17.2 and later
- Hardware: LCM Display
- 0.96" status display
- Hardware: NVR Storage
- Selectable NVMe SSD up to 2 TB
- Managed UniFi Devices
- 30+
- Grid overview: IDS/IPS
- 2.3 Gbps
- Hardware: Power Method
- USB type C (5V DC/5A)
- Hardware: Power Supply
- USB type C (5V DC/5A) (Adapter included)
- Device-Clamping Support
- Max. width 42.5 mm (1.6")
- Hardware: Max. TX Power
- 23 dBm
- Hardware: System Memory
- 3 GB
- Software: UniFi Network
- Version 10.4.57 and later
- Hardware: Certifications
- CE, FCC, IC, Anatel: 09004-24-08356, SRRC
- Hardware: Frequency Bands
- n1, n3, n5, n7, n8, n20, n26, n28, n40, n41, n77, n78
- Ambient Operating Humidity
- 10 to 95% noncondensing
- Hardware: Heat Dissipation
- 55 BTU/hr
- Mechanical: Mount Material
- Galvanized steel, silicone rubber
- Ambient Storage Temperature
- -30 to 70°C (-22 to 158° F)
- Hardware: ESD/EMP Protection
- Air: ± 8kV, contact: ± 4kV
- Hardware: Enclosure Material
- Polycarbonate
- Security: IDS/IPS Signatures
- 55,000+ with CyberSecure
- Simultaneous Users Connected
- 300+
- Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Mechanical: Enclosure Material
- Polycarbonate, aluminum alloy
- Grid overview: Max. Client Count
- 300
- Hardware: Max. Power Consumption
- 16.1W
- Grid overview: IDS/IPS Throughput
- 2.3 Gbps
- Hardware: Supported Voltage Range
- 100–240V AC
- Networking: MAC Address Table Size
- 2,000
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -10 to 40° C (14 to 104° F)
