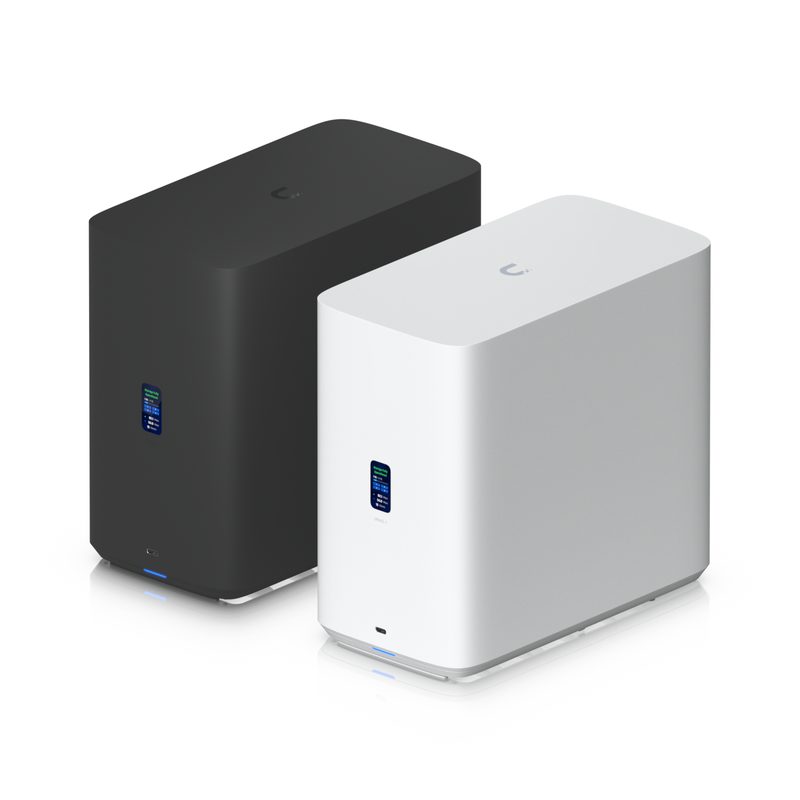

4-bay Ubiquiti UNAS-4-B black

Beschreibung

UniFi Network Attached Storage with (4) 2.5/3.5" HDD bays, (2) M.2 NVMe SSD cache slots, 2.5 GbE networking, USB-C connectivity, and an included PoE+++ adapter, all in a compact footprint.

Technische Daten

Weight

450 g (0.99 lb)

Capacity

1 TB

Dimensions

246 x 129 x 224.5 mm (9.7 x 5.1 x 8.8")

Form Factor

Desktop

Power Method

5V/12V input

Certifications

CE, FCC, IC

Expansion Port

(1) 5 Gbps USB-C

Rotation Speed

5400 RPM

Workload Rating

180 TB/year

Hardware: Memory

4 GB

Hardware: Weight

2.6 kg (5.7 lb)

Storage Capacity

(4) 2.5"/3.5" drive bays (2) M.2 NVMe bays

Hardware: Display

1.47" color LCM

Hardware: Processor

Quad-Core ARM® Cortex®-A55 at 1.7 GHz

Software: RAID Type

RAID 5 RAID 6 RAID 10

Hardware: Management

Ethernet

Management Interface

SATA 6 Gb/s

Networking Interface

(1) 2.5 GbE RJ45 (2.5G/1G/100M/10M)

Software: Mobile App

iOS™ version 10.32.1 and later Android™ version 10.35.1 and later

Software: RAID Group

Single

Software: UniFi Drive

Version 3.4.5 and later

Hardware: Power Method

PoE+++

Hardware: Power Supply

90W PoE+++ adapter (Included)

Hardware: RF Interface

Bluetooth 4.1

Max. Power Consumption

6.3W

Interface Transfer Rate

Gen4 4x

Supported Voltage Range

3.3V

Hardware: Certifications

FCC, CE, IC

Ambient Operating Humidity

5 to 95% noncondensing

Hardware: Enclosure Material

Polycarbonate

Ambient Operating Temperature

0 to 65° C (32 to 149° F)

Hardware: Hard Drive Capacity

(4) 2.5"/3.5" HDD support (2) M.2 NVMe SSD support

Hardware: Max. Power Consumption

90W

Mean Time Between Failure (MTBF)

1,000,000 h

Hardware: Ambient Operating Humidity

10 to 90% noncondensing

Hardware: Max. Power Budget for Drives

80W

Hardware: Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Software: Max. NVMe SSD Capacity Supported

2 TiB
