Ubiquiti UNVR-Instant Kit
Ubiquiti · UNVR-Instant-Kit · EAN 0810177164784
sofort lieferbar
759,96 €inkl. MwSt., zzgl. Versand
Gut geeignet für
- Büro & Unternehmen
- Homeoffice
Größere Stückzahl oder Projekt? Projektanfrage stellen — Antwort kommt vom Fachbetrieb, nicht vom Bot.
Beschreibung

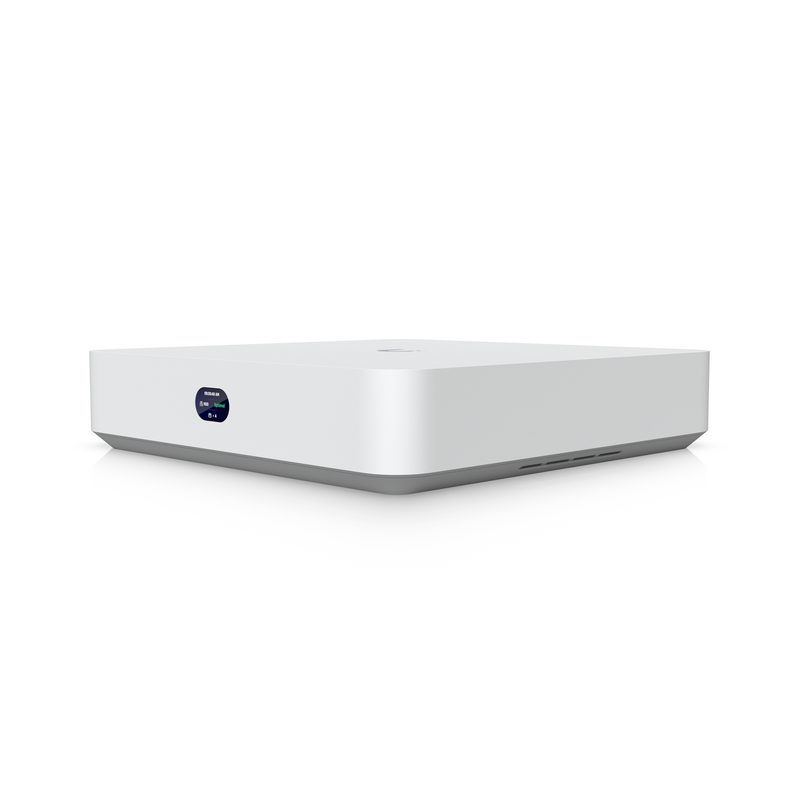

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K camera or (15) Full HD cameras.
Ähnliche Artikel
Technische Daten
- SIM
- (1) Nano SIM (4FF) (1) eSIM
- Höhe
- 30,0 cm
- Tiefe
- 49,0 cm
- Breite
- 12,5 cm
- Weight
- 450 g (0.99 lb)
- Gewicht
- 4,543 kg
- Capacity
- 1 TB
- Mounting
- Wall, Din rail mount (Included)
- Dimensions
- 220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
- Form Factor
- Compact Desktop
- HDD: Weight
- 0.45 kg (0.99 lb)
- Power Method
- 5V/12V input
- Hardware: PoE
- 15.4W
- PoE Interface
- (1) PoE input
- Certifications
- CE, FCC, IC
- Hardware: Type
- (2) Embedded omni-directional cellular antennas
- Rotation Speed
- 5400 RPM
- HDD: Dimensions
- 147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
- Hardware: 5G SA
- Downlink 220 Mbps / Uplink 120 Mbps
- Managed Cameras
- (15) HD (8) 2K (6) 4K
- Workload Rating
- 180 TB/year
- Hardware: 4G LTE
- Downlink 195 Mbps / Uplink 100 Mbps
- Hardware: Memory
- 4 GB
- Hardware: Weight
- 1.04 kg (2.3 lb)
- Storage Capacity
- (1) 3.5" drive bay
- HDD: Power Method
- 5V/12V input
- Hardware: Buttons
- (1) Factory reset
- Hardware: Display
- 1.14" screen
- Hardware: Category
- 5G RedCap
- Mechanical: Weight
- Device: 122 g (4.3 oz) Stand: 138 g (4.9 oz) Wall mount: 66 g ( 2.3 oz)
- HDD: Certifications
- FCC, CE, TUV, RCM, KC, BSMI
- HDD: Rotation Speed
- 5400 RPM
- Hardware: Processor
- Quad-core ARM® Cortex®-A55 at 1.7 GHz
- Managed Access Hubs
- 50
- Grid overview: Ports
- 7 GbE + 1 HDMI
- HDD: Workload Rating
- 180 TB/year
- Hardware: Management
- Ethernet Bluetooth
- Hardware: PoE Budget
- 40W
- Management Interface
- SATA 6 Gb/s
- Networking Interface
- (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport)
- Software: Mobile App
- UniFi iOS™ version 10.35.0 and later UniFi Android™ version 10.38.2 and later
- G5 Turret Ultra: Lens
- Fixed focal length
- HDD: Storage Capacity
- 1 TB
- G5 Turret Ultra: Audio
- Microphone
- Grid overview: Storage
- 1 3.5" HDD
- Hardware: Power Method
- Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
- Hardware: Power Supply
- AC/DC, Internal, 60W
- Management Application
- UniFi Protect UniFi Access UniFi Connect
- G5 Turret Ultra: Button
- (1) Factory reset
- G5 Turret Ultra: Sensor
- 1/2.4" CMOS
- G5 Turret Ultra: Weight
- 330 g (11.6 oz)
- Hardware: Max. TX Power
- 23 dBm
- Software: UniFi Network
- Version 10.4.57 and later
- Hardware: Certifications
- FCC, IC, CE, Electrical Safety, SRRC, Anatel: 06781-25-08356
- Hardware: Mount Material
- Polycarbonate
- G5 Turret Ultra: Mounting
- Wall, ceiling mount (Included) Junction box, arm mount (Optional)
- HDD: Management Interface
- SATA 6 Gb/s
- Hardware: Frequency Bands
- n1, n3, n5, n7, n8, n20, n26, n28, n40, n41, n77, n78
- Ambient Operating Humidity
- 5 to 95% noncondensing
- G5 Turret Ultra: Processor
- Dual-core Arm® Cortex®-A7 based chip
- HDD: Hard Disk Form Factor
- 3.5-inch
- Mechanical: Mount Material
- Galvanized steel, silicone rubber
- G5 Turret Ultra: Dimensions
- ⌀90 x 71.2 mm (⌀3.5 x 2.8")
- G5 Turret Ultra: Night Mode
- Built-in IR LED illumination and IR cut filter
- G5 Turret Ultra: Resolution
- 2K
- Hardware: Enclosure Material
- Polycarbonate
- Ambient Operating Temperature
- 0 to 65° C (32 to 149° F)
- G5 Turret Ultra: Cable Length
- 30 cm (1 ft)
- G5 Turret Ultra: Power Method
- PoE
- Hardware: Hard Drive Capacity
- (1) 3.5" HDD support
- G5 Turret Ultra: Field of View
- H: 102.4°, V: 54.9°, D: 120.6°
- Mechanical: Enclosure Material
- Polycarbonate, aluminum alloy
- G5 Turret Ultra: Cable Diameter
- 5 mm (0.2")
- G5 Turret Ultra: Certifications
- CE, FCC, IC
- G5 Turret Ultra: Image Settings
- Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
- G5 Turret Ultra: Mount Material
- Polycarbonate
- HDD: Ambient Operating Humidity
- 5 to 95% noncondensing
- G5 Turret Ultra: IR Night Vision
- 30 m (98 ft)
- G5 Turret Ultra: Jacket Material
- Polycarbonate
- G5 Turret Ultra: Max. Frame Rate
- 30 FPS
- G5 Turret Ultra: Weatherproofing
- IP66
- Hardware: Max. Power Consumption
- 9W
- Hardware: Voltage Range PoE Mode
- 44–57V
- Mean Time Between Failure (MTBF)
- 1,000,000 h
- G5 Turret Ultra: Tamper Resistance
- IK04
- HDD: Ambient Operating Temperature
- 0 to 65° C (32 to 149° F)
- Max. Simultaneous Viewport Streams
- 6 4K cameras
- G5 Turret Ultra: Enclosure Material
- Aluminum alloy, UV-stabilized polycarbonate
- Network Video Recorder Instant: PoE
- 15.4W
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- G5 Turret Ultra: Cable Connector Type
- RJ45
- G5 Turret Ultra: Networking Interface
- 10/100 MbE RJ45 port
- Grid overview: Managed Cameras (grid)
- 15 HD or 6 4K
- HDD: Mean Time Between Failure (MTBF)
- 1,000,000 h
- Hardware: Max. Power Budget for Drives
- 11W
- Network Video Recorder Instant: Memory
- 4 GB
- Network Video Recorder Instant: Weight
- 1.04 kg (2.3 lb)
- G5 Turret Ultra: Max. Power Consumption
- 4W
- Hardware: Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
- Network Video Recorder Instant: Display
- 1.14" screen
- G5 Turret Ultra: Supported Voltage Range
- 37—57V DC
- Network Video Recorder Instant: Mounting
- Wall, Din rail mount (Included)
- Network Video Recorder Instant: Processor
- Quad-core ARM® Cortex®-A55 at 1.7 GHz
- G5 Turret Ultra: Jacket Enclosure Material
- Thermoplastic elastomer, polycarbonate, silicone rubber
- Network Video Recorder Instant: Dimensions
- 220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
- Network Video Recorder Instant: Management
- Ethernet Bluetooth
- Network Video Recorder Instant: PoE Budget
- 40W
- G5 Turret Ultra: Ambient Operating Humidity
- 0 to 90% noncondensing
- Network Video Recorder Instant: Form Factor
- Compact Desktop
- G5 Turret Ultra: Jacket Enclosure Dimensions
- ⌀20 x 70.6 mm (0.8 x 2.8")
- Network Video Recorder Instant: Power Method
- Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
- Network Video Recorder Instant: Power Supply
- AC/DC, Internal, 60W
- G5 Turret Ultra: Ambient Operating Temperature
- -30 to 50° C (-22 to 122° F)
- Network Video Recorder Instant: Certifications
- FCC, IC, CE, Electrical Safety
- Network Video Recorder Instant: Mount Material
- Polycarbonate
- Network Video Recorder Instant: Managed Cameras
- (15) HD (8) 2K (6) 4K
- Network Video Recorder Instant: Storage Capacity
- (1) 3.5" drive bay
- Network Video Recorder Instant: Enclosure Materials
- Polycarbonate
- Network Video Recorder Instant: Hard Drive Capacity
- (1) 3.5" HDD support
- Network Video Recorder Instant: Managed Access Hubs
- 50
- Network Video Recorder Instant: Networking Interface
- (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport)
- Network Video Recorder Instant: Management Application
- UniFi Protect UniFi Access UniFi Connect
- Network Video Recorder Instant: Max. Power Consumption
- 9W
- Network Video Recorder Instant: Voltage Range PoE Mode
- 44–57V
- Network Video Recorder Instant: Ambient Operating Humidity
- 5 to 95% noncondensing
- Network Video Recorder Instant: Ambient Operating Temperatur
- 0 to 40° C (32 to 104° F)
- Network Video Recorder Instant: Max. Power Budget for Drives
- 11W
- Network Video Recorder Instant: Max. Simultaneous Viewport S
- 6 4K cameras
